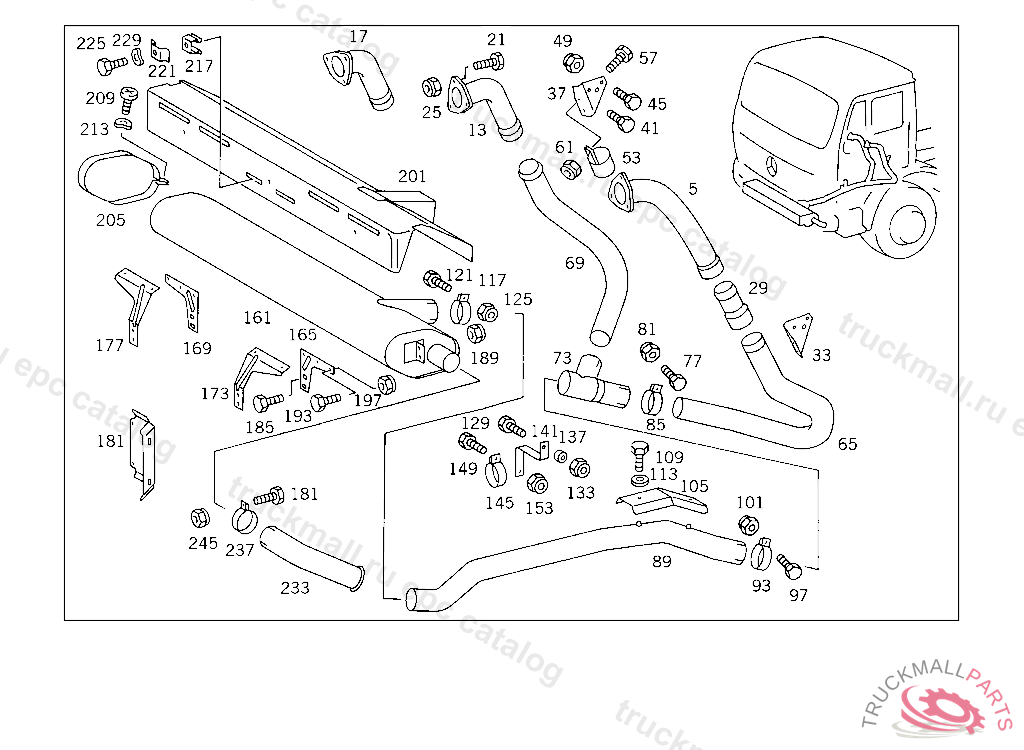

Поз.
Артикул
Описание
5
CONNECTOR LEFT
5
CONNECTOR LEFT
5
CONNECTOR , Replaced By: A3874902725
13
CONNECTOR , Replaced By: A3874902625
13
CONNECTOR RIGHT
17
CONNECTOR RIGHT
21
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
25
NUT CONNECTOR TO EXHAUST MANIFOLD
29
CONNECTOR INTERMEDIATE PIECE
33
BRACKET LEFT EXHAUST PIPE
37
BRACKET RIGHT EXHAUST PIPE
41
SCREW BRACKET TO SIDE MEMBER
41
SCREW , Replaced By: N304017010002
45
SCREW REAR EXHAUST PIPE TO MUFFLER
49
NUT STRAP TO BRACKET
49
NUT , Replaced By: N910113010000
53
CLAMP FRONT EXHAUST PIPE TO BRACKET,5 129244
57
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
57
SCREW , Replaced By: N304017008027
61
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
61
NUT , Replaced By: N913004008001
65
EXHAUST PIPE LEFT
69
EXHAUST PIPE RIGHT
73
FITTING REAR EXHAUST PIPE TO MUFFLER
77
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
77
SCREW , Replaced By: N304017008027
81
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
81
NUT , Replaced By: N913004008001
85
CLAMP INTERMEDIATE PIECE
89
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
93
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
93
CLAMP , Replaced By: N071555090502
97
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
97
SCREW , Replaced By: N304017008027
101
NUT , Replaced By: N913004008001
101
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
105
PROTECTIVE PLATE EXHAUST PIPE
109
SCREW , Replaced By: N304017008008
109
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
113
WASHER , Replaced By: N000125008443
113
WASHER EXHAUST MUFFLER TO STRAP
117
CLAMP , Replaced By: N071555094502
117
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
121
SCREW , Replaced By: N304017008027
121
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
125
NUT , Replaced By: N913004008001
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
129
SCREW BEARING BRACKET TO FRAME
133
NUT BEARING BRACKET TO SIDE MEMBER
137
SPACER TUBE BEARING BRACKET TO SIDE MEMBER
141
BRACKET , Replaced By: A3874929641
141
BRACKET BEARING BRACKET,5 153109
145
CLAMP , Replaced By: N071555090502
145
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
149
SCREW , Replaced By: N304017008027
149
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
153
NUT , Replaced By: N913004008001
153
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
EXHAUST MUFFLER FRONT, TRANSVERSE,5 004844
161
EXHAUST MUFFLER FRONT, TRANSVERSE,5 004844
165
BRACKET EXHAUST MUFFLER,LEFT
169
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
173
BRACKET EXHAUST MUFFLER,LEFT,5 381620
177
BRACKET EXHAUST MUFFLER,RIGHT,5 381620
181
BRACKET EXHAUST MUFFLER,5 381620
185
SCREW END PIECE TO EXHAUST PIPE M 10X25
189
NUT , Replaced By: N910113010000
189
NUT STRAP TO BRACKET
193
SCREW END PIECE TO EXHAUST PIPE M 10X25
197
NUT , Replaced By: N910113010000
197
NUT STRAP TO BRACKET
201
PROTECTIVE PLATE EXHAUST MUFFLER,5 004844
205
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
209
SCREW , Replaced By: A0029904212
209
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
213
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
213
SPRING WASHER , Replaced By: N000137008212
217
NUT RETAINER LICENSE PLATE TO BRACKET
217
NUT RETAINER , Replaced By: A0019906791
217
NUT RETAINER , Replaced By: A0009902291
221
BRACKET LICENSE PLATE
225
SCREW LICENSE PLATE TO BRACKET
225
SCREW , Replaced By: N304017006020
229
SPRING WASHER LICENSE PLATE TO BRACKET
233
REAR EXHAUST PIPE TAIL PIPE
237
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
237
CLAMP , Replaced By: N071555090502
245
NUT STRAP TO BRACKET
245
NUT , Replaced By: N910113010000
999
SCREW BRACKET TO SIDE MEMBER M 12X40
