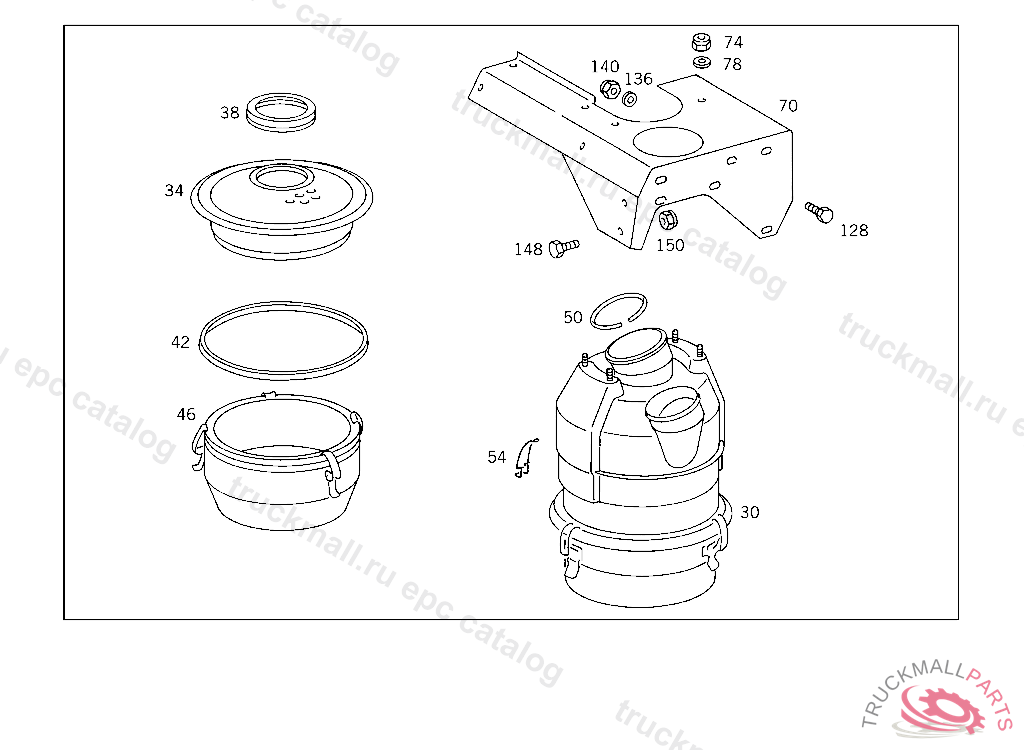

Поз.
Артикул
Описание
30
AIR CLEANER OIL BATH MANN & HUMMEL
30
AIR CLEANER OIL BATH MANN & HUMMEL
30
AIR CLEANER OIL BATH MANN & HUMMEL
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
34
FILTER ELEMENT
38
GASKET INSIDE
38
GASKET INSIDE
38
GASKET INSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
42
GASKET OUTSIDE
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
46
FILTER BOWL
50
SNAP RING DIA., 128 MM
50
SNAP RING DIA., 150 MM
54
FASTENER
54
FASTENERKNECHT
70
SUPPORT ADDITIONAL WORK ON FRAME
74
NUT , Replaced By: N910113014001
74
NUT BRACKET TO SIDE MEMBER
78
WASHER , Replaced By: N000125015019
78
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
128
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
128
SCREW BRACKET TO CAB CONSOLE,K 035197
128
SCREW , Replaced By: N308676014020
128
SCREW BRACKET TO SIDE MEMBER
136
WASHER , Replaced By: A3859900440
136
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
136
WASHER , Replaced By: A3379900440
136
WASHER SUPPORT TO SIDE MEMBER
136
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
136
WASHER , Replaced By: N000125015019
140
NUT , Replaced By: N910113014001
140
NUT BRACKET TO SIDE MEMBER
148
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
148
SCREW CONSOLE TO SIDE MEMBER
148
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
148
SCREW , Replaced By: N308676012026
150
NUT SUPPORT TO SIDE MEMBER
999
SUPPORT AIR CLEANER,4 785295
999
SUPPORT AIR CLEANER
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET AIR CLEANER,FRONT RIGHT
999
BRACKET AIR CLEANER,FRONT LEFT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
MUFFLER AIR CLEANER
999
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
999
BRACKET AIR CLEANER,REAR RIGHT
999
BRACKET AIR CLEANER,REAR
999
BRACKET AIR CLEANER,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
CONSOLE CAB SUSPENSION,REAR RIGHT,5 742148
999
CONSOLE FRAME
999
STRAP AIR CLEANER
999
SUPPORT , Replaced By: A6565200133
999
SUPPORT , Replaced By: A6565200033
999
STRAP AIR CLEANER TO SUPPORT
999
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
RING WARNING INDICATOR
999
AIR CLEANER
999
FILTER BOWL
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,4 938205
999
AIR CLEANER , Replaced By: A0140948802
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER ,4 256253
999
AIR CLEANER
999
AIR CLEANER ,4 256254
999
AIR CLEANER ,4 256254
999
WARNING INDICATOR AIR CLEANER
