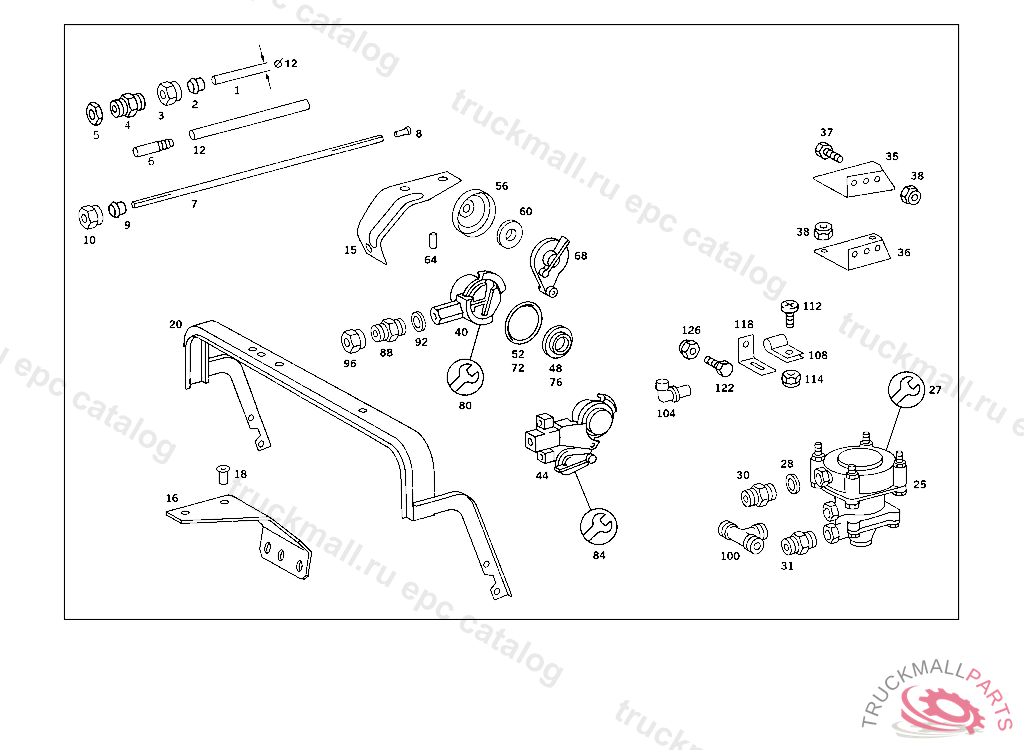

Поз.
Артикул
Описание
1
LINE12 MM, ORDER BY THE METER4 691315
2
SEAL CONE LINE CONNECTION
2
GLAND , Replaced By: A0019901967
3
UNION NUT LINE CONNECTION
3
UNION NUT LINE CONNECTION, Replaced By: N000000006239
4
FITTING
5
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
5
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
5
NUT , Replaced By: N913004008001
5
NUT BRACKET TO SIDE MEMBER
6
FITTING
6
FITTING , Replaced By: N915062006000
7
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
7
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
SLEEVE LINE CONNECTION
8
SLEEVE , Replaced By: N915062006000
9
GLAND LINE CONNECTION
10
UNION NUT LINE CONNECTION
12
INSULATING HOSE COLOR CODE BLUE,YB227219
12
INSULATING HOSE
15
BRACKET AT FRAME
16
BRACKET AT FRAME
18
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
18
RIVET , Replaced By: N910005012026
20
SUPPORT
20
SUPPORT
25
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313505
25
BRAKE VALVE TRAILER CONTROL VALVE BOSCH,4 375193 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
25
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
25
BRAKE VALVE , Replaced By: A0014313705
27
REPAIR KITTO 001 431 48 05,4 375193
27
REPAIR KIT VALVE KIT TO 001 431 37 05,4 375193
27
REPAIR KITTO 001 431 37 05,4 375193
27
REPAIR KIT , Replaced By: A0024306581
27
REPAIR KITTO 001 431 34 05,4 375193
27
BRAKE VALVE SEAL RING TO 001 431 18 05,4 412020
27
REPAIR KIT , Replaced By: A0004304606
28
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
30
FITTING DELIVERY LINE TO PUMP
31
FITTING RELAY VALVE,CONNECTION: "40",5 359430
31
FITTING , Replaced By: A0029979572
35
BRACKET ,4 667210
35
BRACKET , Replaced By: A3894300110
35
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3894300010
36
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300710
36
BRACKET TRAILER CONTROL VALVE
36
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3874300710
37
SCREW PIPE CLAMP
37
SCREW , Replaced By: N304017008021
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
NUT , Replaced By: N913004008001
40
BRAKE LINE COUPLING SUPPLY, RED
40
BRAKE LINE COUPLING SUPPLY, RED
40
BRAKE LINE COUPLING SUPPLY, RED
40
BRAKE LINE COUPLING , Replaced By: A0004297830
40
BRAKE LINE COUPLING SUPPLY, RED
44
BRAKE LINE COUPLING BRAKE,YELLOW KNORR
44
BRAKE LINE COUPLING BRAKE,YELLOW GRAU
44
BRAKE LINE COUPLING BRAKE,YELLOW WESTINGHOUSE
44
BRAKE LINE COUPLING , Replaced By: A0004297930
44
BRAKE LINE COUPLING BRAKE,YELLOW BOSCH
48
BRAKE LINE COUPLINGTO 000 429 38 30
48
SEAL RING , Replaced By: A0004296930
52
SEAL RINGTO 000 429 38 30
52
SEAL RINGTO 000 429 38 30
56
COVER"WABCO", NOT USED
56
COVERTO 000 429 51 30,4 434235
60
SEAL RING"WABCO"
64
GROOVED PINTO 000 429 51 30,4 434235
68
COVERTO 000 429 49 30
72
SEAL RING"GRAU"
76
SEAL RING"WABCO"
76
SEAL RING , Replaced By: A0004292184
80
REPAIR KIT , TO 000 429 49 304 434235
80
REPAIR KIT , TO 000 429 49 304 434235
80
REPAIR KITTO 000 429 63 30
80
REPAIR KITTO 000 429 37 30
84
REPAIR KIT"KNORR"
88
FITTING BRAKE LINE COUPLING TO BRACKET
92
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
96
NUT BRACKET TO SIDE MEMBER
100
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
100
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
100
FITTING , Replaced By: A0009909970
104
FITTING (PARTS KIT),LINE RUPTURE
104
FITTING , Replaced By: A0029906171
104
FITTING BRAKE HOSE TO COMPRESSED AIR LINE
108
CLAMP LINE MOUNTING
108
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
108
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
108
CLAMP ,K 147121, Replaced By: N000000000319
108
CLAMP , Replaced By: N916016008200
108
CLAMP , Replaced By: A3604300143
112
SCREW CAP TO BRACKET
114
NUT PUMP TO BRACKET
114
NUT , Replaced By: N913004006001
118
BRACKET , Replaced By: A3812950440
118
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
118
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
118
BRACKET , Replaced By: A3812950440
122
SCREW PIPE CLAMP
122
SCREW , Replaced By: N304017008021
126
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
126
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
126
NUT , Replaced By: N913004008001
999
PLUG FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
