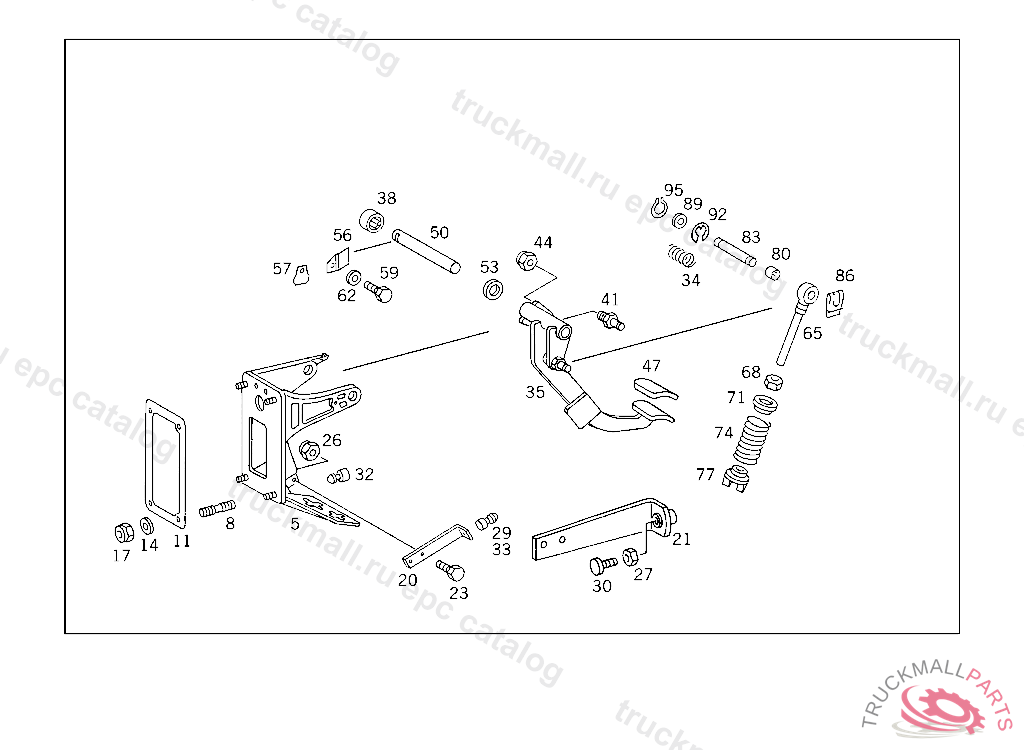

Поз.
Артикул
Описание
5
BEARING BRACKET BRAKE PEDAL
5
BEARING BRACKET , Replaced By: A6882947001
8
STUD
11
GASKET , Replaced By: A6452940280
14
WASHER TRAILER PLUG SOCKET TO BRACKET
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
STOP PEDAL BEARING BRACKET, 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
21
STOP CLUTCH PEDAL
23
SCREW CLAMP TO BRACKET
26
NUT , Replaced By: N913004006001
27
NUT BATTERY CASE
29
STOP CLUTCH PEDAL AND BRAKE PEDAL
29
STOP BRAKE PEDAL
30
STOP CLUTCH PEDAL STOP
32
STOP
32
STOP CLUTCH PEDAL,1B 849449
32
STOP
34
SPRING CLUTCH PEDAL RELEASE SPRING
35
PEDAL CLUTCH PEDAL, 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
35
PEDAL CLUTCH PEDAL
35
PEDAL CLUTCH PEDAL, NO.8650I.......I I I II .......INO.9985I I I II I
35
PEDAL , NOT USED
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING
41
PIN CLUTCH PEDAL39 MM(M10) TO A6952907216
41
PIN
44
NUT AIR CLEANER ELEMENT
47
PAD , Replaced By: A1072910182
47
PAD CLUTCH PEDAL
50
PIN CLUTCH PEDAL TO BEARING BRACKET
53
WASHER CLUTCH PEDAL TO BEARING BRACKET
56
LOCK , Replaced By: A6732920073
56
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
57
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
59
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
62
WASHER PLUG SOCKET TO BRACKET
65
ROD OVER-CENTER ACTING SPRING
65
ROD OVER-CENTER ACTING SPRING
68
NUT GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
71
SPRING RETAINER SPRING TO PUSH ROD
74
SPRING CLUTCH PEDAL RESET,B 974885
74
SPRING SPRING TO PUSH ROD
77
SPRING RETAINER SPRING TO PUSH ROD
80
NEEDLE BEARING JOINT TO PIN
80
NEEDLE BEARING JOINT TO PIN
80
NEEDLE BEARING JOINT TO PIN
83
PIN PUSH ROD TO CLUTCH PEDAL52 MM,B 910380
83
PIN , Replaced By: A3842917074
86
CLIP SPRING TO PUSH ROD
89
WASHER BRACKET TO FENDER BRACKET
92
LOCK RING PUSH ROD TO PEDAL
95
LOCK RING PUSH ROD TO PEDAL
