Поз.
Артикул
Описание

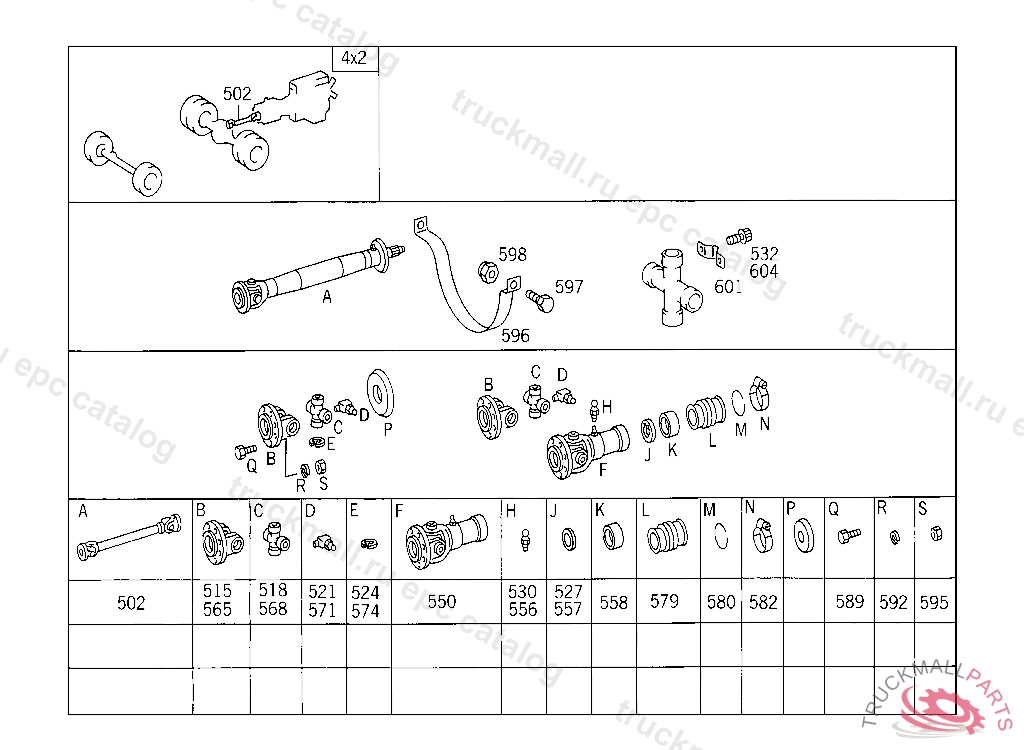

502
PROPELLER SHAFT FROM TRANSMISSION TO REAR AXLE 983 MM
515
DRIVE FLANGE
518
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
521
GREASE NIPPLE
521
GREASE NIPPLE
524
SNAP RING2.500 MM
524
SNAP RING2.750 MM
524
SNAP RING2.550 MM
524
SNAP RING2.525 MM
524
SNAP RING2.700 MM
524
SNAP RING2.700 MM
524
SNAP RING2.750 MM
524
SNAP RING2.550 MM
524
SNAP RING2.500 MM
524
SNAP RING2.600 MM
524
SNAP RING2.625 MM
524
SNAP RING2.600 MM
524
SNAP RING2.650 MM
524
SNAP RING2.725 MM
524
SNAP RING2.575 MM
524
SNAP RING2.650 MM
524
SNAP RING2.675 MM
550
UNIVERSAL JOINT YOKE KRUPP
556
GREASE NIPPLE INTERMEDIATE LEVER
557
SEAL RING , PROPELLER SHAFT WITH BOOT
558
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
565
DRIVE FLANGE
568
UNIVERSAL JOINT CROSS WITH BUSHINGS, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
571
GREASE NIPPLE
571
GREASE NIPPLE
574
SNAP RING2.500 MM
574
SNAP RING2.750 MM
574
SNAP RING2.700 MM
574
SNAP RING2.700 MM
574
SNAP RING2.525 MM
574
SNAP RING2.550 MM
574
SNAP RING2.750 MM
574
SNAP RING2.550 MM
574
SNAP RING2.500 MM
574
SNAP RING2.600 MM
574
SNAP RING2.625 MM
574
SNAP RING2.600 MM
574
SNAP RING2.650 MM
574
SNAP RING2.725 MM
574
SNAP RING2.675 MM
574
SNAP RING2.650 MM
574
SNAP RING2.575 MM
579
BOOT
580
WIRE RING , WITH BOOT
582
LOOM TIE. CLAMP
582
CLAMP , WITH BOOT
582
CLAMP
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
589
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
589
SCREW , Replaced By: A0079901001
592
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
595
NUT , Replaced By: N308673010001
596
REBOUND STRAP
597
SCREW , Replaced By: N910105010009
598
NUT EXHAUST PIPE TO SIDE MEMBER
