Поз.
Артикул
Описание
5

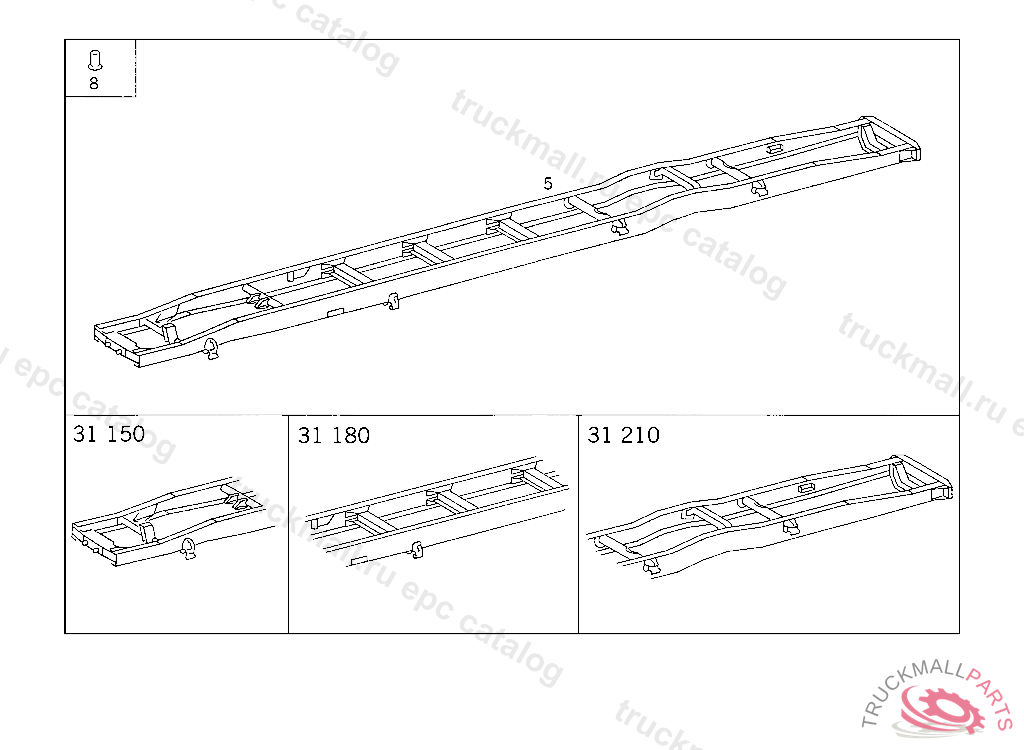

FRAME , 390.001,031 A 099199 390.002,032 A 099380 390.012 A 099416 390.013 A 099299
5
FRAME , 390.001,031 A 099200 390.002,032 A 099381 390.012 A 099417 390.013 A 099300
8
RIVET10X34 MM
8
RIVET12 X 28 MM
8
RIVET SUPPORT TO FRAME
8
RIVET12X42 MM
8
RIVET14X36 MM
8
RIVET10X38 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET14 X 50 MM
8
RIVET12X34 MM
8
RIVET CROSS MEMBER TO RIGHT SIDE MEMBER 12X30 MM
8
RIVET CONSOLE TO SIDE MEMBER
8
RIVET MOUNTING PARTS 14X39 MM
8
RIVET12X36 MM
8
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
8
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
