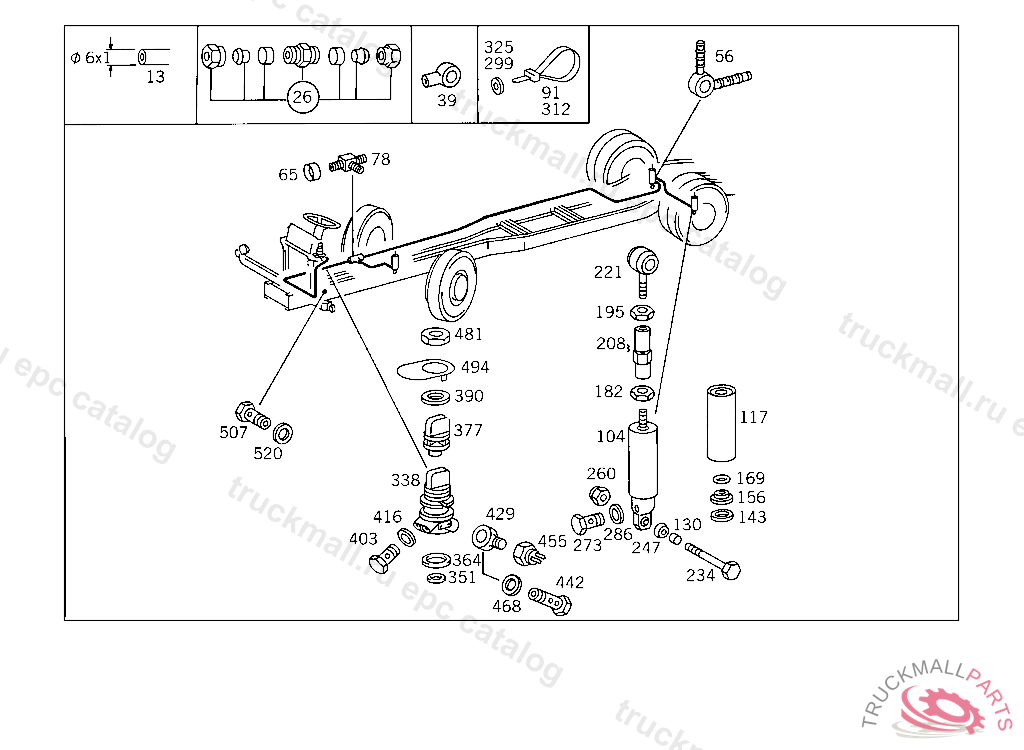

Поз.
Артикул
Описание
13
PLASTIC PIPE RISING PIPE 4X6 MM
13
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
26
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
39
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
56
BANJO UNION
56
BANJO UNION HOSE WIDTH, / I.D., 4/4/10 MM
65
SLEEVE LEAK LINE
78
DISTRIBUTOR HOSE WIDTH, 6 MM
91
LOOM TIE LINE MOUNTING 280 MM
104
CYLINDER REAR AXLE PNEUMATIC SUSPENSION
117
CUP
130
MOUNTING
143
SEAL RING
156
SEAL RING
169
SEAL RING
182
NUT
182
NUT , Replaced By: N304035008001
195
NUT , Replaced By: N304035008002
195
NUT L.H. THREAD
208
TURNBUCKLE LEVER TO AIR SPRING VALVE
221
BALL SOCKET LEVER TO AIR SPRING VALVE
234
SCREW VALVE TO BRACKET
247
SPACER TUBE POWER CYLINDER TO BEARING BRACKET
247
RING , Replaced By: A4046150417
247
BUSHING CYLINDER TO REAR AXLE BEARING BRACKET
260
NUT , Replaced By: N913004008001
273
HOLLOW SCREW LINE CONNECTION
286
SEAL RING LINE CONNECTION
299
WASHER BRACKET TO LEFT SIDE MEMBER
312
LOOM TIE LINE MOUNTING
325
WASHER EXHAUST MUFFLER TO STRAP
325
WASHER , Replaced By: N000125008443
338
VALVE (3/2-WAY SOLENOID VALVE)
351
SEAL RING
364
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
364
SEAL RING
364
SEAL RING , Replaced By: A0029971640
377
ACTUATING PARTTO 003 997 24 36,003 997 31 36
390
SEAL RING
403
HOLLOW SCREW LINE CONNECTION
416
SEAL RING LINE CONNECTION
429
BANJO UNION STOP LIGHT
442
HOLLOW SCREW LINE CONNECTION
455
SWITCH RETARDER
468
SEAL RING LINE CONNECTION
481
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
494
GUIDE SIGN VALVE TO CAB
507
HOLLOW SCREW HEATING CONNECTION
520
SEAL RING LINE CONNECTION
999
ROD
999
ROD
