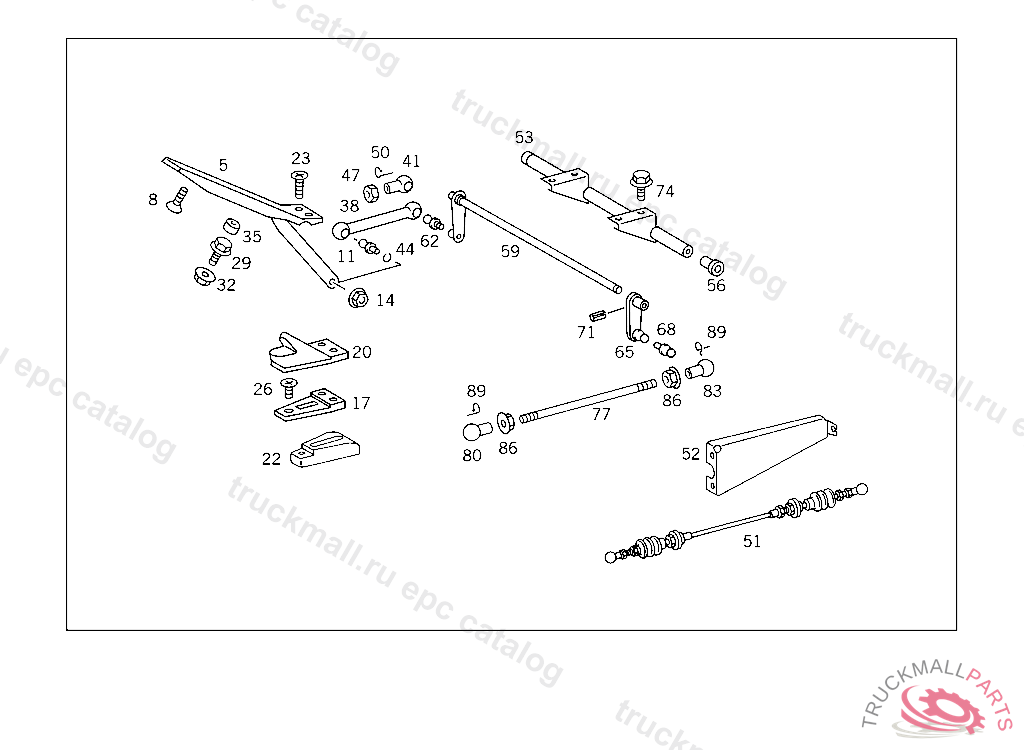

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL , Replaced By: A6243000304
8
SCREW ACCELERATOR PEDAL
11
BALL PIVOT LOAD SENSOR
11
BALL PIVOT ACCELERATOR PEDAL,4 859026
14
NUT AT FILTER BRACKET
14
NUT PUMP TO BRACKET
17
SHIM ACCELERATOR PEDAL
20
BOOT ACCELERATOR PEDAL
20
BOOT ACCELERATOR PEDAL,4 859957
22
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
SCREW ACCELERATOR PEDAL TO CAB M 6 X 20
29
SCREW , Replaced By: N910142008007
29
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
32
NUT BATTERY MOUNTING
32
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
35
STOP ACCELERATOR PEDAL
38
ROD FROM ACCELERATOR PEDAL TO FRONT INTERMEDIATE LEVER
41
BALL SOCKET PULL ROD TO LEVER
44
SNAP RING SPRING-LOADED PUSH ROD
47
NUT BALL SOCKET TO ROD
47
NUT BALL PIVOT TO LEVER
50
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
53
BEARING TUBE CONTROL SHAFT,5 151032
53
BEARING TUBE CONTROL SHAFT,5 151031
56
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
59
SHAFT CONTROL,5 151031
59
SHAFT CONTROL,5 151032
62
BALL PIVOT
65
LEVER (CONTROL LEVER)
68
BALL PIVOT CONTROL SHAFT
71
CLAMPING SLEEVE , Replaced By: N308752004001
74
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
74
SCREW , Replaced By: N304017008016
77
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE
80
BALL SOCKET ROD TO BALL PIVOT
83
BALL SOCKET ROD TO BALL PIVOT
86
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
86
NUT BATTERY MOUNTING
89
SECURING CLIP. CIRCLIP
999
ACCELERATOR PEDAL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6243000304
999
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 859957, Replaced By: A6153010084
