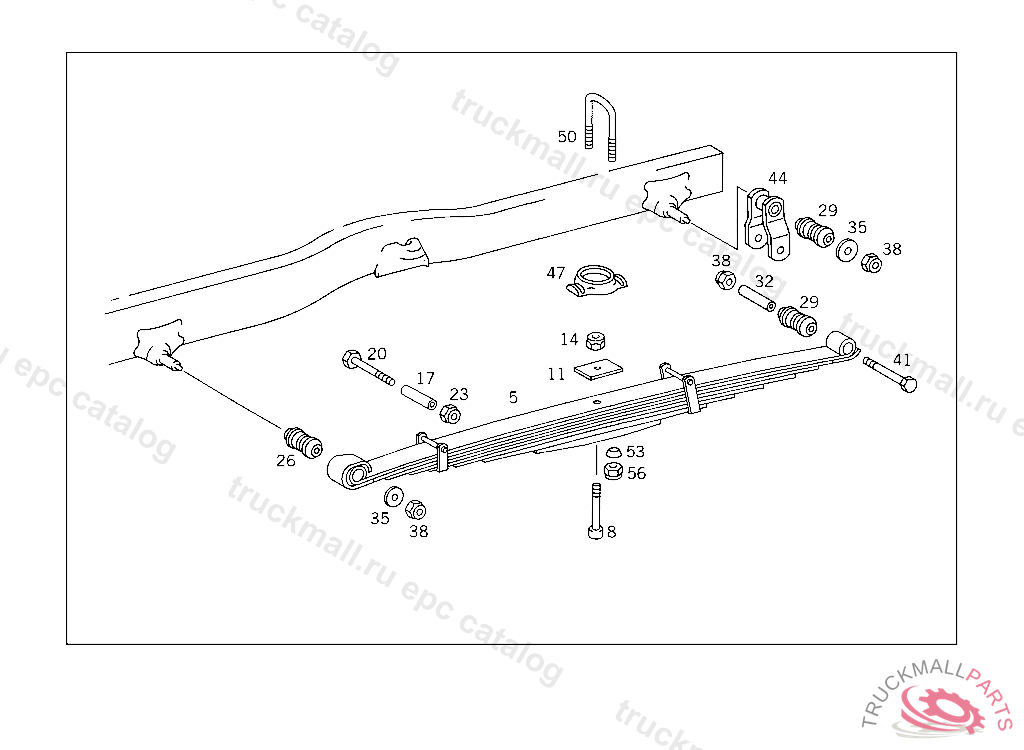

Поз.
Артикул
Описание
5
REAR SPRING 8-LEAF
8
SPRING BOLT REAR SPRING M10X150
11
SPACER
14
NUT SPRING BOLT
17
SPACER TUBE , Replaced By: A0003213253
20
SCREW SPRING CLAMP TO SPRING LEAF NO.4,NO.7,M 8X95
23
NUT SPRING CLAMP TO SPRING LEAF
26
RUBBER BUFFER SPRING EYE,FRONT
29
RUBBER MOUNTING REAR SPRING TO SPRING SHACKLE AND TO SPRING REAR BRACKET
32
SPACER TUBE REAR SPRING TO SPRING SHACKLE
35
WASHER REAR SPRING & SPRING SHACKLE TO REAR SPRING BRACKET
38
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
38
NUT , Replaced By: N910113018004
41
SCREW REAR SPRING TO SPRING SHACKLE
44
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
47
PLATE FRONT SPRINGS TO FRONT AXLE
50
U-BOLT REAR SPRING TO REAR AXLE M 16X1,5X210MM
53
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
56
NUT REAR AXLE TO TO REAR SPRINGS,B 825283
