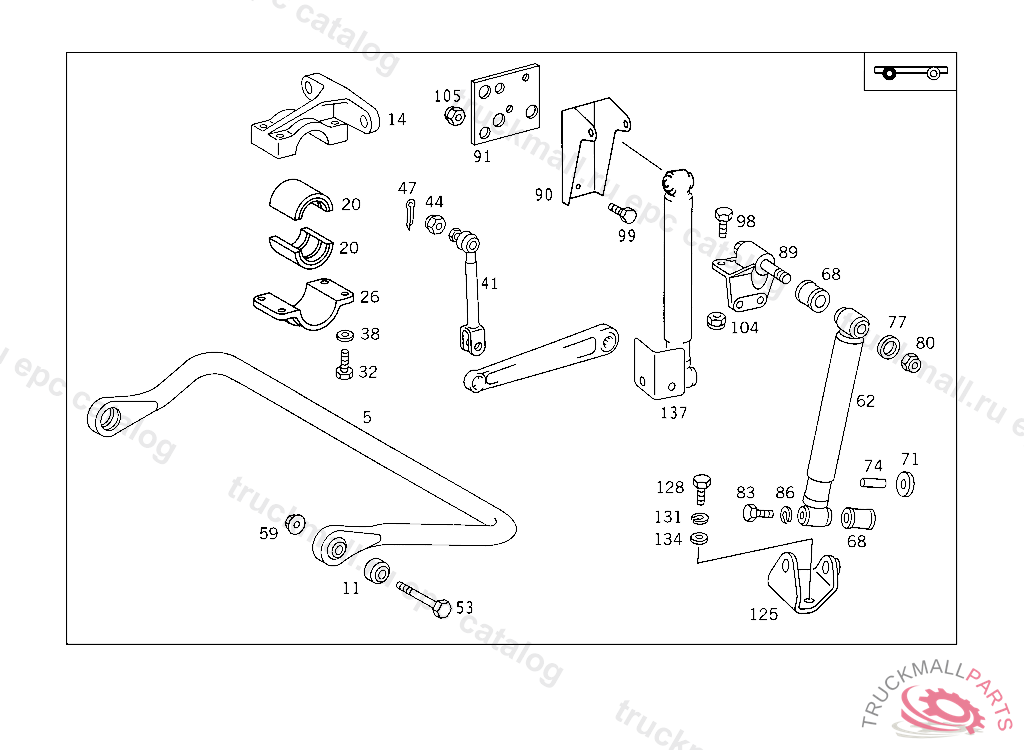

Поз.
Артикул
Описание
5
TORSION BAR STABILIZER,D 012296
11
BUSHING
14
BEARING BRACKET HOLE SPACING: 88 MM
20
GROMMET STABILIZER
20
GROMMET STABILIZER
26
BEARING SHELL TORSION BAR BEARING
32
SCREW (ARTICULATED ROD)
38
WASHER STRUT TO CONSOLE
41
ROD (ARTICULATED ROD) TRW,D 012296
41
ROD (ARTICULATED ROD) NAKATA,D 012296
44
NUT
47
COTTER PIN
53
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
59
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
62
SHOCK ABSORBER ,B 967304
68
RUBBER MOUNTINGTO 384 323 72 00
71
SPACER TUBETO 384 323 72 00
74
BUSHINGTO 384 323 72 00
74
BUSHINGTO 384 323 72 00
77
WASHER , Replaced By: A6249900040
77
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
80
NUT , Replaced By: N910113016001
83
SCREW SHOCK ABSORBER TO BRACKET
86
LOCK WASHERROCKINGER TYP 59 G140,59 G150
89
CONSOLE TOP
98
SCREW GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS M 12X1,5X35
104
NUT SUPPORT TO SIDE MEMBER
125
CONSOLE FRONT SHOCK ABSORBERS
128
SCREW , Replaced By: N000961012051
131
LOCK WASHER FITTING TO BRACKET
134
WASHER SUPPORT TO FRAME,D 127794
999
WASHER
