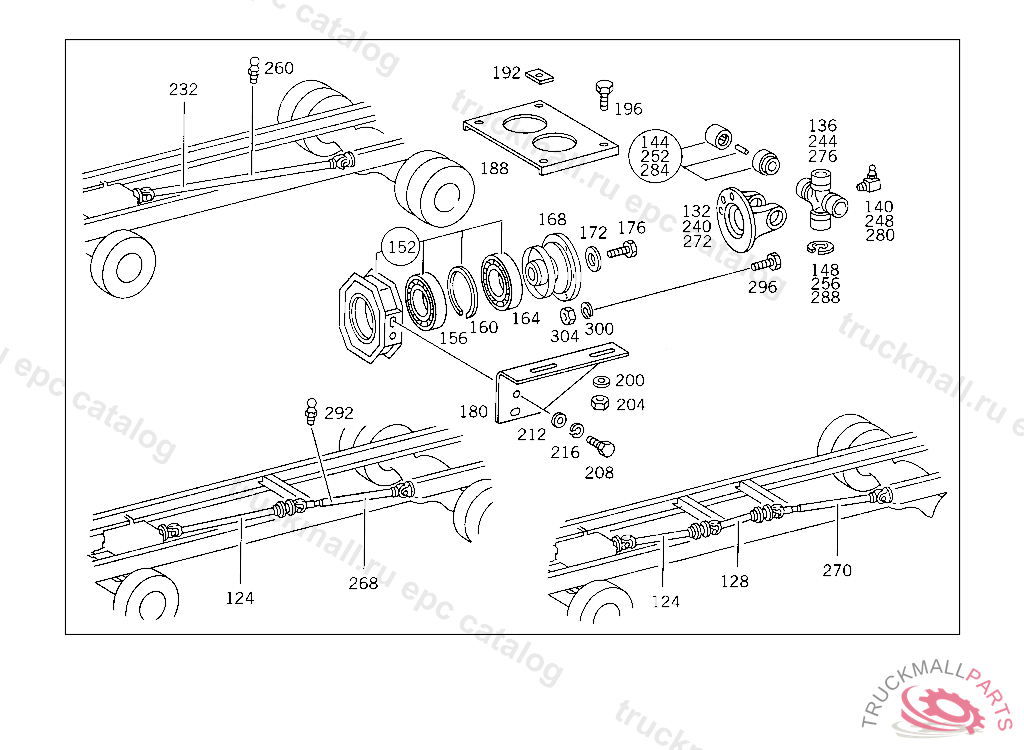

Поз.
Артикул
Описание
124
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING I TO PROPELLER SHAFT BEARING II 1145 MM
132
DRIVE FLANGE
136
UNIVERSAL JOINT CROSS WITH BUSHINGS
136
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
140
GREASE NIPPLE
144
BEARING BUSHING ,4 839394
144
BEARING BUSHING ,4 839394
148
LOCK AS REQUIRED 1.90 MM
148
LOCK AS REQUIRED 1.85 MM
148
LOCK AS REQUIRED 1.80 MM
148
LOCK RING AS REQUIRED 1.75 MM
148
LOCK AS REQUIRED 1.70 MM
148
LOCK AS REQUIRED 1.65 MM
148
LOCK , Replaced By: A0069940641
152
INTERMEDIATE BEARING PROPELLER SHAFT BEARING, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
152
INTERMEDIATE BEARING , Replaced By: A9734100022, +002A9734110052
152
INTERMEDIATE BEARING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK, Replaced By: A3854101722, +002A3854130461, +004N000933010105
152
INTERMEDIATE BEARING , Replaced By: A3854100922
152
REPAIR KIT , Replaced By: A3854100122
156
BALL BEARING , Replaced By: A0079818525
160
SNAP RING , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
164
PROTECTIVE CAP , INTERMEDIATE BEARING, BALL BEARING WITH LOCK
168
CENTERING FLANGE , Replaced By: A3854110045
172
THRUST WASHER FOLLOWER FLANGE TO PROPELLER SHAFT
176
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
180
BRACKET PROPELLER SHAFT BEARING,RIGHT
180
BRACKET PROPELLER SHAFT BEARING I,LEFT
188
REINFORCEMENT PROPELLER SHAFT BEARING
192
REINFORCEMENT MOUNTING USED FOR FRAME CONNECTION PARTS
196
SCREW BRACKET TO CROSS MEMBER M 10X40
196
SCREW , Replaced By: N308676010023
196
SCREW , Replaced By: N000961010031
200
WASHER STRUT TO CROSS MEMBER
200
WASHER , Replaced By: N007349010007
204
NUT BRACKET TO CROSS MEMBER
208
SCREW END PIECE TO EXHAUST PIPE M 10X25
208
SCREW BRACKET TO FRAME SIDE MEMBER
212
WASHER STRUT TO CROSS MEMBER
212
WASHER , Replaced By: N007349010007
216
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
268
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE I 1300 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
268
PROPELLER SHAFT FROM PROPELLER SHAFT BEARING TO REAR AXLE I 1250 MM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
272
DRIVE FLANGE
276
UNIVERSAL JOINT CROSS WITH BUSHINGS
276
UNIVERSAL JOINT CROSS , Replaced By: A9734100031
280
GREASE NIPPLE
284
BEARING BUSHING ,4 839394
284
BEARING BUSHING ,4 839394
288
LOCK AS REQUIRED 1.90 MM
288
LOCK AS REQUIRED 1.85 MM
288
LOCK AS REQUIRED 1.80 MM
288
LOCK RING AS REQUIRED 1.75 MM
288
LOCK AS REQUIRED 1.70 MM
288
LOCK AS REQUIRED 1.65 MM
292
GREASE NIPPLE
292
GREASE NIPPLE , Replaced By: N071412008102
296
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
296
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
296
SCREW , Replaced By: A3609903001
300
LOCK WASHER FITTING TO BRACKET
300
LOCK WASHER FITTING TO BRACKET
304
NUT PROPELLER SHAFT TO COUPLING FLANGE
304
NUT PROPELLER SHAFT TO COUPLING FLANGE
999
FLANGE PROPELLER SHAFT BEARING
999
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING WITH LOCK
999
PROTECTIVE CAP FOLLOWER FLANGE, INTERMEDIATE BEARING, BALL BEARING IN RUBBER SEAT
999
BRACKET PROPELLER SHAFT BEARING I,RIGHT
999
BRACKET PROPELLER SHAFT BEARING,LEFT
999
SPACER WASHER PROPELLER SHAFT BEARING
