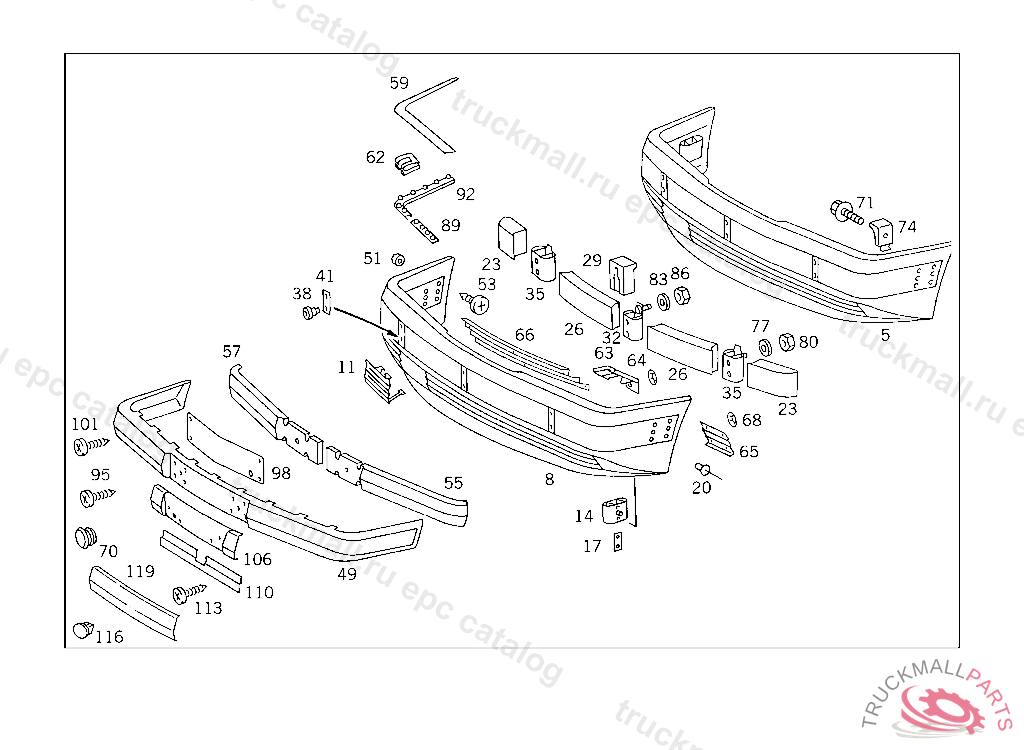

Поз.
Артикул
Описание
5
FRONT BUMPER FACE BAR WITH COVERING,OPEN VERSION, TO BE PAINTED PRIOR TO INSTALLATION FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
8
PANELLING FRONT BUMPER,OPEN VERSION, TO BE PAINTED PRIOR TO INSTALLATION FOR COLOR NUMBERS AND PAINT CODES USED FOR OUTSIDE PARTS,SEE FOOTNOTE 901
11
ESCUTCHEON TOWING BRACKET COVER FLAP
14
BRACKET ON BUMPER COVERING,LATERAL
17
PLATE ON BUMPER COVERING,LATERAL
20
RIVET BRACKET AND PLATE TO BUMPER COVERING
20
RIVET BRACKET AND PLATE TO BUMPER COVERING
23
ENERGY-ABSORBING UNIT FRONT INSIDE
26
ENERGY-ABSORBING UNIT FRONT INSIDE
29
ENERGY-ABSORBING UNIT FRONT CENTRAL INSIDE
32
BRACKET FRONT CENTRAL
35
BRACKET FRONT LEFT AND RIGHT
38
SCREW BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
41
PLATE BRACKET AND ENERGY-ABSORBING UNIT TO BUMPER COVERING
49
RAIL FRONT BUMPER
51
THREADED CHUCK PROTECTIVE RAIL TO PANELLING
53
TAPPING SCREW CONTROL UNIT TO FIRE WALL
53
SCREW , Replaced By: N000000000521
55
ENERGY-ABSORBING UNIT FRONT OUTSIDE LEFT
57
ENERGY-ABSORBING UNIT FRONT OUTSIDE RIGHT
59
BAFFLE PLATE BUMPER PANELLING,LEFT
59
BAFFLE PLATE BUMPER PANELLING,RIGHT
62
HOLDDOWN CLIP ORNAMENTAL COVER TO BUMPER
63
INTERMEDIATE PIECE ON PANELLING,CONNECTION TO LEFT FRONT AIR BAFFLE,FOR ENGINE OIL COOLING
64
LOCK. CLIP LICENSE PLATE FLAP
65
BUMPER JOINT COVER ONLY FOR USE WITH AIR CONDITIONER
65
BUMPER JOINT COVER BUMPER PANELLING,RIGHT
66
BUMPER JOINT COVER BUMPER PANELLING,CENTRAL
68
LOCK. CLIP LICENSE PLATE FLAP
70
GROMMET TO LOCK TEMPERATURE SENSOR PASSAGE
71
SCREW BUMPER TO WHEELHOUSE ANGLE
74
ANGLE LATERAL BUMPER TO BODY
77
WASHER BUMPER TO CROSS MEMBER
80
NUT
83
WASHER
86
NUT BALL PIVOT TO LEVER
89
SEAL PANELLING BELOW LIGHTING UNIT
92
SEAL RIGHT
92
SEAL LEFT
95
SHEET METAL SCREW , Replaced By: N007981004233
98
BUMPER JOINT COVER
101
SCREW LICENSE PLATE TO BUMPER
106
BUMPER JOINT COVER FRONT BUMPER WITH LICENSE PLATE, UP TO END OF MODEL YEAR '93
110
RAIL
113
SCREW MOUNTING RAIL TO BUMPER
113
FILL.HD.SCR. W DECOUPLER FOR SWITZERLAND
116
PLUG COVERING TO FRONT BUMPER
119
BUMPER JOINT COVER FRONT BUMPER LESS LICENSE PLATE, UP TO END OF MODEL YEAR '93
