Поз.
Артикул
Описание

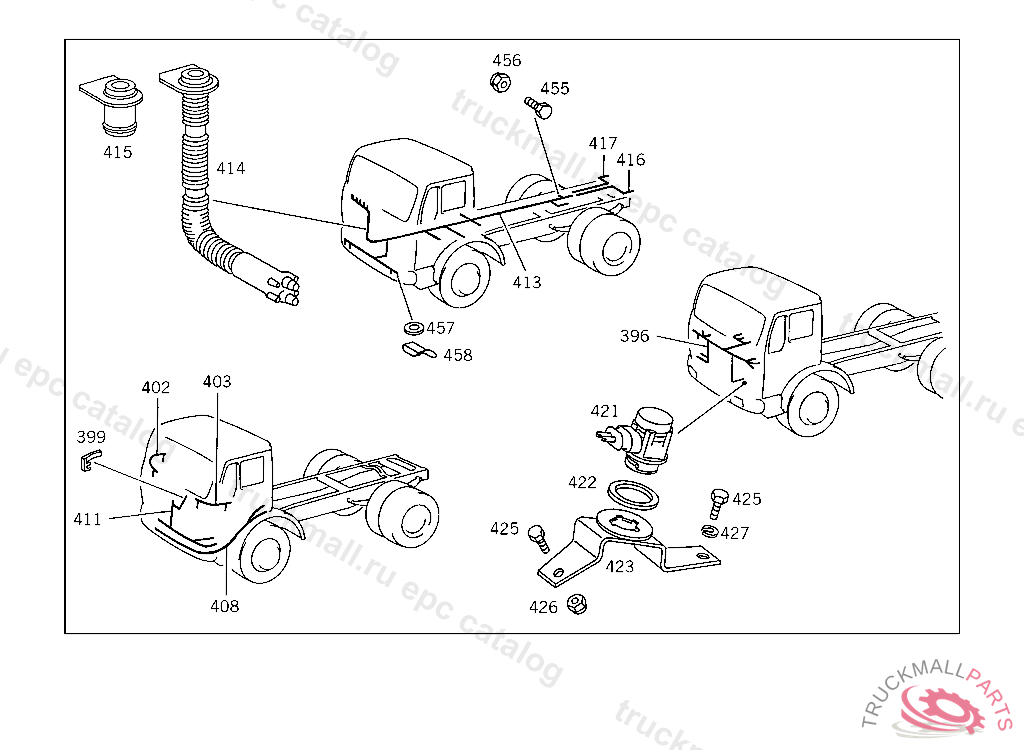

402
ELECTRIC CABLE DOOR PLUG CONNECTION,HEATED OUTSIDE REARVIEW MIRROR,WINDOW REGULATOR MOTOR
403
ELECTRIC CABLE DOOR PLUG CONNECTION,HEATED OUTSIDE REARVIEW MIRROR,ENTRANCE LIGHT
408
ELECTRIC CABLE FOR FRAME MOUNTED CABLE HARNESS LEADING TO ENGINE
411
ELECTRIC CABLE FROM CONTROL UNIT TO WATER VALVE & TO FUSE BOX,5 1802665 257827
411
ELECTRIC CABLE FROM CONTROL UNIT TO WATER VALVE & TO FUSE BOX,5 1802665 257827
413
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR,5 180265
413
CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR,5 180266
414
INSULATING HOSE CABLE PASSAGE
416
CABLE HARNESS TAIL LAMP
417
CABLE HARNESS RIGHT TAIL LAMP
455
SCREW BRACKET TO CROSS CONNECTION STRUT
455
SCREW , Replaced By: N304017008034
456
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT , Replaced By: N913004008001
457
WASHER BRACKET TO LEFT SIDE MEMBER
457
WASHER , Replaced By: N009021008213
458
CLAMP BRANCH-OFF TO HEADLAMPS
999
DIAGRAM PAPER SET100 PIECES
999
PLUG HOUSING 4-POLE, MODULE "V"
999
SOCKETTO 003 542 46 16,99 16
999
LENS
999
GROMMET BATTERY CASE
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
BOOT
999
GROMMET BATTERY CASE
