Поз.
Артикул
Описание

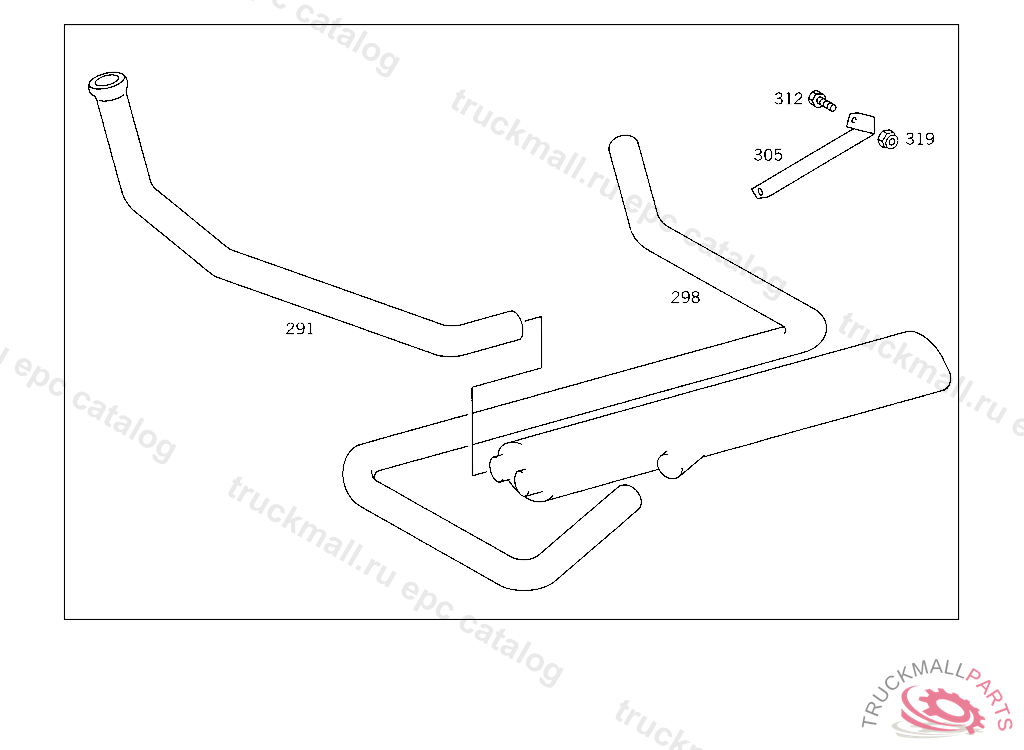

291
EXHAUST PIPE
291
EXHAUST PIPE
298
REAR EXHAUST PIPE
305
BRACKET REAR EXHAUST PIPE
312
SCREW BRACKET TO CROSS CONNECTION STRUT
312
SCREW , Replaced By: N304017008034
319
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
319
NUT , Replaced By: N913004008001
999
SLEEVE FEED
999
SLEEVE , Replaced By: N915062008000
999
CONNECTOR RIGHT,177-LITER
999
EXHAUST PIPE
999
SUPPORT FUEL TANK TO FRAME
999
SUPPORT FUEL TANK TO FRAME
999
SUPPORT FUEL TANK TO FRAME
999
BRACKET , Replaced By: A6205240340
999
SUPPORT REAR
999
SEAL RING
999
PLUG SOCKET. PLUG HOUSING
999
PLUG SOCKET. CONTAKT SOCKET
999
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
999
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
999
CORE BUNDLE SEALING1.0-2.5 MM2
