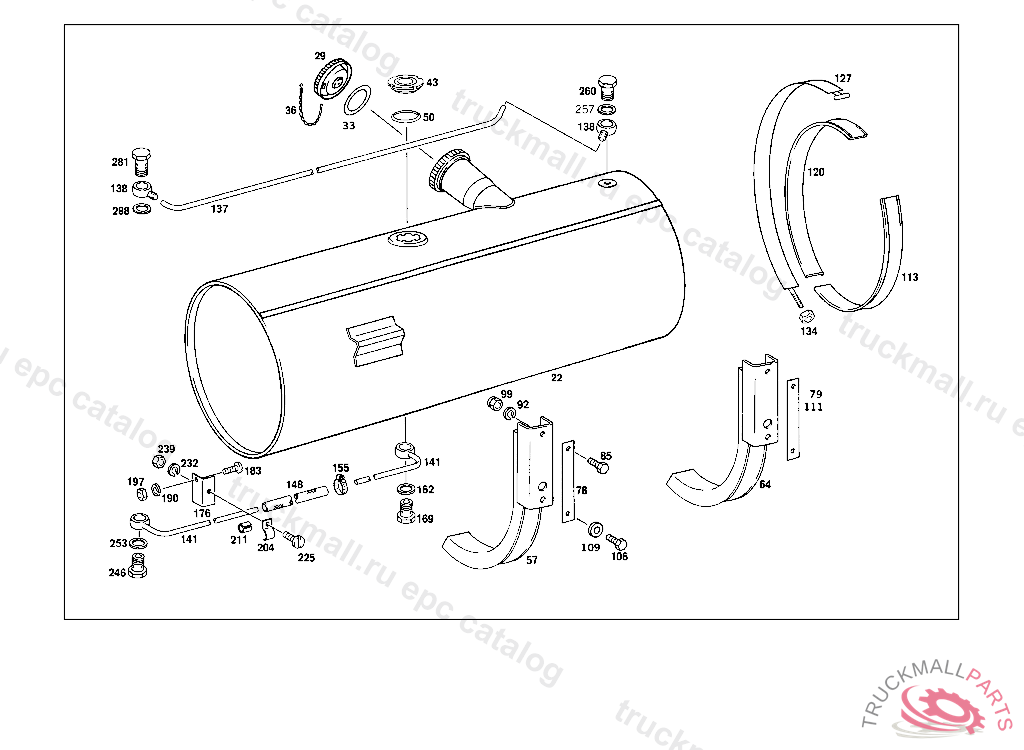

Поз.
Артикул
Описание
22
FUEL TANK , Replaced By: A3874701301
22
FUEL TANK , Replaced By: A3554700101
22
FUEL TANK200 L
22
FUEL TANK , Replaced By: A3874701301
29
FILLER CAP , Replaced By: A0004717930
29
FILLER CAP , Replaced By: A0004700305
29
FILLER CAP , Replaced By: A0004700305
29
FILLER CAP , Replaced By: A0004700305
29
FILLER CAP
33
SEAL RING
36
CHAIN FILLER CAP
43
FILLER CAP IN PLACE OF FUEL GAUGE SENDER UNIT
50
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
50
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
57
SUPPORT , Replaced By: A3874703342
57
SUPPORT , Replaced By: A3874703342
57
SUPPORT FUEL TANK TO FRAME
64
SUPPORT FUEL TANK
64
SUPPORT FUEL TANK TO FRAME
64
SUPPORT , Replaced By: A3934700242
64
SUPPORT FUEL TANK TO FRAME
64
SUPPORT , Replaced By: A3874703142
64
SUPPORT FUEL TANK TO FRAME
64
SUPPORT , Replaced By: A3874703242
78
SHIM SUPPORT TO SIDE MEMBER
79
SHIM SUPPORT TO SIDE MEMBER
85
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
85
SCREW , Replaced By: N308676014020
85
SCREW AT CROSS MEMBER
85
SCREW BRACKET TO SIDE MEMBER
85
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
92
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
99
NUT BRACKET TO SIDE MEMBER
99
NUT , Replaced By: N910113014001
106
SCREW BRACKET TO CAB CONSOLE,K 035197
106
SCREW , Replaced By: N308676014020
106
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
106
SCREW , Replaced By: N000961014064
106
SCREW BRACKET TO SIDE MEMBER
109
WASHER SPARE WHEEL CARRIER
111
BASE SUPPORT TO SIDE MEMBER
113
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
120
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
127
STRAP ,5 149419, Replaced By: A6204700340, +001N000934012022
127
STRAP FUEL TANK TO CONSOLE,5 149420
127
STRAP FUEL TANK TO CONSOLE,5 149420
134
NUT STRAP TO SUPPORT,5 149419
134
NUT STRAP TO SUPPORT
134
NUT STRAP TO SUPPORT
137
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
138
BANJO UNION , Replaced By: N000000000363
141
LINE FUEL COMPENSATING
148
HOSE LEAK LINE
155
CLAMP , Replaced By: N916017011001
155
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
162
SEAL RING FUEL LINE TO FEED PUMP
169
HOLLOW SCREW , Replaced By: N915036010108
169
HOLLOW SCREW FUEL LINE TO FEED PUMP
176
BRACKET FUEL LINE
183
SCREW , Replaced By: N007985005175
183
SCREW HOOK TO BRACKET
190
LOCK WASHER BRACKET TO STEERING COLUMN END
197
NUT , Replaced By: N304032005005
197
NUT IN CASE OF SUBSEQUENT INSTALLATION
197
NUT TWO-WAY VALVE TO BRACKET
204
CLAMP , Replaced By: A3129952420
204
CLAMP , Replaced By: A1109950401
204
CLAMP FUEL LINE TO BRACKET
211
RUBBER PAD FUEL LINE TO BRACKET
225
SCREW , Replaced By: N007985005175
225
SCREW HOOK TO BRACKET
232
LOCK WASHER BRACKET TO STEERING COLUMN END
239
NUT , Replaced By: N304032005005
239
NUT IN CASE OF SUBSEQUENT INSTALLATION
239
NUT TWO-WAY VALVE TO BRACKET
246
HOLLOW SCREW , Replaced By: N915036010108
246
HOLLOW SCREW FUEL LINE TO FEED PUMP
253
SEAL RING FUEL LINE TO FEED PUMP
257
SEAL RING FUEL LINE TO FEED PUMP
260
HOLLOW SCREW , Replaced By: N915036010108
260
HOLLOW SCREW FUEL LINE TO FEED PUMP
281
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
288
SEAL RING FUEL LINE TO FEED PUMP
