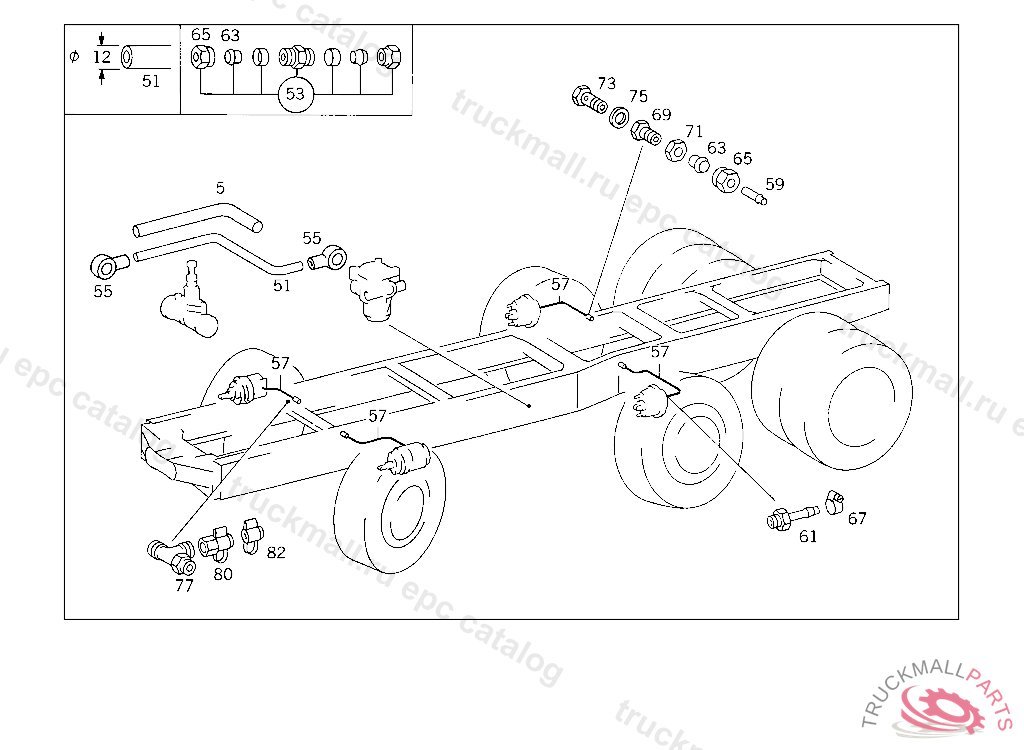

Поз.
Артикул
Описание
5
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
51
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
51
HOSE , Replaced By: A0009872827
53
FITTING (PARTS KIT),LINE RUPTURE
55
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
57
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
57
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
59
FITTING DIAPHRAGM CYLINDER,CONNECTION:
61
FITTING DIAPHRAGM CYLINDER,CONNECTION:
63
SEAL CONE LINE CONNECTION
63
GLAND , Replaced By: A0019901967
65
UNION NUT LINE CONNECTION
65
UNION NUT LINE CONNECTION, Replaced By: N000000006239
67
CLAMP HOSE TO FITTING AND TO OIL TANK
69
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
69
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
71
NUT BRACKET TO SIDE MEMBER
73
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
75
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
T-FITTING LEFT AND RIGHT BRAKE HOSES
80
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
80
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
80
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
80
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
80
TEST CONNECTION
82
PLUG
999
BRAKE LINE COUPLING , Replaced By: A0004299630
999
BRAKE LINE COUPLING , Replaced By: A0004299730
999
REPAIR KIT , Replaced By: A0004300207
999
RESERVOIR , Replaced By: A0014327501
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293244
999
REPAIR KIT , Replaced By: A0004201071
999
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
999
FITTING , Replaced By: A0029905971
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
BRACKET , Replaced By: A3604293140
999
ANGLE , Replaced By: A6214320017
999
ANGLE , Replaced By: A6214320117
999
BANJO UNION , Replaced By: N915052009009
