Поз.
Артикул
Описание

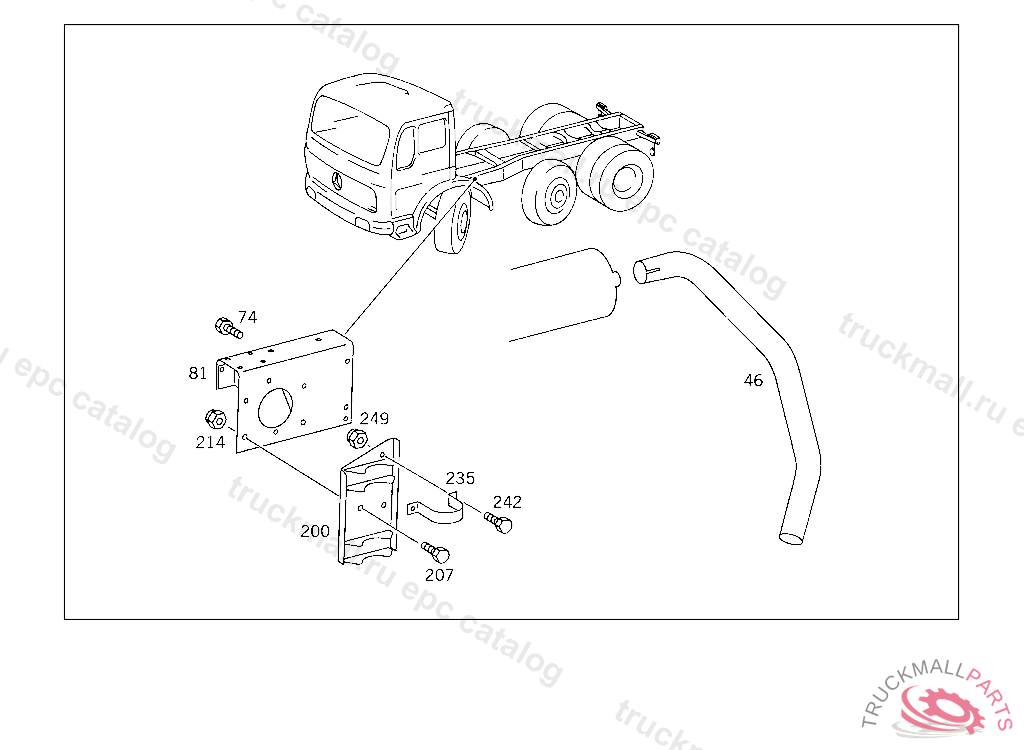

46
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
74
SCREW BRACKET TO FRAME SIDE MEMBER
74
SCREW SUPPORT TO FRAME M 14X32,5 129244
81
CONSOLE SUPPORT TO FRAME SIDE MEMBER
200
BRACKET EXHAUST PIPE TO CONSOLE
200
BRACKET EXHAUST PIPE TO CONSOLE
207
SCREW BRACKET TO SIDE MEMBER
207
SCREW END PIECE TO EXHAUST PIPE M 10X25
207
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
207
SCREW , Replaced By: N308676014020
214
NUT STRAP TO BRACKET
214
NUT , Replaced By: N910113010000
214
NUT BRACKET TO SIDE MEMBER
214
NUT , Replaced By: N910113014001
235
CLAMP EXHAUST PIPE TO BRACKET
235
CLAMP EXHAUST PIPE TO BRACKET
242
SCREW END PIECE TO EXHAUST PIPE M 10X25
249
NUT STRAP TO BRACKET
249
NUT , Replaced By: N910113010000
999
FLAP (RAIN DEFLECTOR), DISCONTINUED,PART IS NO LONGER REQUIRED
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET LEFT
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
EXHAUST MUFFLER CENTRAL
999
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET PARTICLE FILTER
999
SPACER TUBE , Replaced By: A3140720253
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,5 193594
999
REAR EXHAUST PIPE (TAIL PIPE),5 129244
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET VERTICAL TAIL PIPE BEHIND CAB
999
REAR EXHAUST PIPE ,5 193594
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO CAB MOUNTING CONSOLE
999
BRACKET ,5 535799, Replaced By: A6204925341
999
REAR EXHAUST PIPE , WITH PARKING BRAKE VALVE IN INSTRUMENT PANEL
999
REAR EXHAUST PIPE , Replaced By: A6204902121
999
PROTECTIVE PLATE REAR EXHAUST PIPE
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART, 015 5 006740 016 5 005657 017 5 007849 111 4 946456 112 4 947214 113 4 948529 116 4 965407 117 4 9463785 129244
999
EXHAUST PIPE FRONT,REAR RIGHT PART, 015 5 006740 016 5 005657 017 5 007849 111 4 946456 112 4 947214 113 4 948529 116 4 965407 117 4 9463785 129244
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,LEFT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 193595
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 193595
999
SUPPORT TAIL PIPE ON THE RIGHT
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET REAR EXHAUST PIPE
999
BRACKET , Replaced By: A6555240040
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE LEFT
999
BRACKET , Replaced By: A6204925341
999
REAR EXHAUST PIPE ,5 193595
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 193595
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE RIGHT,5 129244
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT,5 193595
999
BRACKET , Replaced By: A6524920741
999
BRACKET REAR EXHAUST PIPE TO DAMPING PAD,5 193595
999
REAR EXHAUST PIPE ,5 193594
999
BRACKET REAR EXHAUST PIPE,5 193595
999
REAR EXHAUST PIPE ,5 153311
999
REAR EXHAUST PIPE ,5 193594
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827815
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT,5 193595
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,5 193595
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,5 125493
999
BRACKET AT SUPPORT,5 125493
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT,5 149102
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
999
BRACKET REAR EXHAUST PIPE TO FRAME
999
BRACKET AT SIDE MEMBER,5 149102
999
BRACKET AT SIDE MEMBER,5 149102
999
REAR EXHAUST PIPE , WITH PARKING BRAKE VALVE IN INSTRUMENT PANEL
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT,5 149102
999
BRACKET TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
REAR EXHAUST PIPE TAIL PIPE,5 535799
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE , NOT USED
999
EXHAUST PIPE , NOT USED
999
EXHAUST PIPE , NOT USED
999
EXHAUST PIPE , NOT USED
999
PROTECTIVE PLATE (HEAT SHIELD), NOT USED
999
FRONT EXHAUST PIPE
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE TAIL PIPE,5 439561
999
BRACKET , Replaced By: A6244920741
999
REAR EXHAUST PIPE
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A6554926405
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE (TAIL PIPE)
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG
999
REAR EXHAUST PIPE SHORT
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: N304017008039
999
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
