Поз.
Артикул
Описание

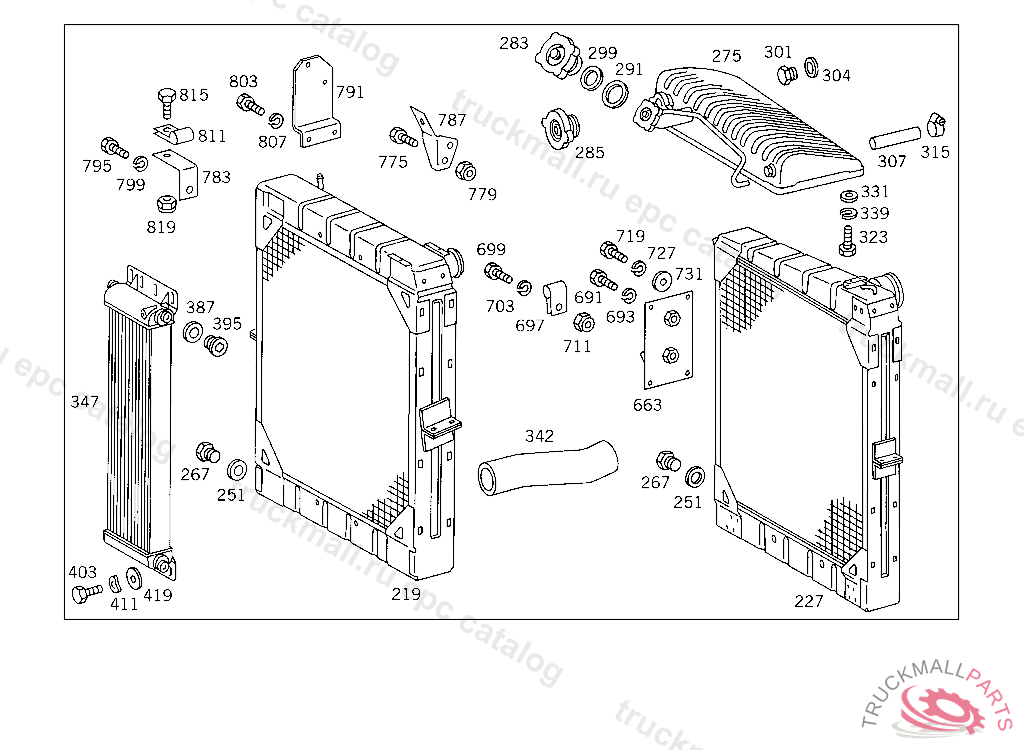

219
RADIATOR WATER
219
RADIATOR LESS TANK
219
RADIATOR , Replaced By: A3875002903
227
RADIATOR WATER
251
SEAL RING FUEL LINE TO FEED PUMP
267
SCREW PLUG WATER DRAIN
275
TANK ON RADIATOR
275
TANK ON RADIATOR
283
RADIATOR CAP FILLER NECK
283
RADIATOR CAP FILLER NECK
285
RADIATOR CAP CENTRAL
285
RADIATOR CAP CENTRAL
291
GASKET O.D., 52 MM
299
GASKET O.D., 37 MM
301
SCREW PLUG WATER DRAIN
304
SEAL RING FUEL LINE TO FEED PUMP
307
HOSE OVERFLOW, EXPANSION TANK
315
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
315
CLAMP , Replaced By: N916017011001
323
SCREW , Replaced By: N304017008016
323
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
331
WASHER , Replaced By: N000125008443
331
WASHER EXHAUST MUFFLER TO STRAP
339
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
342
HOSE FROM RADIATOR TO WATER PUMP,5 193595
347
RADIATOR OIL,5 360279
347
RADIATOR OIL COOLER,5 188037
387
SEAL RING FUEL LINE TO FEED PUMP
387
SEAL RING
395
SCREW PLUG , Replaced By: N000908014009
395
SCREW PLUGTO 000 553 03 05,000 553 18 05,
403
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
403
SCREW , Replaced By: N304017008016
411
SPRING WASHER SHIFTING CYLINDER TO YOKE
419
WASHER , Replaced By: N009021008213
419
WASHER BRACKET TO LEFT SIDE MEMBER
663
BRACKET OIL LINE
691
SCREW , Replaced By: N304017006016
691
SCREW PUMP TO BRACKET
691
SCREW COVER PLATE TO BRACKET
691
SCREW COVER PLATE TO BRACKET
693
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
697
CLAMP OIL FILLER PIPE TO BRACKET
697
CLAMP FEED LINE TO THERMOSTAT
697
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
699
SCREW COVER PLATE TO BRACKET
699
SCREW PUMP TO BRACKET
699
SCREW , Replaced By: N304017006016
699
SCREW , Replaced By: N304017006020
699
SCREW LICENSE PLATE TO BRACKET
703
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
711
NUT PUMP TO BRACKET
711
NUT , Replaced By: N913004006001
719
SCREW COVER PLATE TO BRACKET
727
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
731
WASHER COMPRESSED AIR LINE TO BRACKET
731
WASHER , Replaced By: N009021006208
775
SCREW END PIECE TO EXHAUST PIPE M 10X25
779
NUT STRAP TO BRACKET
779
NUT , Replaced By: N910113010000
783
BRACKET LINE MOUNTING
787
BRACKET RADIATOR
791
BRACKET RADIATOR
795
SCREW BRACKET TO ENGINE
795
SCREW , Replaced By: N000933016082
799
LOCK WASHERROCKINGER TYP 59 G140,59 G150
803
SCREW PIPE CLAMP
803
SCREW , Replaced By: N304017008021
807
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
811
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
815
SCREW , Replaced By: N304017006020
815
SCREW LICENSE PLATE TO BRACKET
819
NUT , Replaced By: N913004006001
819
NUT PUMP TO BRACKET
999
PLUG CONNECTOR
999
NUT OIL TANK TO BRACKET
999
NUT , Replaced By: N913002006009
999
SCREW LEVER TO ENGINE CONTROL SHAFT
999
PIPE OIL LINE CONNECTION TO OIL COOLER
999
PIPE , Replaced By: A6242604885
999
PIPE , Replaced By: A6242604885
999
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
999
PIPE , Replaced By: A0005516456, +002A0019901167, +002N915017018100
999
FAN SHROUD RADIATOR
999
BRACKET OIL LINE TO RADIATOR
999
SCREW PLUG , Replaced By: N007604014101
999
BANJO UNION OIL LINE TO TRANSMISSION, NOT USED
999
SCREW , Replaced By: N910105006023
999
RADIATOR
999
RADIATOR , Replaced By: A0005001103
999
CLAMP , Replaced By: N916017011000
