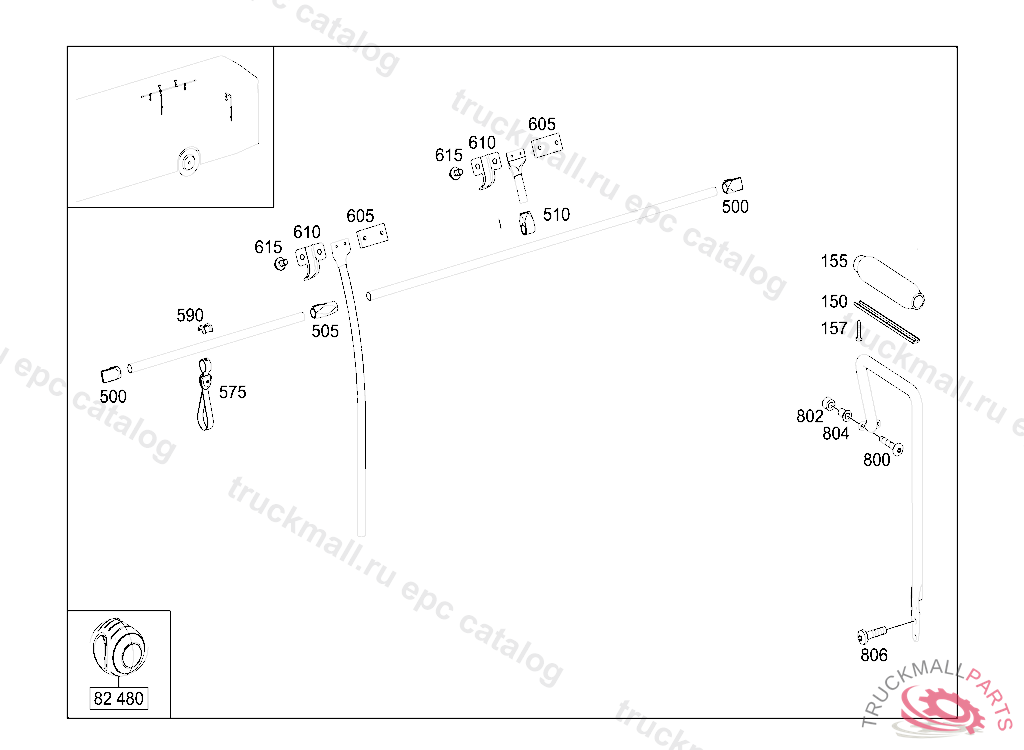

Поз.
Артикул
Описание
150
LEDGE
155
PAD
157
TAPPING SCREW CLOTHES-HOOK TO BODY
500
BRACKET
505
BRACKET GRIP RAIL MOUNTING, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
510
BRACKET , .......I.......INO.7E87I.......I II
575
STRAP
575
STRAP GRIP RAIL, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
590
RING
605
PLATE
610
BRACKET
615
SCREW COVER TO AXLE HOUSING
800
SCREWM8X45
802
SPACER TUBE OIL-PRESSURE-GAUGE-SENDER-UNIT CABLE, TO BE ADAPTED DURING ASSEMBLY
804
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
806
HEXALOBULAR BOLTM10X40
