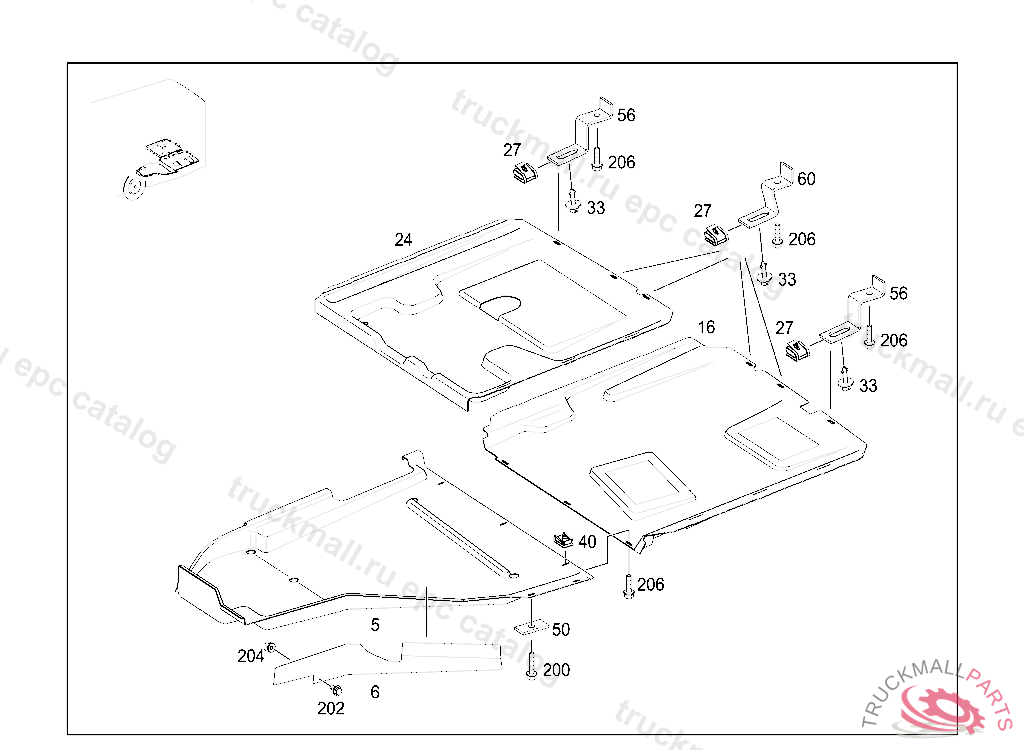

O 530 NG3 UES. E 2 - 628.020 - 68 COVERING AND LINING
Поз.
Артикул
Описание
5
COVERING LEFT FRONT
6
MOUNTING
16
COVERING LEFT REAR
24
COVERING RIGHT REAR
24
COVER
27
MOUNTING PLATE. RETAINING CAM
33
LOCKING PIN. GUIDE
40
LOCK NUT. SPRING NUT MOUNTING PARTS
50
SHIM RADIATOR TO SUBSTRUCTURE
56
BRACKET
60
BRACKET
200
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
202
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
204
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
206
SCREW BRACKET AND CLAMP M6X20
