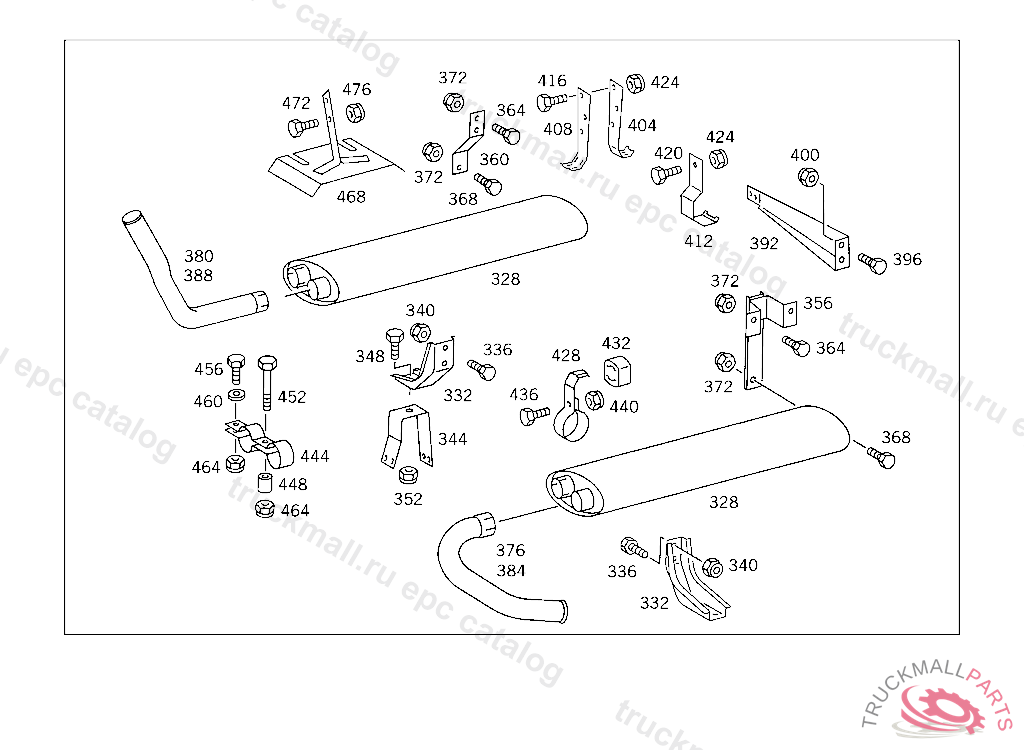

Поз.
Артикул
Описание
328
EXHAUST MUFFLER
332
CONSOLE REAR EXHAUST MUFFLER 132 MM
332
CONSOLE EXHAUST MUFFLER,FRONT
336
SCREW , Replaced By: N308676012026
336
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
340
NUT SUPPORT TO SIDE MEMBER
344
BRACKET EXHAUST MUFFLER
348
SCREW END PIECE TO EXHAUST PIPE M 10X25
352
NUT , Replaced By: N910113010000
352
NUT STRAP TO BRACKET
356
BRACKET REAR EXHAUST MUFFLER
356
BRACKET , Replaced By: A6554902640, +001A6214910541, +004N000933010105
360
BRACKET HEATING PIPE TO ENGINE,5 3853425 932305
364
SCREW BRACKET TO SIDE MEMBER
364
SCREW , Replaced By: N304017010002
368
SCREW END PIECE TO EXHAUST PIPE M 10X25
368
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
372
NUT STRAP TO BRACKET
372
NUT STRAP TO BRACKET
372
NUT , Replaced By: N910113010000
376
REAR EXHAUST PIPE TAIL PIPE
380
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
384
REAR EXHAUST PIPE TAIL PIPE
384
REAR EXHAUST PIPE , Replaced By: A6554926405
388
REAR EXHAUST PIPE (TAIL PIPE)
392
SUPPORT TAIL PIPE ON THE RIGHT
396
SCREW SUPPORT TO FRAME M 14X32,5 129244
400
NUT BRACKET TO SIDE MEMBER
400
NUT , Replaced By: N910113014001
404
BRACKET TAIL PIPE ON THE RIGHT
408
BRACKET TAIL PIPE ON THE RIGHT
412
BRACKET EXHAUST MUFFLER
416
SCREW SUPPORT TO FENDER
416
SCREW , Replaced By: N304017008018
420
SCREW PIPE CLAMP
420
SCREW , Replaced By: N304017008021
424
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
424
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
424
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
424
NUT , Replaced By: N913004008001
428
BRACKET TAIL PIPE
428
BRACKET REAR EXHAUST PIPE TO BRACKET
432
DAMPING PAD PARTICLE FILTER
436
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
436
SCREW , Replaced By: N304017008027
436
SCREW BRACKET TO SIDE MEMBER
436
SCREW , Replaced By: N304017010002
440
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
440
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
440
NUT , Replaced By: N913004008001
440
NUT STRAP TO BRACKET
440
NUT , Replaced By: N910113010000
444
CLAMP TAIL PIPE TO BRACKET
448
SPACER TUBE EXHAUST PIPE TO BRACKET
452
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
452
SCREW , Replaced By: N304014010004
456
SCREW BRACKET TO SIDE MEMBER
456
SCREW , Replaced By: N304017010002
460
WASHER RADIATOR TO RUBBER MOUNTING
460
WASHER , Replaced By: N000125010532
464
NUT STRAP TO BRACKET
464
NUT , Replaced By: N910113010000
468
PROTECTIVE PLATE REAR EXHAUST PIPE
472
SCREW PIPE CLAMP
472
SCREW , Replaced By: N304017008021
476
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
476
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
476
NUT , Replaced By: N913004008001
999
WASHER TOW HOOK TO SIDE MEMBER,FRONT
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
CLAMP EXHAUST PIPE TO MUFFLER AND TO BRACKET
