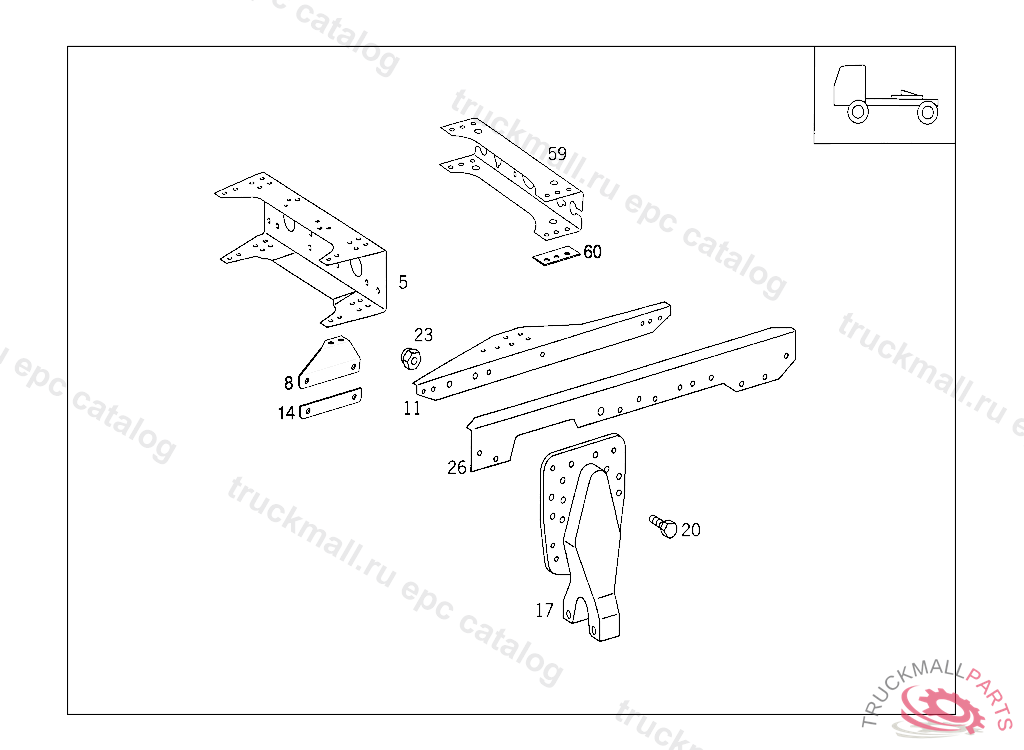

Поз.
Артикул
Описание
5
CROSS MEMBER CENTRAL BEARING
8
STRUT CROSS MEMBER,LEFT
8
STRUT CROSS MEMBER,RIGHT
11
TRUSS LEFT TOP,K 103913
11
TRUSS RIGHT TOP,K 103913
14
SHIM STRUT TO BEARING BRACKET,K 103913
17
BEARING BODY LONGITUDINAL CONTROL ARM, TO BE ADAPTED DURING ASSEMBLY
17
SUPPORT THRUST ARM,K 164561
20
FITTED SCREW SUPPORT AND SHIM TO SIDE MEMBER M 18X105
20
SCREW BELL HOUSING TO TRANSMISSION M 18X1.5X65
20
FITTED SCREW SUPPORT AND SHIM TO SIDE MEMBER M 18X65,K 103912
23
NUT TORSION BAR TO BEARING BRACKET,5 904661
26
ANGLE SADDLE PLATE,LEFT,K 103913 TO BE ADAPTED DURING ASSEMBLY
26
ANGLE SADDLE PLATE,RIGHT,K 103912
26
ANGLE SADDLE PLATE,LEFT,K 103912
26
ANGLE SADDLE PLATE,RIGHT,K 103913 TO BE ADAPTED DURING ASSEMBLY
26
ANGLE ,K 103912, Replaced By: A6543110383
26
ANGLE ,K 103912, Replaced By: A6543110483
59
CROSS MEMBER , Replaced By: A6553120335
59
CROSS MEMBER (REAR CROSS MEMBER)
59
CROSS MEMBER
60
SHIM CROSS MEMBER TO SIDE MEMBERS,K 103913
999
TRUSS LEFT BOTTOM
999
TRUSS RIGHT BOTTOM
999
TRUSS LEFT TOP
999
TRUSS RIGHT TOP
999
ANGLE ,K 103913 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6543110583
999
ANGLE ,K 103913 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6543110683
999
TRUSS LEFT BOTTOM,K 103913
999
TRUSS RIGHT BOTTOM,K 103913
999
GUSSET PLATE LEFT, TO BE ADAPTED DURING ASSEMBLY
999
GUSSET PLATE RIGHT, TO BE ADAPTED DURING ASSEMBLY
