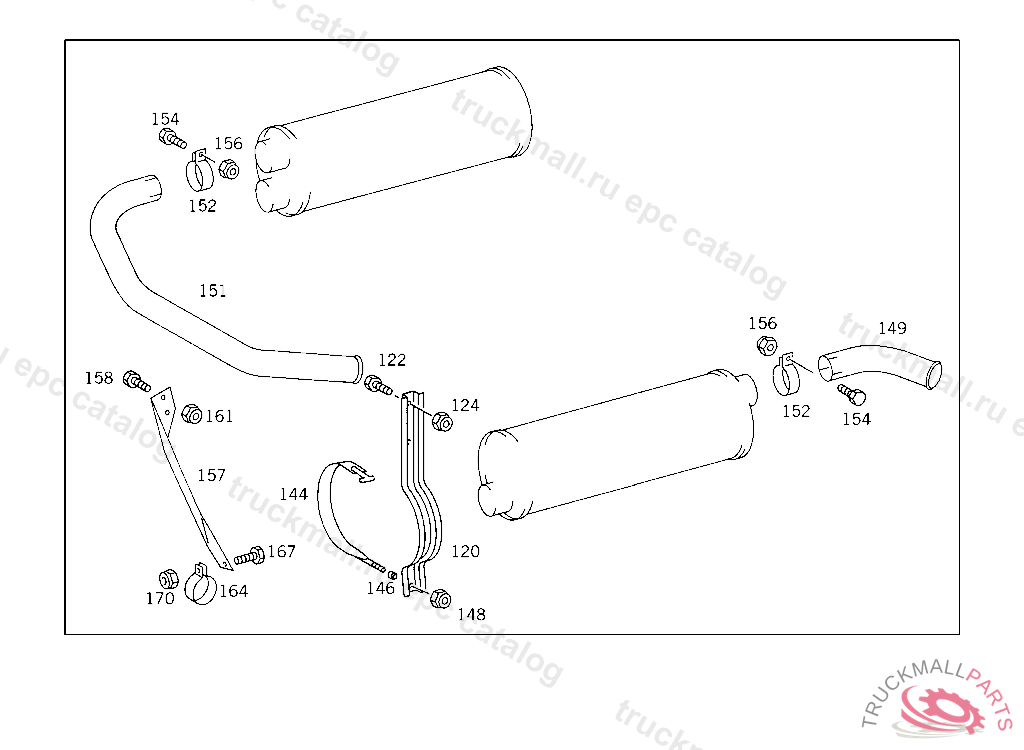

Поз.
Артикул
Описание
120
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
120
BRACKET , Replaced By: A6524911141
122
SCREW , Replaced By: N308676014020
122
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
124
NUT , Replaced By: N910113014001
124
NUT BRACKET TO SIDE MEMBER
144
STRAP , Replaced By: A6524900442
144
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
146
SPHERICAL WASHER STRAP TO BRACKET
148
NUT , Replaced By: N910113010000
148
NUT STRAP TO BRACKET
149
REAR EXHAUST PIPE TAIL PIPE,FRONT
151
END PIECE , Replaced By: A6174924314
151
END PIECE
152
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
152
CLAMP , Replaced By: N071555094502
154
SCREW BRACKET TO SIDE MEMBER
154
SCREW , Replaced By: N304017010002
156
NUT , Replaced By: N910113010000
156
NUT STRAP TO BRACKET
157
BRACKET TAIL PIPE
158
SCREW , Replaced By: N304017010002
158
SCREW BRACKET TO SIDE MEMBER
161
NUT STRAP TO BRACKET
161
NUT , Replaced By: N910113010000
164
CLAMP , Replaced By: N071555090502
164
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
167
SCREW BRACKET TO SIDE MEMBER
167
SCREW , Replaced By: N304017010002
170
NUT STRAP TO BRACKET
170
NUT , Replaced By: N910113010000
