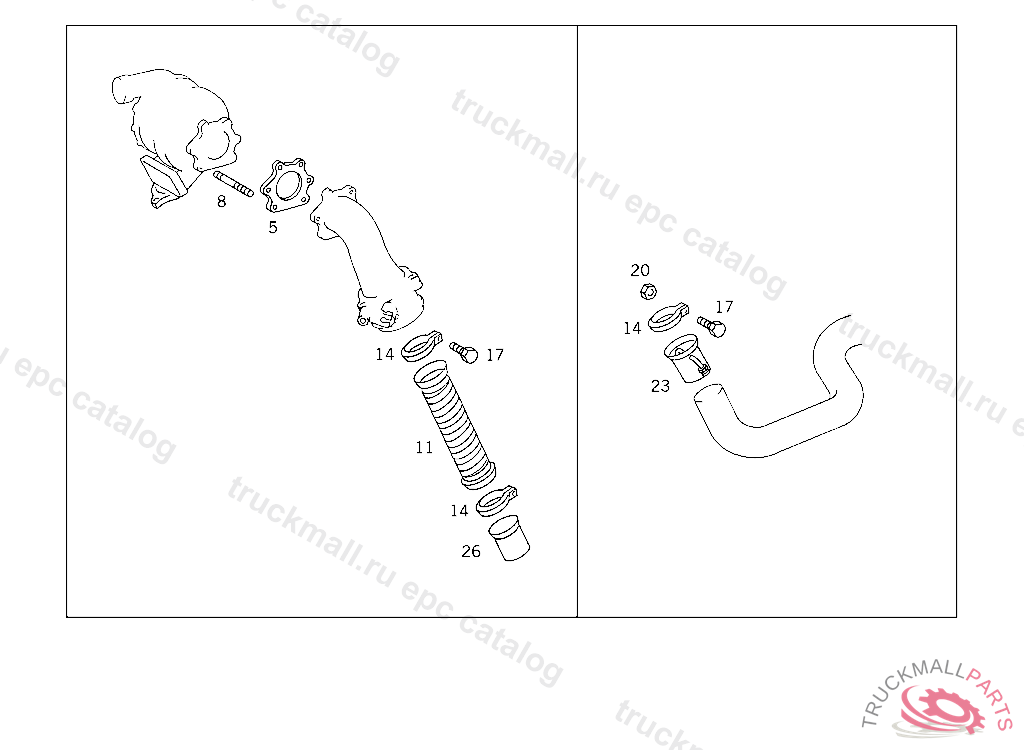

Поз.
Артикул
Описание
5
FLANGE THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
5
FLANGE , Replaced By: A4421420115
8
BOLT. STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
11
FLEXIBLE METAL TUBE CONNECTOR
11
FLEXIBLE METAL TUBE LEFT EXHAUST PIPE
11
FLEXIBLE METAL TUBE FRONT LEFT
11
FLEXIBLE METAL TUBE FRONT
11
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE FRONT PART TO REAR PART
14
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
14
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
14
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
17
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
17
SCREW BRACKET TO FRAME M 8X35
20
NUT BRACKET TO BRACKET
23
COLLAR (SLIDING COLLAR)
23
COLLAR FLEXIBLE METAL TUBE TO EXHAUST PIPE
23
COLLAR FRONT EXHAUST PIPE FRONT PART TO REAR PART
23
COLLAR , Replaced By: A6214920008
23
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
26
CONNECTOR , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6214920008
26
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
26
CONNECTOR FROM SLIDING PIECE TO EXHAUST MUFFLER
26
CONNECTOR FLEXIBLE METAL TUBE TO EXHAUST PIPE
26
COLLAR (SLIDING COLLAR)
