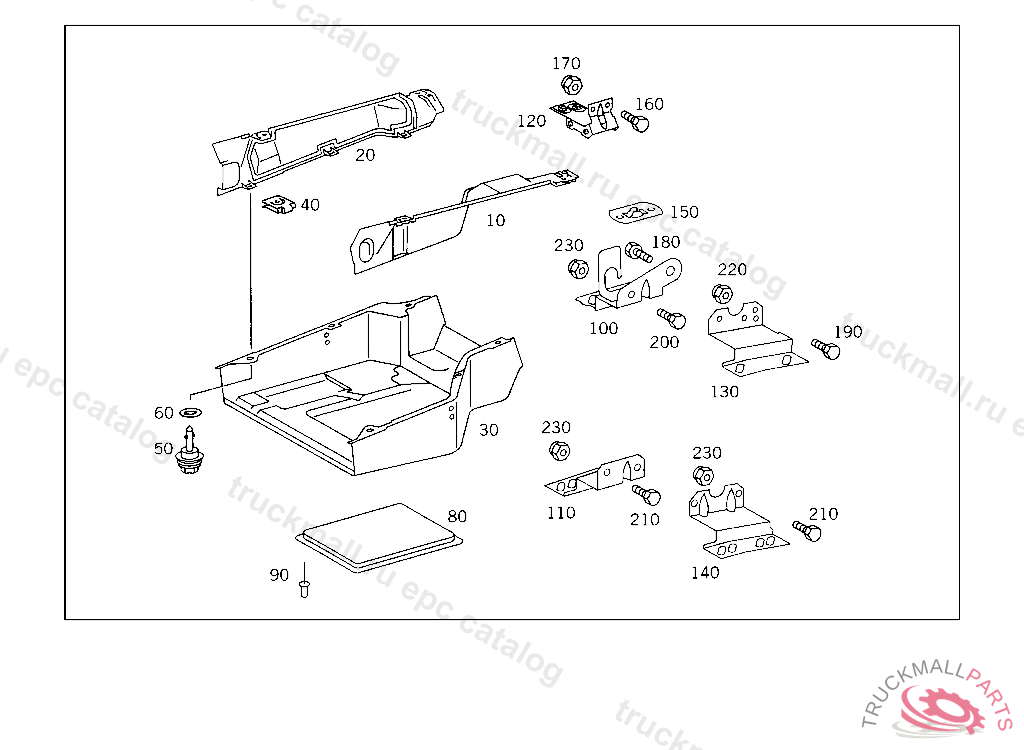

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE TOP LEFT
10
ANTINOISE CAPSULE TOP LEFT,5 910037
20
ANTINOISE CAPSULE TOP RIGHT
20
ANTINOISE CAPSULE TOP RIGHT
20
ANTINOISE CAPSULE TOP RIGHT
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE BOTTOM
30
ANTINOISE CAPSULE BOTTOM
30
ANTINOISE CAPSULE OIL PAN, TO BE ADAPTED DURING ASSEMBLY
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE LOWER PART
30
ANTINOISE CAPSULE LOWER PART
40
FASTENER ANTINOISE CAPSULE
50
LOCKING PIN LOWER PART
50
LOCKING PIN ANTINOISE CAPSULE
60
LOCK PROTECTIVE PLATE TO BRACKET
80
COVERING
90
RIVET PROTECTIVE PLATE TO ANTINOISE CAPSULE
100
BRACKET ANTINOISE CAPSULE TO FRAME
100
BRACKET ANTINOISE CAPSULE TO FRAME
100
BRACKET ANTINOISE CAPSULE TO FRAME
100
BRACKET ANTINOISE CAPSULE,LEFT
100
BRACKET RIGHT ANTINOISE CAPSULE
110
BRACKET ANTINOISE CAPSULE TO FRAME
110
BRACKET ANTINOISE CAPSULE TO FRAME
120
BRACKET ANTINOISE CAPSULE TO FRAME
120
BRACKET ANTINOISE CAPSULE TO FRAME
120
BRACKET ANTINOISE CAPSULE TO FRAME
120
BRACKET ANTINOISE CAPSULE TO FRAME
130
BRACKET ANTINOISE CAPSULE TO FRAME
130
BRACKET ANTINOISE CAPSULE TO FRAME
130
BRACKET ANTINOISE CAPSULE,LEFT
130
BRACKET RIGHT ANTINOISE CAPSULE
140
BRACKET ANTINOISE CAPSULE TO FRAME
140
BRACKET ANTINOISE CAPSULE TO FRAME
140
BRACKET ANTINOISE CAPSULE TO FRAME
140
BRACKET ANTINOISE CAPSULE TO FRAME
140
BRACKET ANTINOISE CAPSULE TO FRAME
140
BRACKET ANTINOISE CAPSULE TO FRAME
150
FASTENER ,K 105999
160
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
160
SCREW , Replaced By: N304017008027
160
SCREW BRACKET TO FRAME SIDE MEMBER M 8X75
170
NUT , Replaced By: N913004008001
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
180
SCREW , Replaced By: N308676016004
180
SCREWM 16X18X38X60
180
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
190
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
190
SCREW , Replaced By: N308676012026
190
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
200
SCREW , Replaced By: N910105010011
200
SCREW , Replaced By: N304017010002
200
SCREW EXHAUST PIPE TO SIDE MEMBER
200
SCREW BRACKET TO SIDE MEMBER
200
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
200
SCREW REAR EXHAUST PIPE TO MUFFLER
210
SCREW HAND PUMP TO BRACKET
220
NUT SUPPORT TO SIDE MEMBER
220
NUT STRAP TO SUPPORT
230
NUT STRAP TO BRACKET
230
NUT EXHAUST PIPE TO SIDE MEMBER
230
NUT , Replaced By: N910113010000
999
NUT BRACKET TO BRACKET
999
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO FRAME M 8X35
999
SCREW , Replaced By: N910105008043
999
SCREW , Replaced By: N910105010011
999
SCREW TRAILER COUPLING TO REAR CROSS MEMBER M 16X60
999
BRACKET LEFT INSIDE
999
BRACKET RIGHT INSIDE
999
BRACKETTO 652 520 43 41
999
ANTINOISE CAPSULE TOP LEFT
999
BRACKET ANTINOISE CAPSULE TO FRAME
999
BRACKET ANTINOISE CAPSULE TO FRAME
999
BRACKET ANTINOISE CAPSULE TO FRAME
999
BRACKET ANTINOISE CAPSULE TO FRAME
999
COVERING ATTACHMENT NOISE ENCAPSULATION TO 652 520 83 24
999
ANTINOISE CAPSULE LOWER PART
999
ANTINOISE CAPSULE LOWER PART
999
ANTINOISE CAPSULE LOWER PART
999
ANTINOISE CAPSULE LOWER PART
999
ENGINE HOOD LOWER PART
999
BRACKET ANTINOISE CAPSULE TO FRAME
999
SCREW , Replaced By: N910143008010
999
HEXALOBULAR BOLT BRACKET TO BRACKET
