Mercedes N007603016103 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

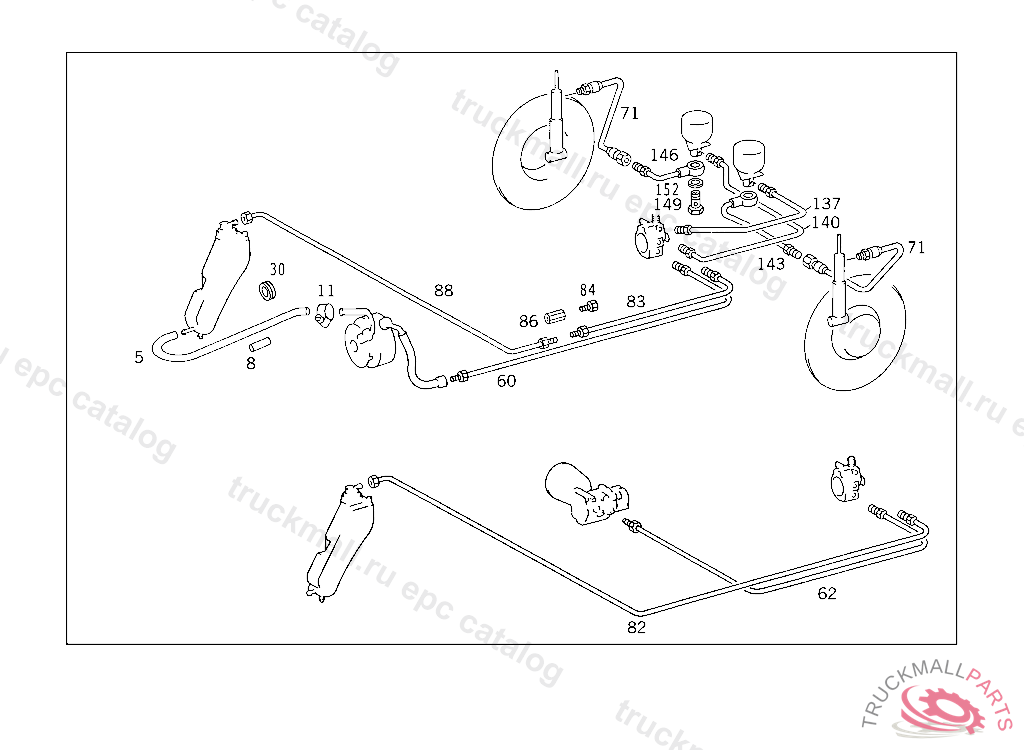

5

HOSE FROM OIL RESERVOIR TO OIL PIPE AT OIL PUMP 350 MM, ORDER BY THE METER

11

HOSE CLAMP LINE MOUNTING

11

CLAMP , Replaced By: A0059970190

60

LINE FROM HIGH PRESSURE EXPANSION HOSE TO HEIGHT CONTROL VALVE

62

LINE FROM CONTROL VALVE TO SELF-LEVELLING UNIT

71

HOSE FROM SPRING LOAD ACCUMULATOR TO HYDROPNEUMATIC SPRING LEG

83

LINE (RETURN LINE),FROM SELF-LEVELLING UNIT TO COUPLING PIECE, A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442 TO BE ADAPTED DURING ASSEMBLY

83

LINE , Replaced By: A1263208772, +001A1269970034

84

SCREW. RETAINING SCREW

86

COUPLING PIECE

88

LINE (RETURN LINE) FROM COUPLING PIECE TO OIL RESERVOIR, A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442

137

LINE FROM HEIGHT CONTROL VALVE TO LEFT SPRING-LOAD ACCUMULATOR

140

LINE FROM HEIGHT CONTROL VALVE TO RIGHT SPRING-LOADED BRAKE UNIT

143

LINE FROM SPRING LOAD ACCUMULATOR TO LEFT HYDROPNEUMATIC SPRING LEG

146

LINE FROM SPRING LOAD ACCUMULATOR TO RIGHT HYDROPNEUMATIC SPRING LEG

149

HOLLOW SCREW CONNECTING HOSE TO SPRING LOAD ACCUMULATOR
