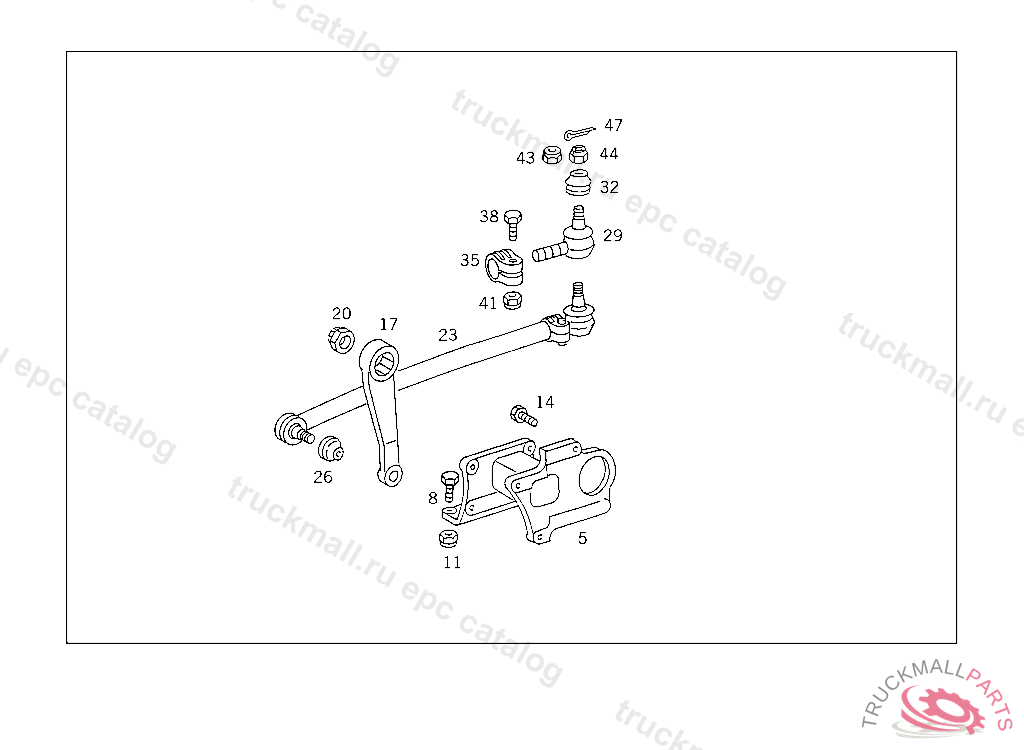

Поз.
Артикул
Описание
5
STEERING SUPPORT AT FRAME
5
STEERING SUPPORT AT FRAME
8
SCREW STEERING SUPPORT TO FRAME M 14X50
11
NUT STEERING SUPPORT TO FRAME
11
NUT , Replaced By: N910113014000
14
SCREW , Replaced By: N308676016006
14
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
17
PITMAN ARM
20
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
23
DRAG LINKEHRENREICH
23
DRAG LINKEHRENREICH
23
DRAG LINKLEMFOERDER
23
DRAG LINKLEMFOERDER
26
BOOT DRAG LINK
29
DRAG LINK END R.H. THREAD EHRENREICH
29
DRAG LINK END , Replaced By: A0014600848
29
DRAG LINK END , Replaced By: A0014602248
29
DRAG LINK END , Replaced By: A0014607748
29
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
29
DRAG LINK END , Replaced By: A0014602248
32
BOOT DRAG LINK
35
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
35
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
38
SCREW , Replaced By: N308676012017
38
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
41
NUT , Replaced By: N910113012003
41
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
43
NUT DRAG LINK END M 24X1.5
44
NUT , Replaced By: N000937024002
44
NUT DRAG LINK TO LEVER
47
COTTER PIN DRAG LINK TO LEVER
999
SCREW STEERING BRACKET TO FRAME
