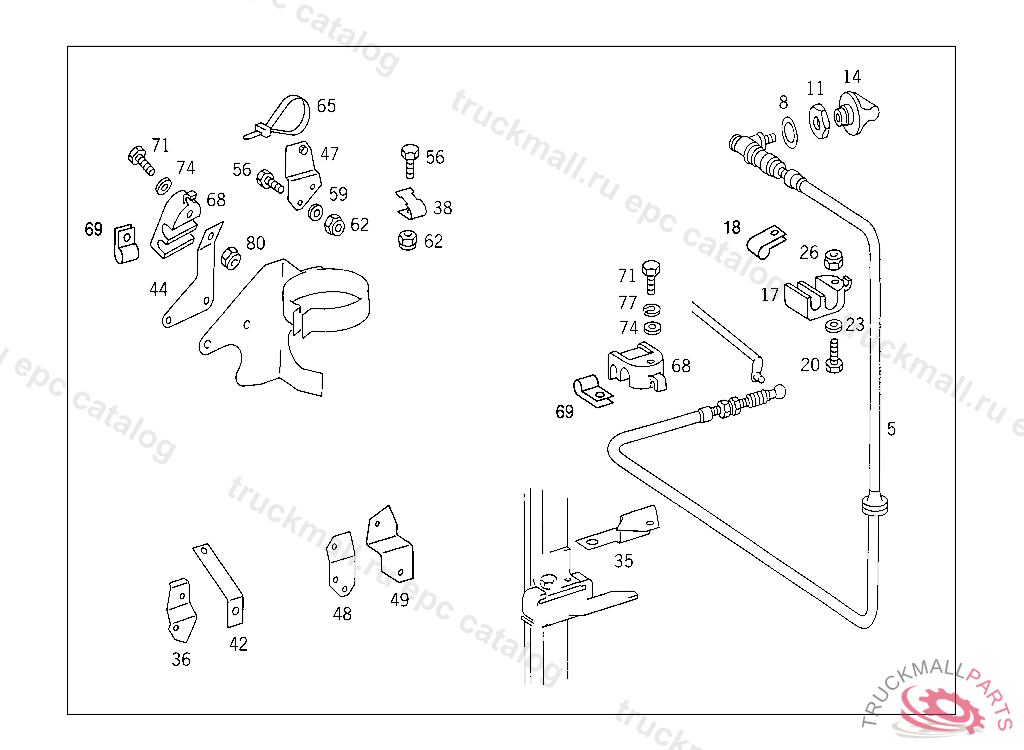

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL
5
WIRE CABLE MANUAL CONTROL
8
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
11
NUT WIRE CABLE TO INSTRUMENT PANEL
14
KNOB IDLING ADJUSTMENT
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
18
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
18
CLAMP ,K 147121, Replaced By: N000000000319
20
SCREW , Replaced By: A0029903712
20
SCREW , Replaced By: N000000001149
20
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
36
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
38
BRACKET , Replaced By: A6523010240
38
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
44
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
48
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
56
SCREW PUMP TO BRACKET
56
SCREW LICENSE PLATE TO BRACKET
56
SCREW , Replaced By: N304017006016
56
SCREW , Replaced By: N304017006020
59
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
WASHER COMPRESSED AIR LINE TO BRACKET
62
NUT PUMP TO BRACKET
62
NUT , Replaced By: N913004006001
65
LOOM TIE LINE MOUNTING 280 MM
65
LOOM TIE LINE MOUNTING
68
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
69
CLAMP ,K 147121, Replaced By: N000000000319
69
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
71
SCREW , Replaced By: A0029903712
71
SCREW , Replaced By: N000000001149
71
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
