Поз.
Артикул
Описание

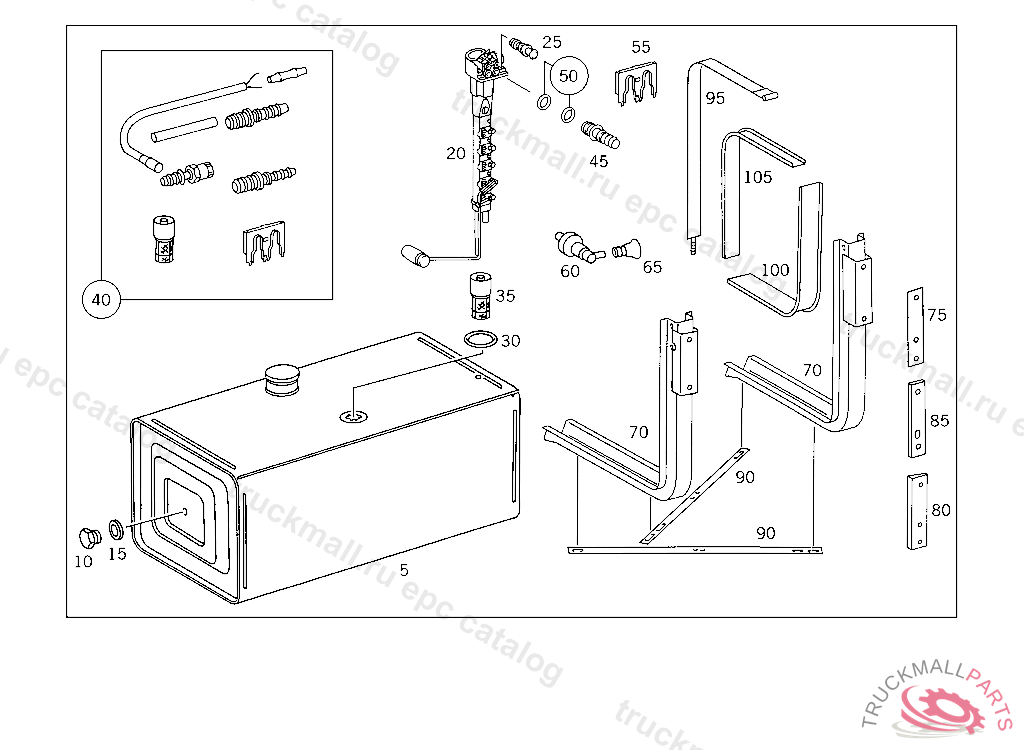

5
FUEL TANK
10
SCREW PLUG AT TANK
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
20
SENDER UNIT FUEL GAUGE
20
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
25
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
30
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
35
FUEL STRAINER FUEL TANK,K 169122
40
INSTALLATION KIT INSTALLATION KIT FOR SUBSEQUENT INSTALLATION
45
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
45
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
45
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
50
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
55
LOCK FUEL GAUGE SENDER UNIT CONNECTION
60
VALVE ,K 169122
65
BOOT CHECK VALVE,K 169122
70
SUPPORT FUEL TANK TO FRAME
70
SUPPORT FUEL TANK TO FRAME
75
SHIM SUPPORT TO SIDE MEMBER
80
SHIM FUEL TANK TO FRAME
85
BASE SUPPORT TO SIDE MEMBER
90
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
90
REINFORCEMENT SUPPORT TO CONSOLE,5 497851
95
STRAP PARTICLE FILTER
95
STRAP FUEL TANK TO SUPPORT
100
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
105
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
999
BRACKET MOUNTING PARTS
