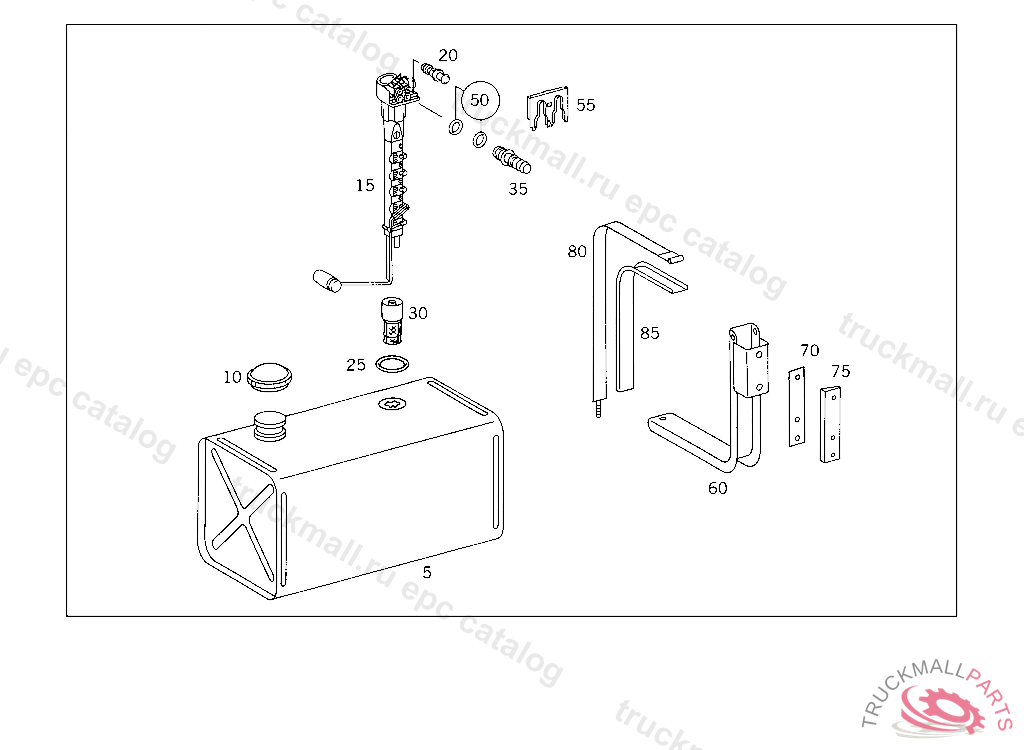

Поз.
Артикул
Описание
5
FUEL TANK240/200 L
5
FUEL TANK , Replaced By: A6624702801
10
PART NAME MISSING FILLER CAP, UP TO 10.96
15
SENDER UNIT FUEL GAUGE
20
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
25
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
30
FUEL STRAINER FUEL TANK,K 169123
35
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
35
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
35
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
50
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
55
LOCK FUEL GAUGE SENDER UNIT CONNECTION
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT , Replaced By: A6624701842
70
SHIM SUPPORT TO SIDE MEMBER
75
SHIM FUEL TANK TO FRAME
80
STRAP FUEL TANK TO CONSOLE
80
STRAP FUEL TANK TO CONSOLE
80
STRAP , Replaced By: A6624700640
85
PAD , Replaced By: A3144750020
85
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
