Поз.
Артикул
Описание

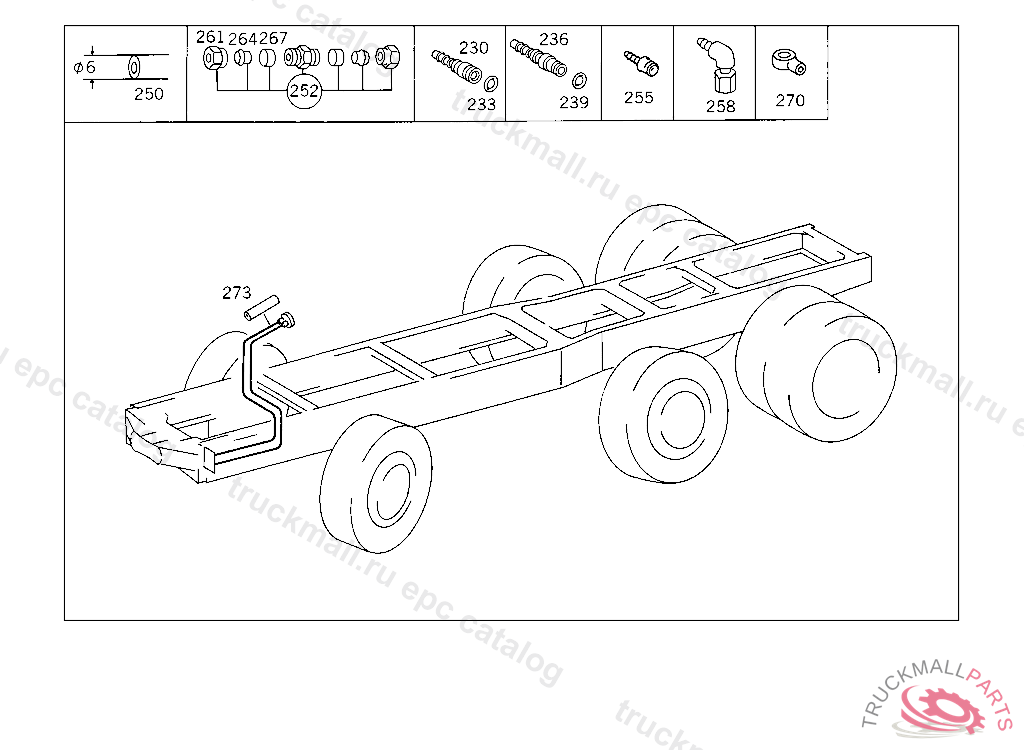

230
CONNECTOR HOSE WIDTH, / I.D., 6 MM
233
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
236
CONNECTOR DISTRIBUTOR TO CAB
239
SEAL RING
250
PLASTIC PIPE RISING PIPE 4X6 MM
250
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
252
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
255
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
255
CONNECTOR , Replaced By: A0029905378
258
ELBOW FITTING
261
UNION NUT
264
SEAL CONE
264
GLAND , Replaced By: A0019901667
267
SLEEVE LEAK LINE
270
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
270
BANJO UNION , Replaced By: N000000000364
273
HOSE LEAK LINE, ORDER BY THE METER
999
BRACKET LINE TO FRONT PANEL
999
REPAIR KIT CHECK VALVE VOSS
999
BUSHINGWABCO,5 433388
999
VALVE SEAT RINGWABCO,5 433388
999
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
999
REPAIR KIT BRAKE POWER REGULATOR KNORR
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KIT BRAKE POWER REGULATOR WABCO
999
BUSHING , Replaced By: A4421440050
999
DIAPHRAGM , Replaced By: A0004314128
999
LEVER PARKING BRAKE VALVE WABCO
999
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
999
PINTO 002 430 90 81
999
HANDLE"WABCO"
999
PROTECTIVE CAPWABCO
999
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
999
EDGE GUARD SECTION , Replaced By: A0019872272
999
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
999
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KIT HAND BRAKE VALVE "WABCO"
999
GASKET KITKNORR
999
ADHESIVE FOIL GUIDE SIGN
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
BUSHING"WABCO"
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
TREENAIL BRACKET TO FIRE WALL
999
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
999
BRACKET DEHYDRATOR AIR-RESERVOIR
999
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554200786
999
CONNECTOR , Replaced By: A0009908878
999
BRACKET , Replaced By: A6554316740
999
GUIDE SIGN AIR SPRING BELLOWS,5 760167
999
CONNECTOR9MM / M22X1,5 / VOSS 230, Replaced By: A0019909571, +001A0009940147, +001A0009941448, +001A0009970934
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
LOCK RINGWABCO,5 433388
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008040
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW BRACKET TO SIDE MEMBER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
