Поз.
Артикул
Описание

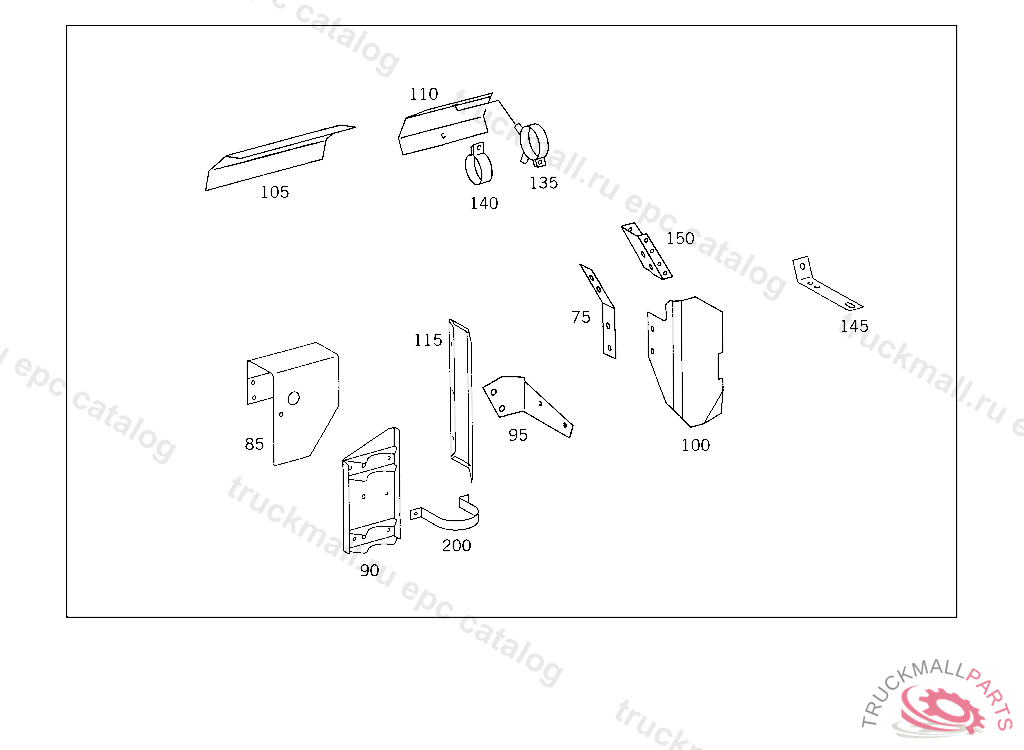

75
BRACKET EXHAUST PIPE SUSPENSION
75
BRACKET EXHAUST PIPE TO SUPPORT
85
CONSOLE EXHAUST PIPE TO SUPPORT
90
BRACKET EXHAUST PIPE TO CONSOLE
95
BRACKET BEARING BRACKET
100
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
100
PROTECTIVE PLATE (HEAT SHIELD)
100
PROTECTIVE PLATE (HEAT SHIELD)
105
PROTECTIVE PLATE EXHAUST PIPE
110
PROTECTIVE PLATE , NOT USED
115
PROTECTIVE PLATE EXHAUST PIPE
135
CLAMP EXHAUST PIPE TO BRACKET
135
CLAMP , Replaced By: N071555120502
140
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
145
BRACKET COMPRESSED AIR LINE MOUNTING,K 049746
150
BRACKET AT SIDE MEMBER
150
BRACKET TAIL PIPE
200
CLAMP EXHAUST PIPE TO BRACKET
999
FRONT EXHAUST PIPE FROM EXHAUST MUFFLER TO TAIL PIPE
