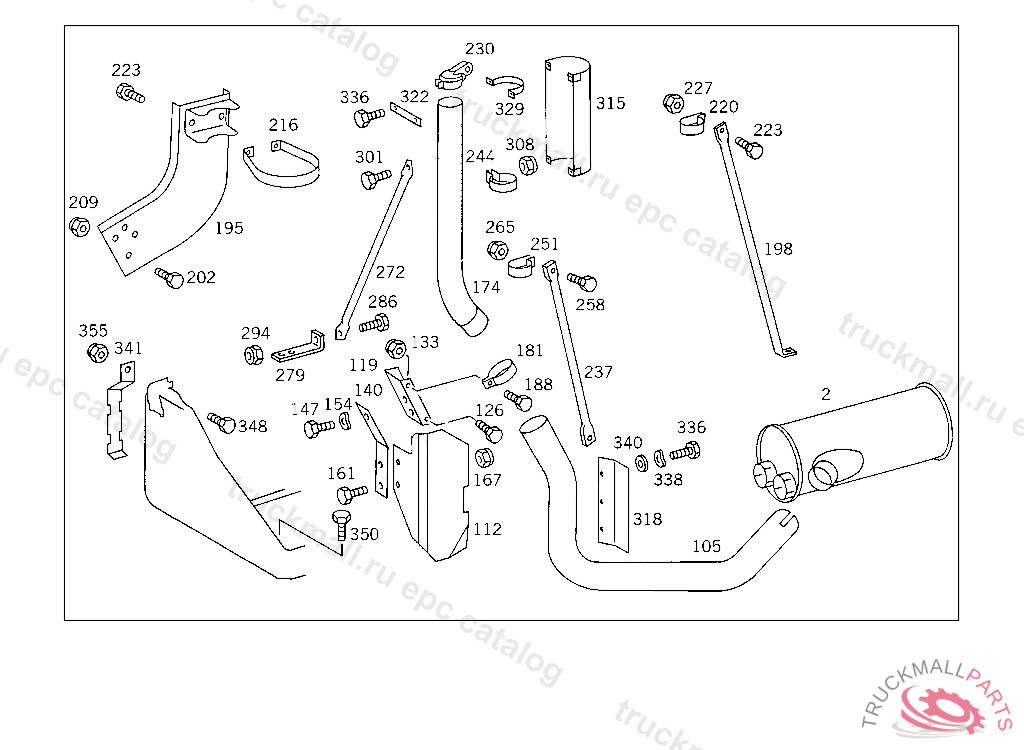

Поз.
Артикул
Описание
2
EXHAUST MUFFLER
2
EXHAUST MUFFLER
105
REAR EXHAUST PIPE , Replaced By: A6454900621
105
EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
105
REAR EXHAUST PIPE , Replaced By: A6554902921
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE , Replaced By: A6554900921
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
105
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE , Replaced By: A6554901421
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE , Replaced By: A6554924505
105
REAR EXHAUST PIPE , Replaced By: A6554903821
105
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
105
REAR EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
112
PROTECTIVE PLATE TAIL PIPE,BOTTOM, TO BE ADAPTED DURING ASSEMBLY
119
BRACKET AT SIDE MEMBER
126
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
133
NUT , Replaced By: N910113014001
133
NUT BRACKET TO SIDE MEMBER
140
BRACKET EXHAUST PIPE SUSPENSION
147
SCREW , Replaced By: N304017008034
147
SCREW BRACKET TO CROSS CONNECTION STRUT
154
SPRING WASHER , Replaced By: N000137008212
154
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
161
SCREW , Replaced By: N304017008021
161
SCREW PIPE CLAMP
167
NUT , Replaced By: N913004008001
167
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
174
REAR EXHAUST PIPE BEHIND CAB,UPWARD
174
REAR EXHAUST PIPE BEHIND CAB,UPWARD
174
END PIECE BEHIND CAB,UPWARD
174
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6574922004
174
REAR EXHAUST PIPE , Replaced By: A6574922104
174
REAR EXHAUST PIPE BEHIND CAB,UPWARD
181
CLAMP EXHAUST PIPE TO BRACKET
181
CLAMP EXHAUST PIPE TO BRACKET
188
SCREW , Replaced By: N304017010002
188
SCREW BRACKET TO SIDE MEMBER
188
SCREW BRACKET TO SIDE MEMBER
195
BRACKET BRACKET TO CAB MOUNTING CONSOLE
195
BRACKET REAR EXHAUST PIPE
198
BRACKET STRUT
198
BRACKET STRUT
202
SCREW , Replaced By: N304017008034
202
SCREW BRACKET TO CROSS CONNECTION STRUT
202
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
209
NUT , Replaced By: N913004008001
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
NUT , Replaced By: N910113014001
209
NUT BRACKET TO SIDE MEMBER
216
CLAMP UPPER EXHAUST PIPE TO BRACKET
220
CLAMP EXHAUST PIPE TO BRACKET
220
CLAMP EXHAUST PIPE TO BRACKET
220
CLAMP EXHAUST PIPE TO BRACKET
223
SCREW , Replaced By: N304017008034
223
SCREW BRACKET TO CROSS CONNECTION STRUT
223
SCREW , Replaced By: N304017010002
223
SCREW END PIECE TO EXHAUST PIPE M 10X25
223
SCREW BRACKET TO SIDE MEMBER
223
SCREW BRACKET TO SIDE MEMBER
223
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
NUT , Replaced By: N910113010000
227
NUT STRAP TO BRACKET
227
NUT STRAP TO BRACKET
227
NUT STRAP TO BRACKET
227
NUT STRAP TO BRACKET
230
FLAP EXHAUST PIPE
237
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
244
CLAMP EXHAUST PIPE TO BRACKET
251
CLAMP EXHAUST PIPE TO BRACKET
258
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
258
SCREW BRACKET TO SIDE MEMBER
258
SCREW , Replaced By: N304017010002
265
NUT BRACKET TO SIDE MEMBER
265
NUT , Replaced By: N910113014001
265
NUT STRAP TO BRACKET
265
NUT , Replaced By: N910113010000
272
BRACKET STRUT
279
BRACKET BRACKET TO CROSS CONNECTION STRUT
286
SCREW BRACKET TO CROSS CONNECTION STRUT
286
SCREW , Replaced By: N304017008034
294
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
294
NUT , Replaced By: N913004008001
301
SCREW BRACKET TO SIDE MEMBER
301
SCREW , Replaced By: N304017010002
301
SCREW END PIECE TO EXHAUST PIPE M 10X25
308
NUT STRAP TO BRACKET
308
NUT , Replaced By: N910113010000
315
PROTECTIVE PLATE (HEAT SHIELD)
318
PROTECTIVE PLATE EXHAUST PIPE
322
BASE PLATE HEAT SHIELD TO TAILPIPE
329
CLAMP EXHAUST PIPE TO BRACKET
336
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
336
SCREW , Replaced By: N304017008016
336
SCREW BRACKET TO CROSS CONNECTION STRUT
336
SCREW , Replaced By: N304017008034
338
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
338
SPRING WASHER , Replaced By: N000137008212
340
WASHER EXHAUST MUFFLER TO STRAP
340
WASHER , Replaced By: N000125008443
341
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
341
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
348
SCREW END PIECE TO EXHAUST PIPE M 10X25
350
SCREW BRACKET TO FRAME SIDE MEMBER
355
NUT STRAP TO BRACKET
355
NUT , Replaced By: N910113010000
999
DAMPING PAD PARTICLE FILTER
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET REAR EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
SPACER TUBE , Replaced By: A3140720253
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
SUPPORT TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET
999
BRACKET REAR EXHAUST PIPE TO MUFFLER SUPPORT
999
EXHAUST MUFFLER ,5 518156
999
EXHAUST MUFFLER ,5 535800
999
REAR EXHAUST PIPE TAIL PIPE,5 439561
999
BRACKET EXHAUST MUFFLER
999
CLAMP EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE (TAIL PIPE)
999
CLAMP TAIL PIPE TO BRACKET
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE, NOT USED
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP , Replaced By: N071555124501
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE TAIL PIPE
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE TAIL PIPE,5 756873
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER,5 557346
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE ,K 005042
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6554922041
999
END PIECE
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE REAR,K 002404
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
END PIECE
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , Replaced By: A6554922914
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE , Replaced By: A6554901021
999
REAR EXHAUST PIPE , Replaced By: A6554901321
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE TAIL PIPE
999
REAR EXHAUST PIPE , Replaced By: A6254921904
999
REAR EXHAUST PIPE TAIL PIPE ON THE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
REAR EXHAUST PIPE TAIL PIPE TO EXHAUST MUFFLER
999
REAR EXHAUST PIPE AT MUFFLER,RIGHT
999
REAR EXHAUST PIPE AT MUFFLER,LEFT
999
REAR EXHAUST PIPE TAIL PIPE
999
BRACKET TAIL PIPE,5 756872K 015412
999
REAR EXHAUST PIPE ,5 501689
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE (TAIL PIPE)
999
CLAMP END PIECE TO EXHAUST PIPE
