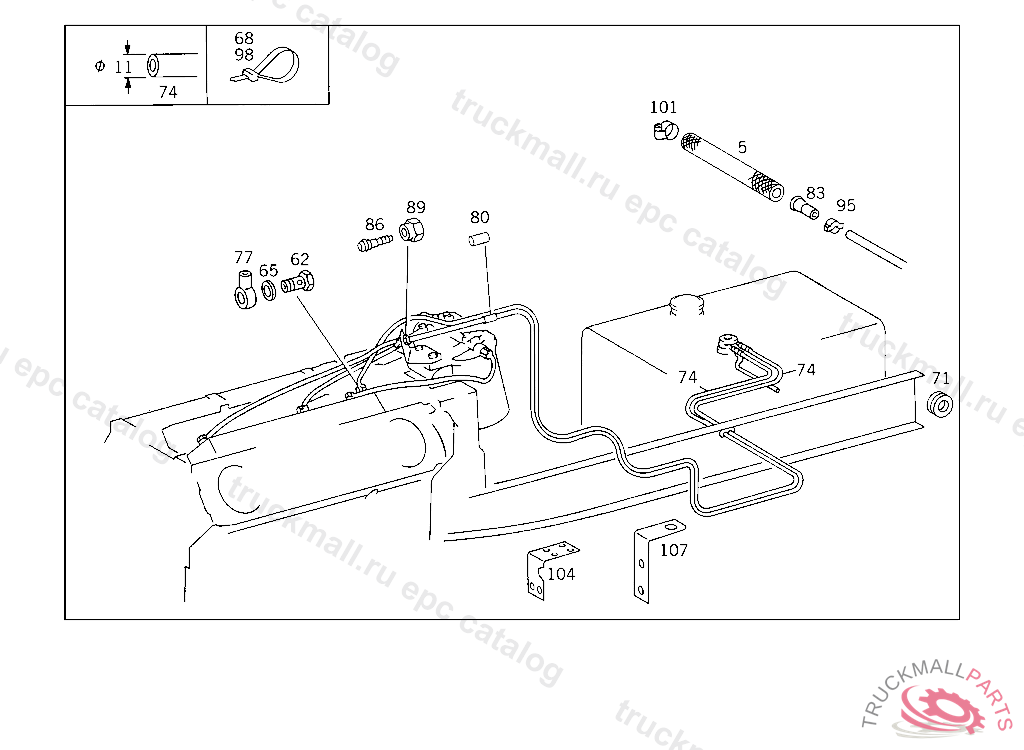

Поз.
Артикул
Описание
5
HOSE LEAK LINE
5
HOSE LEAK LINE
62
HOLLOW SCREW FUEL LINE TO FEED PUMP
62
HOLLOW SCREW , Replaced By: N915036010108
65
SEAL RINGTO 000 553 03 05,000 553 18 05,
68
LOOM TIE LINE MOUNTING
71
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
71
GROMMET AIR SPRING VALVE
74
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
77
BANJO UNION FEED
77
BANJO UNION , Replaced By: N000000000363
80
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
83
SLEEVE FEED
86
FITTING RETURN
89
NUT. UNION NUT RETURN
95
CLIP LEAK LINE
98
LOOM TIE LINE MOUNTING 280 MM
101
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
101
CLAMP , Replaced By: N000000000665
104
BRACKET AT ENGINE,REAR
107
BRACKET FUEL LINES TO TRANSMISSION
