Поз.
Артикул
Описание
5

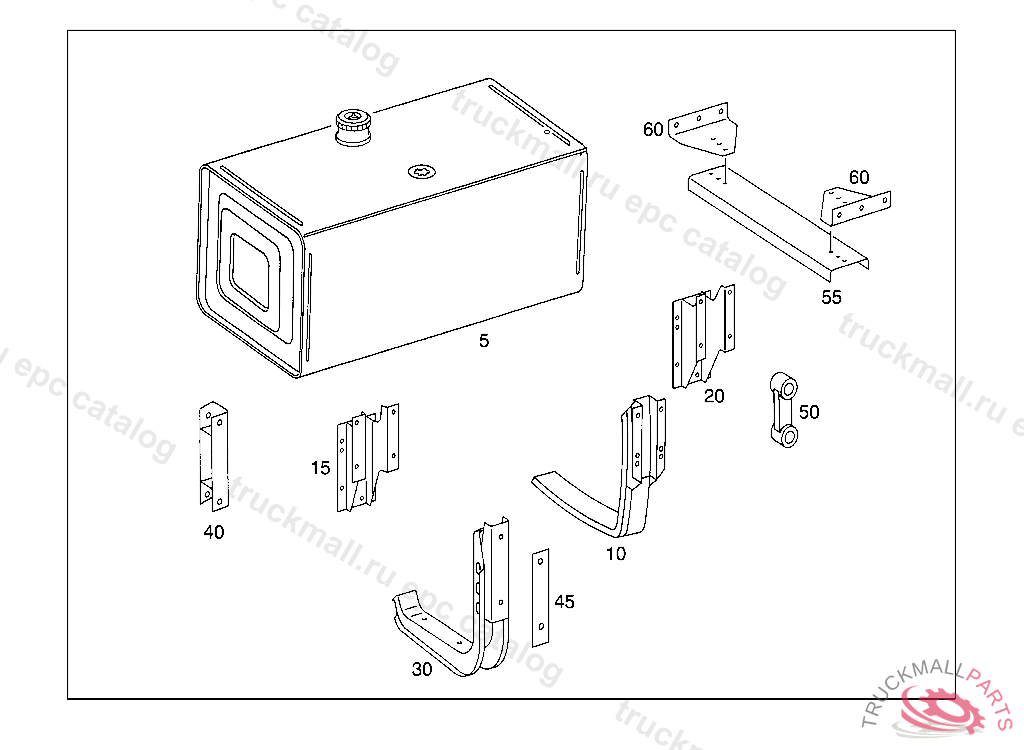

FUEL TANK400 L.,4 399369
10
SUPPORT FUEL TANK, UP TO 07.95
15
SUPPORT FRONT FUEL TANK
20
SUPPORT REAR FUEL TANK
30
SUPPORT FUEL TANK
30
SUPPORT REAR FUEL TANK
40
BRACKET APPARATUS SUPPORT,REAR
40
BRACKET APPARATUS SUPPORT,REAR
40
BRACKET APPARATUS SUPPORT,REAR
45
SHIM SUPPORT TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
45
SHIM FUEL TANK
45
SHIM SUPPORT TO SIDE MEMBER
45
SHIM APPARATUS SUPPORT TO FRAME
45
SHIM SUPPORT TO SIDE MEMBER
45
SHIM APPARATUS SUPPORT
45
SHIM FUEL TANK TO FRAME
50
SHIM APPARATUS SUPPORT, TO BE ADAPTED DURING ASSEMBLY
55
CROSS MEMBER CROSS MEMBER TO GUSSET PLATE
60
GUSSET PLATE CROSS MEMBER TO FRAME
999
BRACKET FRONT
