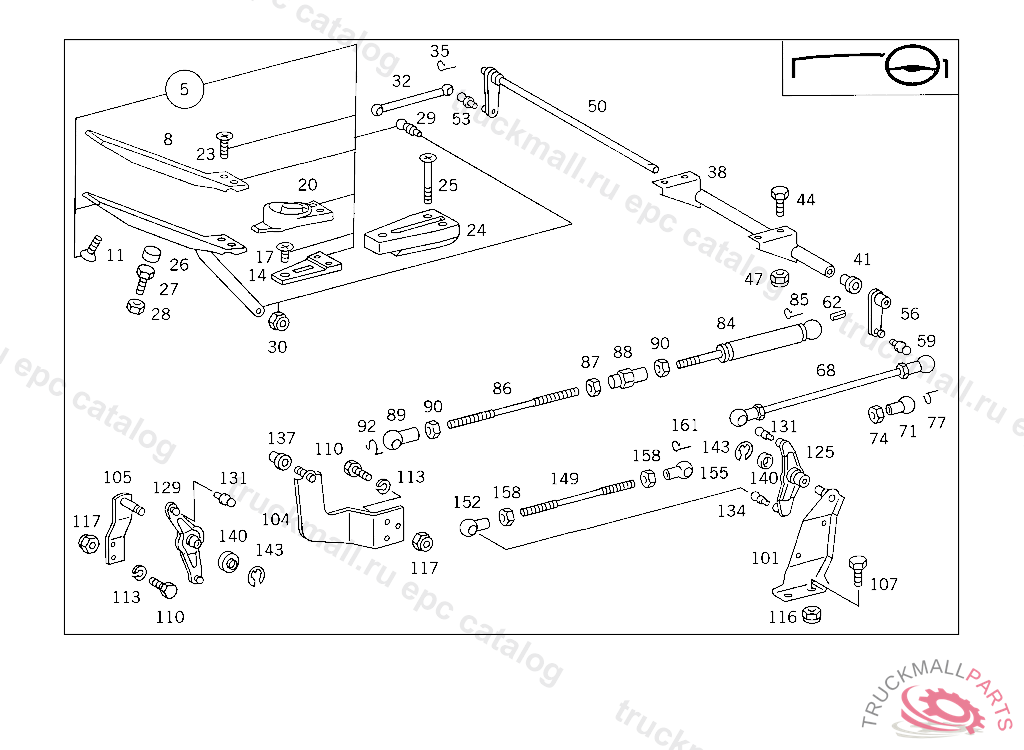

Поз.
Артикул
Описание
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
24
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
25
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
27
SCREW VALVE TO BRACKET
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
32
BALL SOCKET ROD TO ACCELERATOR PEDAL
35
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
38
BEARING TUBE CONTROL SHAFT
41
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT , Replaced By: N913004008001
47
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SHAFT (CONTROL SHAFT)
53
BALL PIVOT
56
LEVER (CONTROL LEVER)
59
BALL PIVOT
62
CLAMPING SLEEVE , Replaced By: N308752004001
62
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
68
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
68
ROD , Replaced By: A6523001315
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
104
BEARING BRACKET INTERMEDIATE BEARING,5 324164
104
BEARING BRACKET , Replaced By: A6583000036, +001A6583000228
107
SCREW BRACKET TO CROSS CONNECTION STRUT
110
SCREW SUPPORT TO FENDER
110
SCREW , Replaced By: N304017008018
113
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
129
LEVER (INTERMEDIATE LEVER)
129
LEVER INTERMEDIATE BEARING
131
BALL STUD. BALL PIVOT TOP B10X4,5 MM
134
BALL PIVOT BOTTOM B13X5 MM
137
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
149
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
152
BALL SOCKET ROD TO BALL PIVOT
155
BALL SOCKET ROD TO BALL PIVOT
158
NUT
161
SECURING CLIP. CIRCLIP
