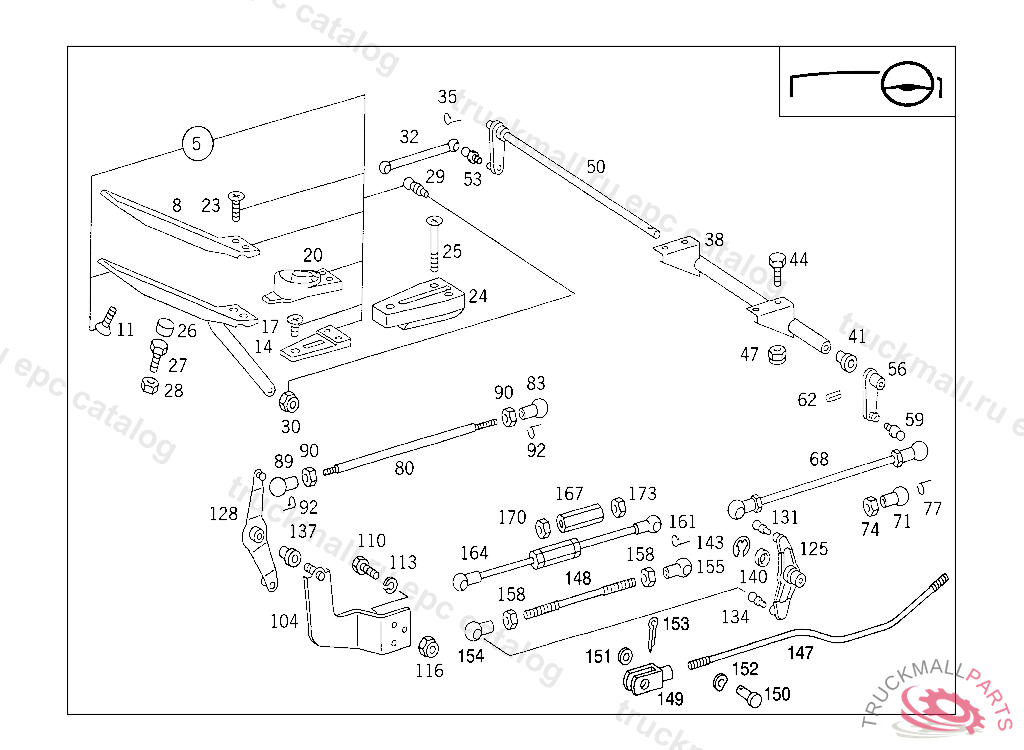

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
24
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
25
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT , Replaced By: N913004006001
30
NUT PUMP TO BRACKET
32
BALL SOCKET ROD TO ACCELERATOR PEDAL
35
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
38
BEARING TUBE CONTROL SHAFT
41
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT , Replaced By: N913004008001
47
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SHAFT (CONTROL SHAFT)
53
BALL PIVOT
56
LEVER (CONTROL LEVER)
59
BALL PIVOT
62
CLAMPING SLEEVE , Replaced By: N308752004001
62
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
80
ROD LOAD SENSOR CONTROL
80
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
83
BALL SOCKET PULL ROD TO LEVER
89
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
90
NUT BALL PIVOT TO LEVER
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
104
BEARING BRACKET INTERMEDIATE BEARING,5 324164
104
BEARING BRACKET , Replaced By: A6583000036, +001A6583000228
110
SCREW BRACKET TO CROSS CONNECTION STRUT
113
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
128
LEVER (INTERMEDIATE LEVER)
128
LEVER INTERMEDIATE BEARING
131
SCREW , Replaced By: N304017008034
131
SCREW BRACKET TO CROSS CONNECTION STRUT
134
BALL PIVOT BOTTOM B13X5 MM
137
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
140
COVERING INTERMEDIATE BEARING
143
LOCK PLATE INTERMEDIATE BEARING
148
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
154
BALL SOCKET ROD TO BALL PIVOT
155
BALL SOCKET ROD TO BALL PIVOT
158
NUT
161
SECURING CLIP. CIRCLIP
164
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
167
NUT TURNBUCKLE
170
NUT
173
NUT BALL SOCKET TO ROD
