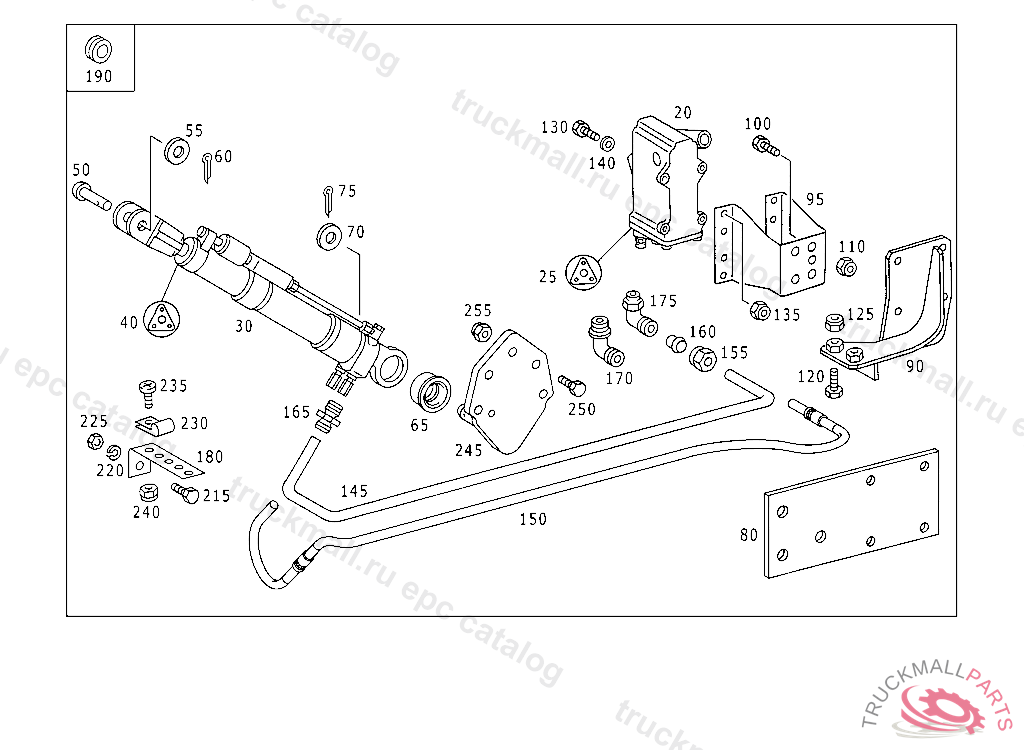

Поз.
Артикул
Описание
20
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
25
GASKET KIT HAND PUMP
30
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
30
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
30
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING
30
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
30
CYLINDER , Replaced By: A0015534305
40
GASKET KIT , Replaced By: A0015535005
40
GASKET KIT HYDRAULIC CYLINDER WEBER
40
GASKET KIT HYDRAULIC CYLINDER POWER PACK
40
GASKET KIT HYDRAULIC CYLINDER
50
PIN HYDRAULIC CYLINDER TO SWIVEL ARM
55
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
60
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
65
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
70
WASHER HYDRAULIC CYLINDER TO CAB
75
COTTER PIN6,3X36 MM
80
BRACKET HAND PUMP
90
BRACKET AIR CLEANER SUPPORT
90
BRACKET HAND PUMP
95
BRACKET HAND PUMP
100
SCREW BRACKET TO SIDE MEMBER
100
SCREW APPARATUS SUPPORT TO FRAME
100
SCREW , Replaced By: N304017010002
100
SCREW , Replaced By: A9429901304
110
NUT , Replaced By: N910113014000
110
NUT STEERING SUPPORT TO FRAME
120
SCREW SUPPORT TO FENDER
120
SCREW , Replaced By: N304017008018
125
NUT , Replaced By: N913004008001
125
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
130
SCREW HAND PUMP TO BRACKET
135
NUT STRAP TO BRACKET
140
WASHER RADIATOR TO RUBBER MOUNTING
145
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
145
LINE , Replaced By: A0004290001
145
LINE , Replaced By: A0004290001
150
HOSE , Replaced By: A6555530582
150
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
155
UNION NUT
160
GLAND , Replaced By: A0019901667
160
SEAL CONE
165
CONNECTION FITTING , Replaced By: A0039979172
165
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
170
FITTING OIL LINE CONNECTION
175
FITTING FROM PUMP TO CYLINDER
175
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
175
FITTING , Replaced By: A0019909871
180
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
190
GROMMET FOR PASSAGE OF LINE
215
SCREW , Replaced By: N304017008034
215
SCREW BRACKET TO CROSS CONNECTION STRUT
220
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
225
NUT , Replaced By: N304032008006
225
NUT
230
CLAMP LINE MOUNTING
235
SCREW BRACKET ON LOAD SENSOR
235
SCREW OIL DELIVERY LINE TO BRACKET
240
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
245
BEARING BRACKET HYDRAULIC CYLINDER
245
BEARING BRACKET HYDRAULIC CYLINDER
245
BRACKET HYDRAULIC CYLINDER, TO BE ADAPTED DURING ASSEMBLY
245
BRACKET HYDRAULIC CYLINDER
245
BRACKET , Replaced By: A6995502640
245
BRACKET , Replaced By: A6995502740
250
SCREW , Replaced By: N308676016004
250
SCREW , Replaced By: N308676016006
250
SCREW , Replaced By: N308676016020
250
SCREW BEARING BRACKET TO FRAME
250
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
250
SCREW CONSOLE TO FRAME
250
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
250
SCREW BRACKET TO FRAME M 16X1.5X45
255
NUT COMBINATION CYLINDER TO BEARING BRACKET
255
NUT CONSOLE TO SUPPORT
255
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
255
NUT , Replaced By: N910113016001
