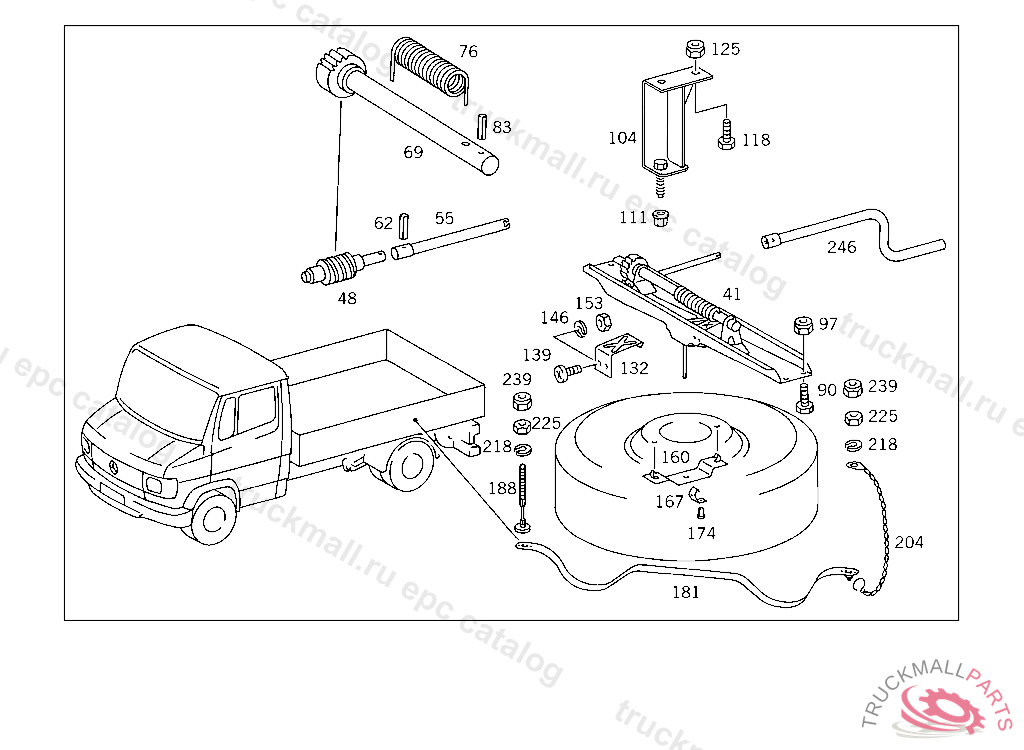

Поз.
Артикул
Описание
41
SPARE WHEEL HOIST , 841891 N 000000 P 000000
41
SPARE WHEEL HOIST , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6674000239, +001A6674030238
48
WORM
55
SHAFT , Replaced By: A6674030238
55
SHAFT , 841891 N 000000 P 000000 TO BE ADAPTED DURING ASSEMBLY
62
CLAMPING SLEEVE CRANK TO BUSHING
69
STOP GEAR SPARE WHEEL HOIST, 841891 N 000000 P 000000
76
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
76
WIRE CABLE
83
CLAMPING SLEEVE SHIFTING FORK TO SHIFTING SHAFT
90
SCREW STRUT TO CROSS MEMBER M 10X25
97
NUT CROSS MEMBER TO SIDE MEMBERS
104
BRACKET SPARE WHEEL MOUNTING
104
PIN , 749454 N 000000 P 000000, Replaced By: A6674000939, +002N000933010129, +002N913004010008
104
BRACKET , Replaced By: A6674001139
104
BRACKET MOUNTING BRACKET TO FRAME
111
NUT BRACKET, 841892 N 000001 P 000001
111
NUT BRACKET TO FRAME
118
HEXAGON HEAD BOLT BRACKET TO BRACKET
125
NUT CROSS MEMBER TO SIDE MEMBERS
132
LOCK SPARE WHEEL HOIST
139
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
146
LOCK WASHER STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET
153
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
160
BRACKET SPARE WHEEL, 841891 P 000000 N 000000
167
SPRING , 841891 P 000000 N 000000
174
RIVET SPRING TO BRACKET
181
CLAMPING BRACKET BENT, 749455-841891 N 000000 P 000000
181
CLAMPING BRACKET STRAIGHT, 749455 - 841891 P 000001 N 000001
181
CLAMPING BRACKET , 749454 P 000000 N 000000, Replaced By: A6674030195, +001A3094000472
188
WIRE CABLE BRACKET TO FRAME SIDE MEMBER,FRONT, 749455-841891 N 000000 P 000000
204
CHAIN , 749455 N 000001 P 000001
218
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
225
NUT
239
NUT CROSS MEMBER TO SIDE MEMBERS
246
CRANK SPARE WHEEL HOIST,841892 N 000001 P 000001
