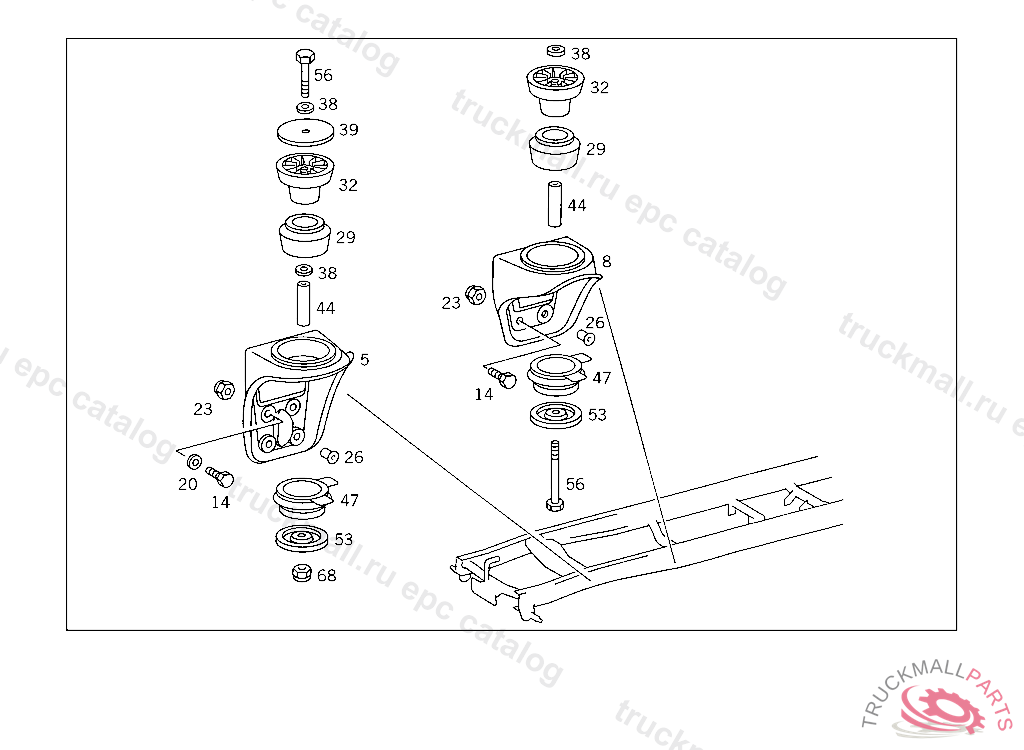

Поз.
Артикул
Описание
5
CONSOLE FRONT
8
CONSOLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 862882, Replaced By: A6883107051
14
HEXAGON HEAD BOLT BRACKET TO BRACKET
20
WASHER CONSOLE TO FRAME
20
WASHER STRUT TO CROSS MEMBER
23
NUT CROSS MEMBER TO SIDE MEMBERS
26
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
26
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
29
RUBBER BUFFER CAB TO FRONT CONSOLE
32
COVER , Replaced By: A6883177055
32
COVER CAB SUSPENSION, N 000001 P 018795
38
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
38
WASHER , Replaced By: A4039900040
39
WASHER BODY MOUNTING,027801
44
SPACER TUBE CAB TO FRONT CONSOLE
47
STOP CAB TO FRONT CONSOLE
47
STOP DOUBLE CAB SUSPENSION
53
WASHER , Replaced By: A6883177076
56
SCREW CAB WITH CAB SUSPENSION TO CONSOLE
68
NUT , Replaced By: N304032010002
68
NUT
