Поз.
Артикул
Описание

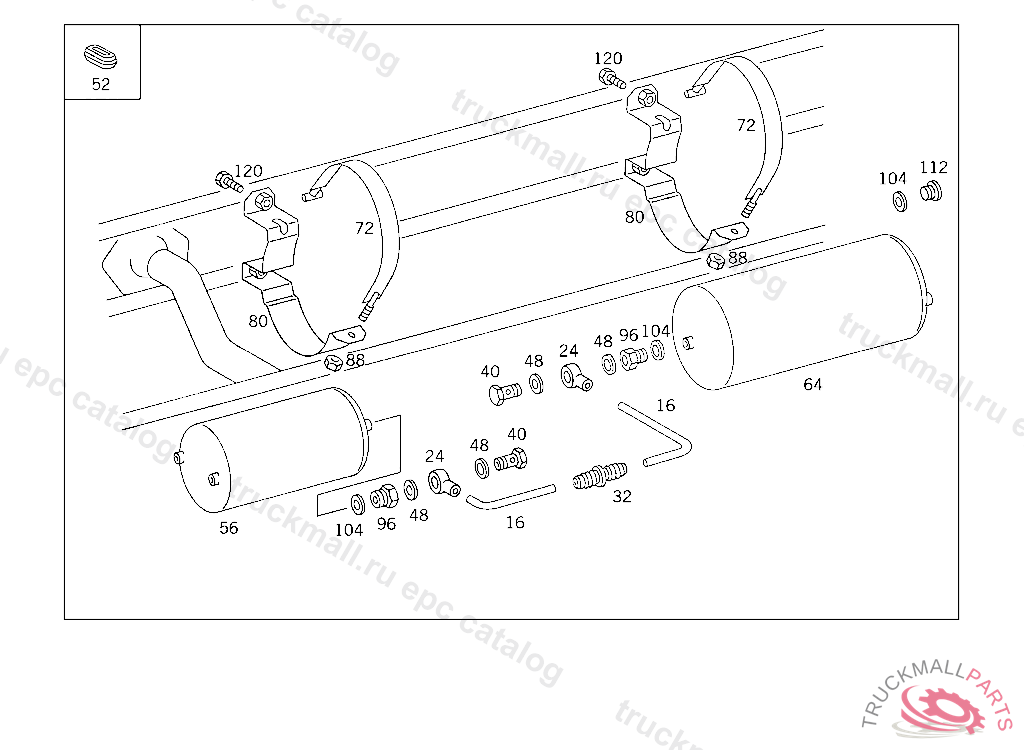

16
HOSE FEED LINE AND RETURN LINE 10,5X13 MM, ORDER BY THE METER
16
HOSE. PLASTIC PIPE , Replaced By: A0139971282
24
BANJO UNION FEED LINE,K 169122
32
THROTTLE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER
40
HOLLOW SCREW , Replaced By: N915036010108
40
HOLLOW SCREW FUEL LINE TO FEED PUMP
48
SEAL RINGTO 000 553 03 05,000 553 18 05,
52
RUBBER MOUNTING RADIATOR TO CENTRAL STIFFENING
56
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
56
RESERVOIR10L,206 MM,8.5 BAR
64
RESERVOIR20L,246 MM,12.5 BAR
64
RESERVOIR , Replaced By: A0034321201
72
STRAP , Replaced By: A3714300040
72
STRAP AIR RESERVOIR TO BRACKET
80
BRACKET AIR RESERVOIR
88
NUT
96
FITTING TWO-WAY VALVE "12",4 4121264 691315
104
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
112
SCREW PLUG , Replaced By: N000908022011
112
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
120
SCREW STRUT TO CROSS MEMBER M 10X25
