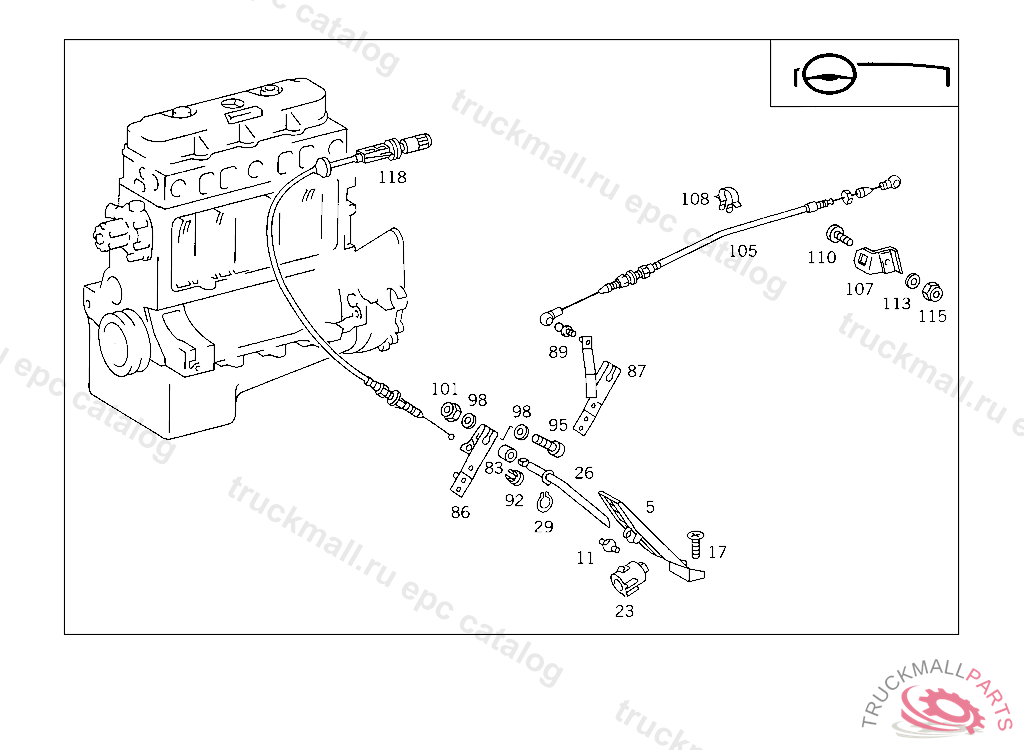

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL ,B 859430
11
JOINT
17
SCREW BRACKET TO TAIL LAMP BRACKET
17
SCREW
23
STOP FULL THROTTLE
26
LEVER , Replaced By: A3843007625
29
RETAINING RING CONTROL SHAFT TO CAB,5 188249
83
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
86
LEVER ,B 892892
87
LEVER (CONTROL LEVER)
89
BALL PIVOT
89
BALL STUD. BALL PIVOT ROD TO LEVER
92
BUSHING CONTROL LEVER,B 892892
95
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
98
WASHER SWITCH TO FIRE WALL
101
NUT HEATING PIPE TO BRACKET
105
WIRE CABLE ACCELERATOR CONTROL
107
BRACKET
108
CLAMP BOWDEN CABLE TO CAB
110
SCREW CLAMP MOUNTING M 6X16
110
SCREW , Replaced By: N000000001146
113
WASHER SWITCH TO FIRE WALL
115
NUT HEATING PIPE TO BRACKET
118
WIRE CABLE IDLING ADJUSTER, 962132 N 000000 P 000000
118
WIRE CABLE IDLING ADJUSTER, 962132 N 000000 P 000000
118
WIRE CABLE IDLING ADJUSTER,037272
999
WASHER WIRE CABLE TO FIRE WALL
