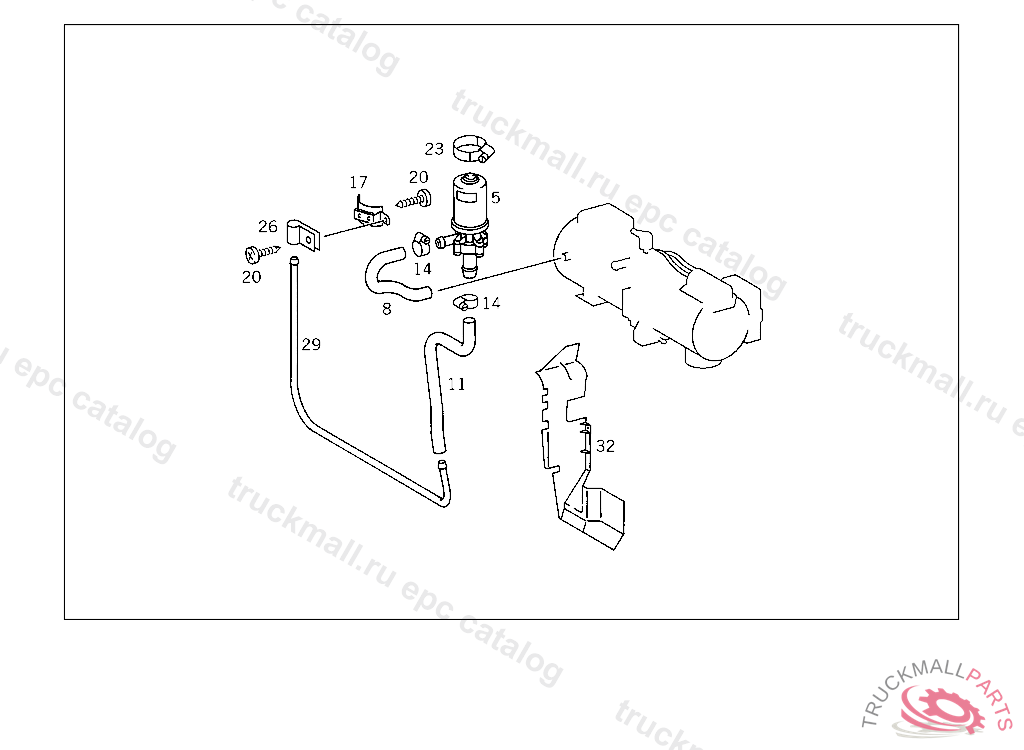

Поз.
Артикул
Описание
5
PUMP , Replaced By: A0005062999
5
MOTOR. RECIRCULATING PUMP
8
HOSE (HEATING LINE),FROM ENGINE TO HEATER
11
HOSE (HEATING LINE),FROM ENGINE TO HEATER
14
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
14
CLAMP , Replaced By: N000000000667
17
BRACKET COOLING WATER LINE TO FIRE WALL
20
SHEET METAL SCREW BRACKET TO CAB
20
SHEET METAL SCREW COVER PLATE TO COVER PLATE
23
CLAMP , Replaced By: N000000000672
23
CLAMP HOSE FASTENING 50-70X13 MM
26
CLAMP FEED LINE TO THERMOSTAT
29
PIPE LINES TO BRACKET
32
SCREENING , Replaced By: A6738360033
32
SCREENING LINES TO BRACKET
999
ADHESIVE TAPE , Replaced By: A0039898585
999
ADHESIVE TAPE ELECTRIC CABLE
999
ADHESIVE TAPE PIPING
999
BRACKET COOLING WATER LINE TO FIRE WALL
