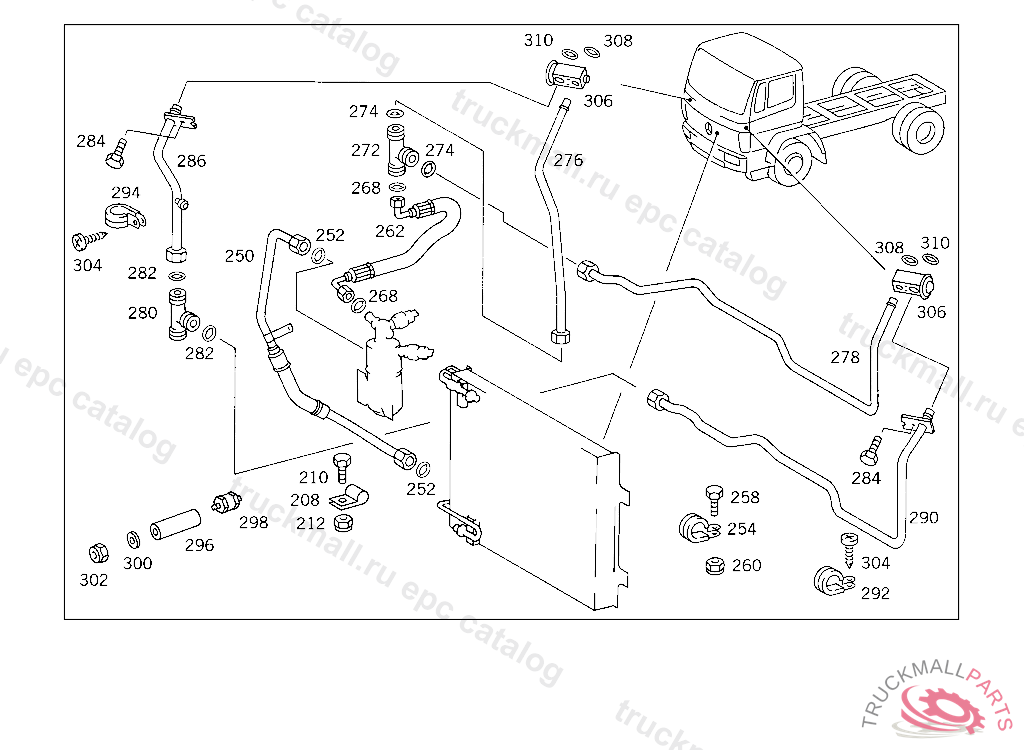

Поз.
Артикул
Описание
208
BRACKET RADIATOR
210
BRACKET RADIATOR
212
ANTINOISE CAPSULE , Replaced By: A6765200022
212
COVERING RADIATOR
250
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 954699
250
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 954699
250
PIPE LINE FROM CONDENSER TO LIQUID TANK
250
PIPE LINE FROM CONDENSER TO LIQUID TANK
250
PIPE LINE FROM CONDENSER TO LIQUID TANK
250
PIPE LINE , Replaced By: A6738306615
250
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 526948
252
SEAL RING FROM LIQUID TANK TO T-FITTING
252
SEAL RING HOSE TO RESERVOIR 10.6 MM
254
CLAMP LINE MOUNTING
254
CLAMP LINE MOUNTING
254
CLAMP BRAKE HOSE BRACKET
254
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
258
SCREW COVER PLATE TO BRACKET
258
SCREW COVER PLATE TO BRACKET
260
NUT PUMP TO BRACKET
260
NUT , Replaced By: N913004006001
262
HOSE FROM LIQUID TANK TO T-FITTING
262
HOSE FROM LIQUID TANK TO T-FITTING
262
HOSE FROM LIQUID TANK TO T-FITTING
262
HOSE FROM LIQUID TANK TO T-FITTING,5 954699
262
HOSE FROM LIQUID TANK TO T-FITTING,5 954699
262
HOSE FROM LIQUID TANK TO T-FITTING
268
SEAL RING , Replaced By: A1249970345
268
SEAL RING , Replaced By: A1409970645
268
SEAL RING HOSE TO RESERVOIR 10.6 MM
268
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
268
SEAL RING FROM LIQUID TANK TO T-FITTING
272
T-FITTING , Replaced By: A6739900670
272
T-FITTING DELIVERY LINE TO VALVE
274
SEAL RING , Replaced By: A1409970645
274
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
274
SEAL RING , Replaced By: A1249970345
276
PIPE LINE DELIVERY LINE TO VALVE,5 954699
276
PIPE LINE DELIVERY LINE TO VALVE,5 954699
276
PIPE LINE DELIVERY LINE TO VALVE,5 954700
276
PIPE LINE DELIVERY LINE TO VALVE,5 954700
276
PIPE LINE DELIVERY LINE TO VALVE,5 954700
278
PIPE LINE DELIVERY LINE TO VALVE,5 954699
278
PIPE LINE DELIVERY LINE TO VALVE,5 954699
278
PIPE LINE DELIVERY LINE TO VALVE,5 954700
278
PIPE LINE DELIVERY LINE TO VALVE,5 954700
278
PIPE LINE DELIVERY LINE TO VALVE,5 954700
280
T-FITTING SUCTION LINE TO VALVE
280
T-FITTING SUCTION LINE TO VALVE
282
SEAL RING HOSE TO RESERVOIR 10.6 MM
282
SEAL RING , Replaced By: A1249970345
282
O-RING HOSE TO EXPANSION VALVE 17X2
282
SEAL RING , Replaced By: A1409970945
284
SCREW COVER PLATE TO COVER PLATE M 6 X 12
284
SCREW , Replaced By: N304017006018
286
PIPE LINE SUCTION LINE TO VALVE,5 954699
286
PIPE LINE SUCTION LINE TO VALVE,5 954699
286
PIPE LINE SUCTION LINE TO VALVE
286
PIPE LINE SUCTION LINE TO VALVE
286
PIPE LINE SUCTION LINE TO VALVE
286
PIPE LINE , Replaced By: A6738305615
290
PIPE LINE SUCTION LINE TO VALVE
290
PIPE LINE SUCTION LINE TO VALVE
290
PIPE LINE SUCTION LINE TO VALVE
290
PIPE LINE SUCTION LINE TO VALVE,5 954699
290
PIPE LINE SUCTION LINE TO VALVE,5 954699
292
CLAMP BRAKE HOSE BRACKET
294
CLAMP , Replaced By: N916016010211
294
CLAMP CABLE HARNESS MOUNTING
294
CLAMP , Replaced By: N000000001045
296
SPACER TUBE REFRIGERANT LINE TO CAB
298
BUFFER REFRIGERANT LINE TO CAB
300
WASHER , Replaced By: N009021008213
300
WASHER BRACKET TO LEFT SIDE MEMBER
302
NUT , Replaced By: N913004008001
302
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
304
SHEET METAL SCREW BOOT TO CAB FLOOR
304
SHEET METAL SCREW COVER PLATE TO COVER PLATE
304
SHEET METAL SCREW REFRIGERANT LINE TO CAB
304
SHEET METAL SCREW , Replaced By: N007981005321
304
SHEET METAL SCREW REFRIGERANT LINE TO CAB
304
SHEET METAL SCREW REFRIGERANT LINE TO CAB
306
VALVE , Replaced By: A0018300184
306
VALVE (EXPANSION VALVE)
306
VALVE , Replaced By: A0018304784
308
SEAL RING , Replaced By: A1409970845
308
SEAL RING , Replaced By: A1249970545
308
SEAL RING HOSE TO CONDENSER 14 MM
310
SEAL RING , Replaced By: A1409970945
310
O-RING HOSE TO EXPANSION VALVE 17X2
310
SEAL RING , Replaced By: A1249970345
999
VALVE
999
BRACKET RIGHT FRONT
999
BRACKET LIQUID TANK, FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 5 526949 - 5 564192
999
BRACKET REFRIGERANT LINE TO T-FITTING
999
BRACKET AT BRACKET
999
HOSE REFRIGERANT LINE TO T-FITTING,5 954699
