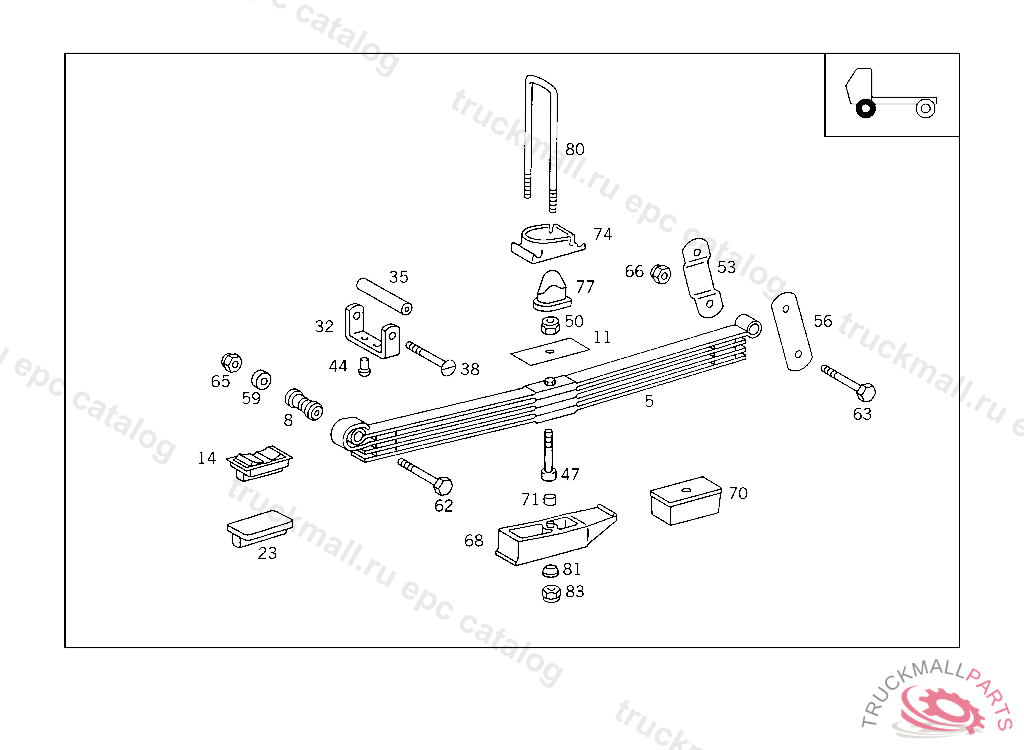

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "2"
8
BUSHING
11
SHIM , Replaced By: A9703210184
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
RUBBER BUFFER BETWEEN THE SPRING EYES
23
SHIM BETWEEN THE SPRING LEAVES
32
SPRING CLAMP FRONT SPRING,5 533058 TO BE ADAPTED DURING ASSEMBLY
35
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
38
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
44
RIVET SPRING CLAMP TO SPRING LEAF
47
SPRING BOLT
50
NUT , Replaced By: N910113012005
50
HEXAGON NUT. NUT SPRING BOLT
53
SHACKLE INSIDE,FRONT SPRING TO SPRING REAR BRACKET
56
SHACKLE OUTSIDE,FRONT SPRING TO SPRING REAR BRACKET
59
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 358488
62
HEXAGON HEAD BOLT. SCREW TORSION BAR TO BRACKET
62
SCREW SPACER TUBE TO MOUNTING
62
SCREW , Replaced By: N308765016004
65
NUT , Replaced By: N910113016001
65
NUT CONSOLE TO SUPPORT
68
SHIM FRONT SPRING TO FRONT AXLE,LEFT
68
SHIM FRONT SPRING TO FRONT AXLE,RIGHT,5 256347
71
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
71
CENTERING BOLT (CENTERING CONE),5 361887
74
PLATE FRONT SPRINGS TO FRONT AXLE
77
HELPER SPRING FRONT SPRING STOP
80
U-BOLT FRONT SPRING TO FRONT AXLE,REAR 180 MM
80
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT LEFT 220 MM
80
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
83
NUT FRONT SPRINGS TO FRONT AXLE
