Поз.
Артикул
Описание

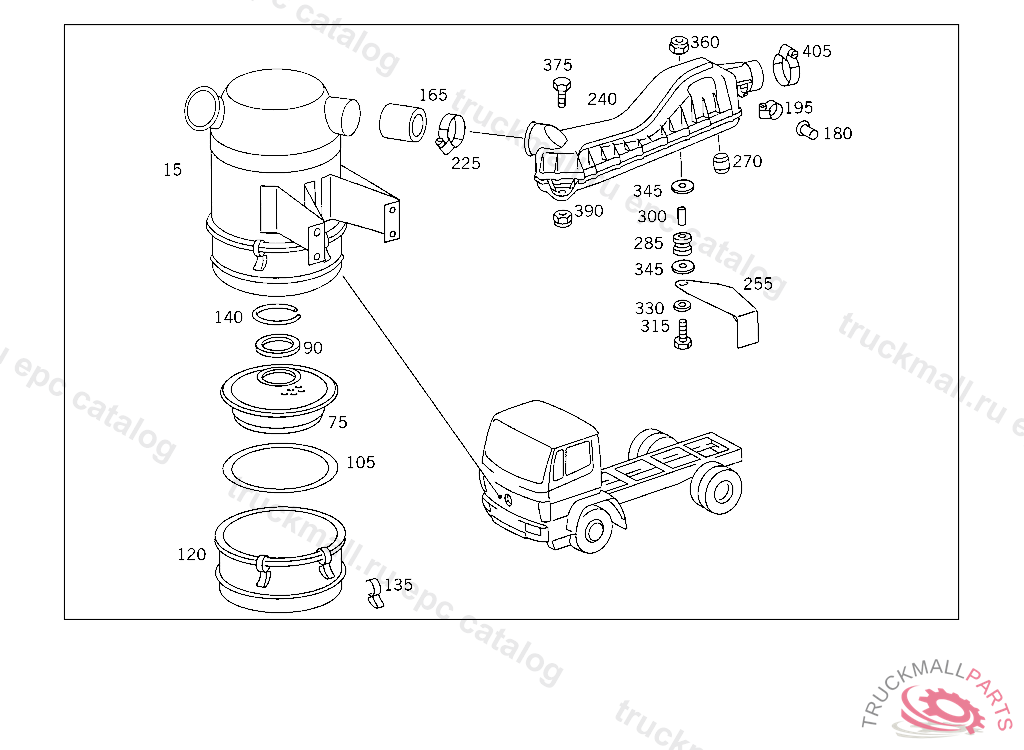

15
AIR CLEANER OIL BATH MANN & HUMMEL
15
AIR CLEANER OIL BATH MANN & HUMMEL
15
AIR CLEANER OIL BATH MANN & HUMMEL
75
ELEMENT
75
FILTER ELEMENT
75
FILTER ELEMENTMANN & HUMMEL
75
FILTER ELEMENT
90
GASKET INSIDE
90
GASKET INSIDE MANN & HUMMEL
90
GASKET INSIDE
90
GASKET INSIDE
105
GASKET OUTSIDE
105
GASKET OUTSIDE
105
GASKET OUTSIDE
105
GASKET OUTSIDE MANN & HUMMEL
120
FILTER BOWL
120
FILTER BOWL
120
FILTER BOWL
120
FILTER BOWLMANN & HUMMEL
135
FASTENER
140
SNAP RING
140
SNAP RING DIA., 128 MM
165
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
180
CAP INTAKE MUFFLER FITTING
195
LOOM TIE LINE MOUNTING 280 MM
225
CLAMP , Replaced By: A0059970690
225
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
240
MUFFLER (INTAKE MUFFLER)
255
BRACKET INTAKE MUFFLER
255
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 494909, Replaced By: A6735282440
270
RUBBER MOUNTING BRACKET TO BEARING BRACKET
285
RUBBER MOUNTING INTAKE MUFFLER TO BRACKET
300
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
315
SCREW BRACKET TO SIDE MEMBER
315
SCREW , Replaced By: N304017008040
330
WASHER , Replaced By: N000125008443
330
WASHER EXHAUST MUFFLER TO STRAP
345
RETAINER INTAKE MUFFLER TO BRACKET
360
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
360
NUT , Replaced By: N913004008001
375
SCREW EXHAUST PIPE TO BRACKET
390
NUT STRAP TO BRACKET
390
NUT , Replaced By: N910113010000
405
CLAMP , Replaced By: A0059972990
405
CLAMP , Replaced By: N000000000675
405
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
999
SEPARATOR
999
AIR CLEANER (PAPER AIR CLEANER) MANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL,5 1296945 462572
999
AIR CLEANERMANN & HUMMEL,5 462572
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER OIL BATH MANN & HUMMEL
999
SUPPORT ,5 4625735 505597, Replaced By: A6735201833, +003N000933010128
999
BRACKET ,5 451580
999
AIR INTAKE PIPE
999
SUPPORT
999
BRACKET AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE,5 4252335 424630
999
HOSE ,5 451580
999
SUPPORT AIR INTAKE,5 1296945 462572
999
HOSE FROM MUFFLER TO ENGINE
999
HOSE , Replaced By: N900271100009
999
HOSE , Replaced By: A6735281282, +001A0019880735, +002A0019978390
999
HOSE FROM SUPPORT TO PAPER AIR CLEANER
999
BRACKET AIR INTAKE PIPE
999
HOSE TO OIL BATH AIR CLEANER
999
AIR INTAKE PIPE
999
BRACKET RIGHT FENDER
999
BRACKET AIR INTAKE PIPE
999
HOSE
999
WASHER , Replaced By: N000125008443
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: N304017008021
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SCREW , Replaced By: N308676012012
999
SCREW , Replaced By: N308676016020
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW PIPE CLAMP
999
NUT
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW CONSOLE TO FRAME
999
HOSE TO OIL BATH AIR CLEANER
999
NUT SUPPORT TO SIDE MEMBER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
NUT , Replaced By: N913004008001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
PLUG
999
STOP PLUG. PLUG IN PLACE OF LOCK
