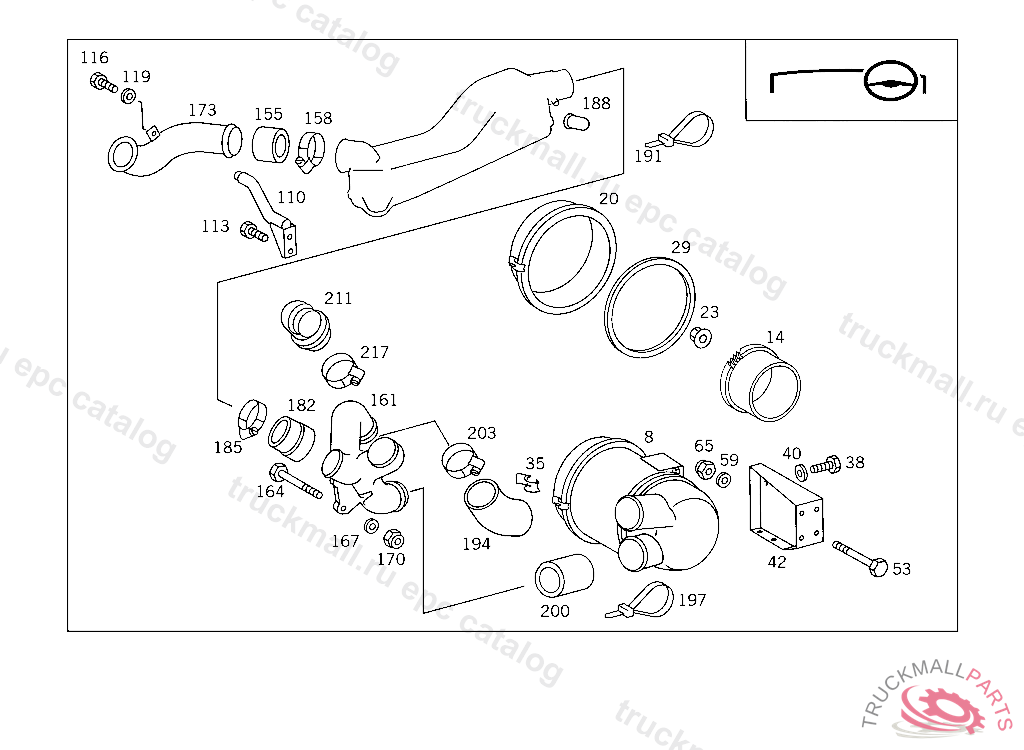

Поз.
Артикул
Описание
8
AIR CLEANER
14
AIR BAFFLE AIR CLEANER
20
FILTER BOWL LOWER PART
23
NUT
29
GASKET AIR CLEANER BOWL
35
FASTENER
38
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
40
WASHER RADIATOR TO RUBBER MOUNTING
40
WASHER , Replaced By: N000125010532
42
SUPPORT
53
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
59
WASHER
65
NUT SUPPORT TO SIDE MEMBER
110
BRACKET AIR INTAKE PIPE
113
SCREW , Replaced By: N304017008016
113
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
116
SCREW CLAMP TO BRACKET AND TO PIPE
119
WASHER , Replaced By: N000125008443
119
WASHER EXHAUST MUFFLER TO STRAP
155
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
158
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
161
SUPPORT (PAPER AIR CLEANER)
164
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
164
SCREW CONSOLE TO SIDE MEMBER
164
SCREW , Replaced By: N308676012011
167
WASHER BRACKET TO FRAME
170
NUT SUPPORT TO SIDE MEMBER
173
AIR INTAKE PIPE
182
HOSE FROM MUFFLER TO SUPPORT
185
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
188
CAP INTAKE MUFFLER FITTING
191
LOOM TIE LINE MOUNTING 280 MM
194
HOSE FROM SUPPORT TO PAPER AIR CLEANER
197
LOOM TIE LINE MOUNTING 280 MM
200
HOSE LEAK LINE, ORDER BY THE METER
203
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
203
CLAMP , Replaced By: A0059971490
203
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
211
HOSE FROM MUFFLER TO ENGINE
217
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
