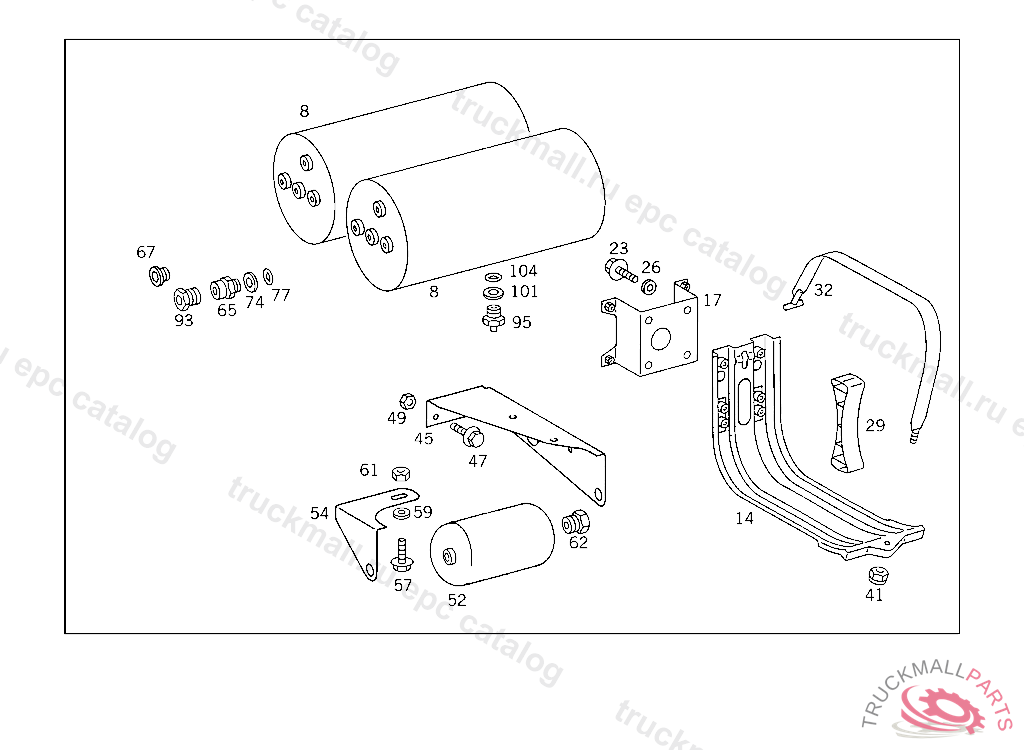

Поз.
Артикул
Описание
8
RESERVOIR COMPRESSED AIR 30 L, TO VOSS 232,5 9363665 812731 FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
8
RESERVOIR , Replaced By: A0054322201, +002A0009870446, +002A0009940203, +002A0049978272
14
CONSOLE AIR RESERVOIR TO FRAME
23
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
23
SCREW EXHAUST PIPE TO BRACKET
26
WASHER BRACKET TO SIDE MEMBER
26
WASHER BRACKET TO FRAME
29
BASE AIR RESERVOIR TO CONSOLE
32
STRAP AIR RESERVOIR TO CONSOLE
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
NUT , Replaced By: N913023010002
45
BRACKET AIR RESERVOIR
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
47
SCREW , Replaced By: N910105010009
49
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
49
NUT , Replaced By: N913023010002
52
RESERVOIR COMPRESSED AIR 4 L,EURO,5 9363665 812731
54
BRACKET AIR RESERVOIR
57
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
57
SCREW , Replaced By: N910105010009
59
WASHER RADIATOR TO RUBBER MOUNTING
59
WASHER , Replaced By: N000125010532
61
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
61
NUT , Replaced By: N913023010002
62
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
65
FITTING LINE CONNECTION
67
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
67
SCREW PLUG , Replaced By: N000908022011
74
THRUST RING CHECK VALVE TO AIR RESERVOIR
74
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
77
O-RING CHECK VALVE TO AIR RESERVOIR
93
SCREW. UNION SCREW LINE CONNECTION
93
SCREW. UNION SCREW LINE CONNECTION
93
SCREW. UNION SCREW , Replaced By: A0009973734
95
VALVE DRAIN, Replaced By: A0004322107
95
VALVE. DRAIN VALVE DRAIN
95
VALVE. DRAIN VALVE DRAIN
95
VALVE DRAIN, Replaced By: A0004322107
95
VALVE DRAIN, Replaced By: A0004322407
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
