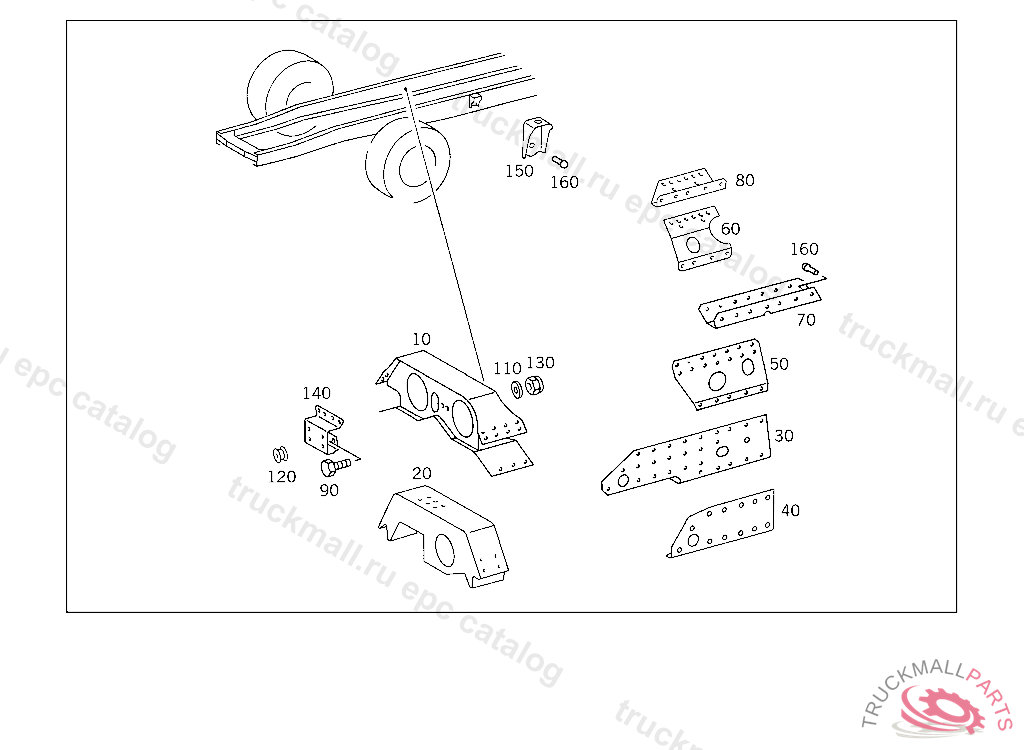

Поз.
Артикул
Описание
10
CROSS MEMBER TRANSMISSION NO.2
20
CROSS MEMBER TRANSMISSION
30
REINFORCEMENT RIGHT BOTTOM
30
REINFORCEMENT LEFT BOTTOM, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 567813
40
REINFORCEMENT , Replaced By: A6753112560
40
REINFORCEMENT , Replaced By: A6753112460
50
REINFORCEMENT RIGHT TOP
50
REINFORCEMENT LEFT TOP
60
REINFORCEMENT , Replaced By: A6763111560
60
REINFORCEMENT , Replaced By: A6763111460
70
ANGLE LEFT TOP
70
ANGLE RIGHT TOP, TO BE ADAPTED DURING ASSEMBLY
80
ANGLE LEFT
80
ANGLE RIGHT
90
SCREW EXHAUST PIPE TO BRACKET
90
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
90
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
90
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
110
WASHER BRACKET TO FRAME
120
GROMMET I.D., / O.D., 72/88 MM
130
NUT STRAP TO SUPPORT
130
NUT STRAP TO SUPPORT
140
BRACKET P.T.O.
140
BRACKET OIL LINES
150
CONSOLE BODY MOUNTING
160
RIVET REINFORCEMENT TO SIDE MEMBER
160
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
160
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
999
RUBBER MOUNTING FRONT TOP
999
RUBBER MOUNTING FRONT BOTTOM
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER
999
CROSS MEMBER TRANSMISSION NO.2, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
999
CROSS MEMBER
999
CROSS MEMBER
999
REINFORCEMENT LEFT AND RIGHT
