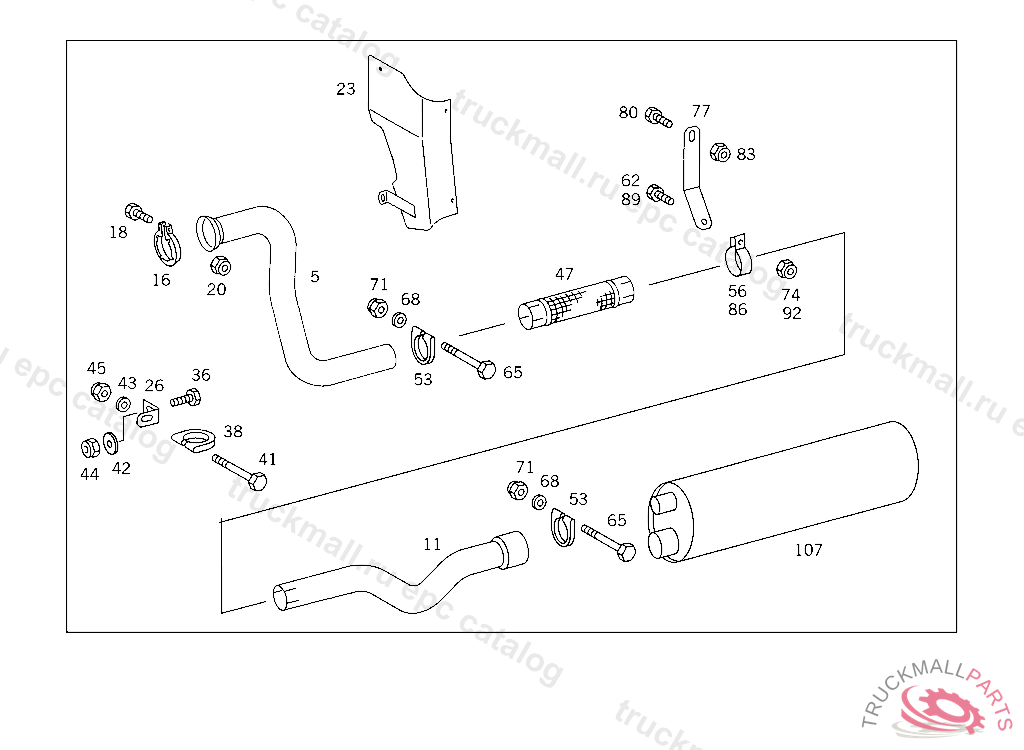

Поз.
Артикул
Описание
5
FRONT EXHAUST PIPE FRONT, FIRST PART
5
EXHAUST PIPE , Replaced By: A6734926101
11
FRONT EXHAUST PIPE FRONT,SECOND PART, RECOMMENDED FOR TAKING ON STOCK
16
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
18
SCREW BRACKET TO FRAME M 8X35
20
NUT BRACKET TO BRACKET
23
PROTECTIVE PLATE FRONT EXHAUST PIPE, RECOMMENDED FOR TAKING ON STOCK
26
BRACKET FRONT EXHAUST PIPE, RECOMMENDED FOR TAKING ON STOCK
36
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
38
CLAMP REAR EXHAUST PIPE TO MUFFLER
41
SCREW , Replaced By: N910143008014
41
HEXALOBULAR BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET M 8X120
42
WASHER , Replaced By: N009021008213
42
WASHER BRACKET TO LEFT SIDE MEMBER
42
WASHER BRACKET TO CAB REAR PANEL
43
WASHER , Replaced By: N006902011102
43
WASHER , Replaced By: N006902011100
43
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
44
NUT , Replaced By: N913023010002
44
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
45
NUT BRACKET TO BRACKET
47
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE
53
CLAMP EXHAUST PIPE TO MUFFLER
56
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
62
SCREW EXHAUST PIPE TO SIDE MEMBER
65
SCREW FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER
68
WASHER EXHAUST MUFFLER TO STRAP
68
WASHER , Replaced By: N000125008443
71
NUT BRACKET TO BRACKET
74
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
74
NUT , Replaced By: N913023010002
77
BRACKET EXHAUST PIPE TO CROSS MEMBER, RECOMMENDED FOR TAKING ON STOCK
80
SCREW EXHAUST PIPE TO SIDE MEMBER
83
NUT , Replaced By: N913023010002
83
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
86
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
89
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
89
SCREW , Replaced By: N910105010011
92
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
92
NUT , Replaced By: N913023010002
107
EXHAUST MUFFLER , NOT USED
